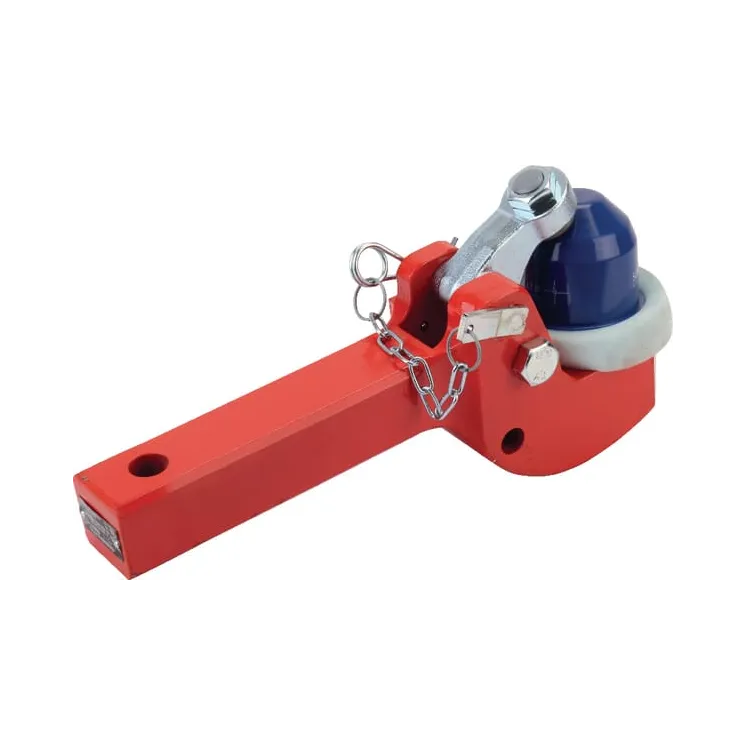

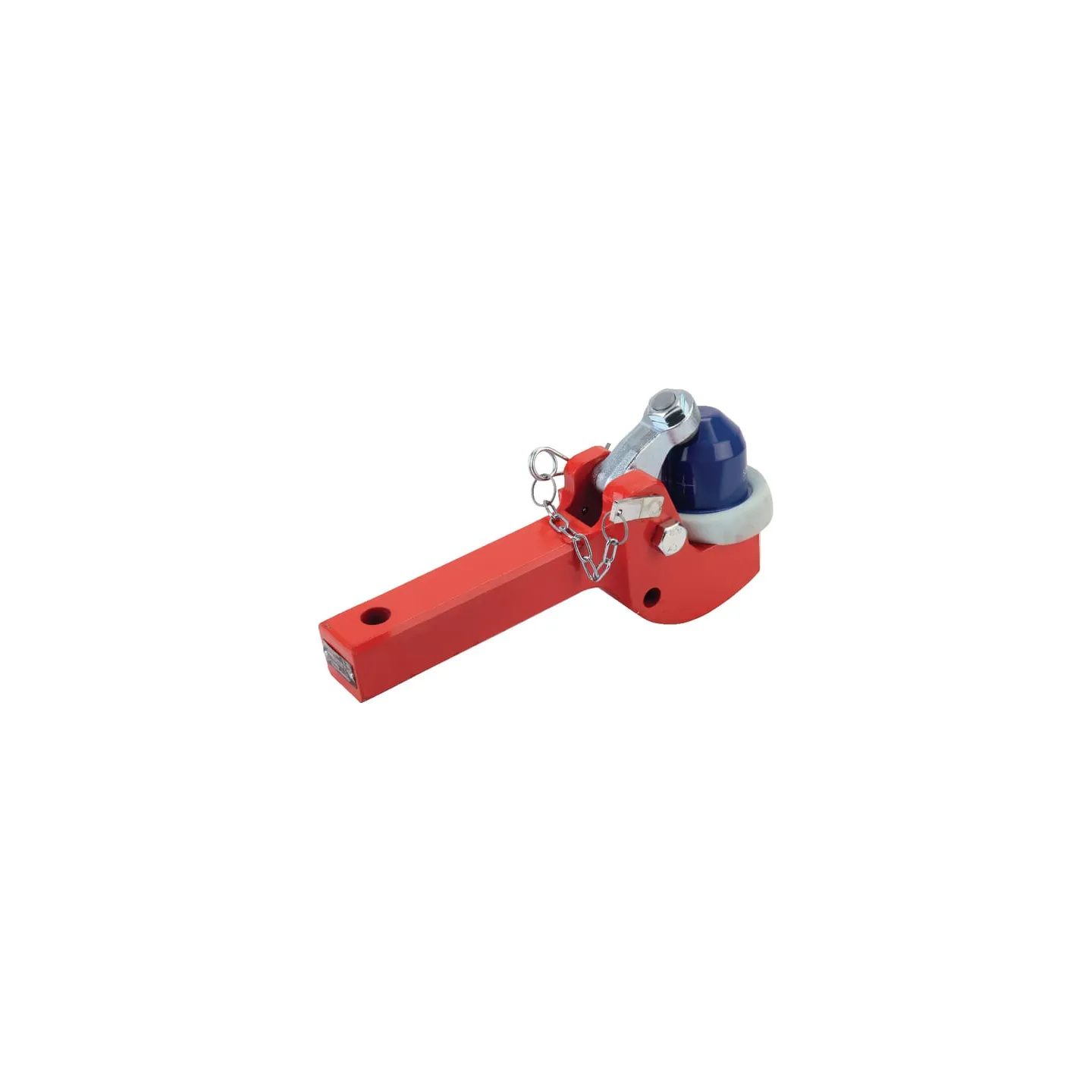

Hitch insert K80 00421122A20 00421121

Name: Hitch insert K80 00421122A20 00421121
Brand: Scharmüller
SKU: 00421122A20
Price: 1296.74 EUR
Availability: InStock

Payment options

€1,296.74

Tax included

4-5 Working days

Hitch insert K80 00421122A20 Scharmüller 00421121

IN WAREHOUSE

ID: 77776

Description

Part number	00421122A20
EAN
Unit	Each
Properties	K80 tow ball coupler system Tested to ISO 24347
Ball hook diameter	80 mm
Colour	Red
DCvalue	74 kN
Length	445 mm
Towing eye inside diameter (main hole)	25 mm
Max. vertical load	1500 kg
Mounting holes diameter	25 mm
Shaft width (diameter)	60 mm 60 mm
Suitable for machine/vehicle brand	Case IH
Suitable for machine/vehicle model	Case IH: Magnum 7100/7200 [7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250], Magnum MX [180, 200, 220, 240, 270], Magnum MX (II) [210, 230, 255, 285, 305], Maxxum MX [100, 110, 120, 135, 150, 170] \| Deutz-Fahr : Agrotron 80-180.7 [106, 108, 110, 115, 118, 120, 128, 130, 135, 150, 150.7, 165.7, 180.7], Agrotron TTV [1130, 1145, 1160, 610, 620] \| McCormick : MTX [110, 120, 125, 135, 140, Show more
Total length	445 mm
Working length	355 mm
