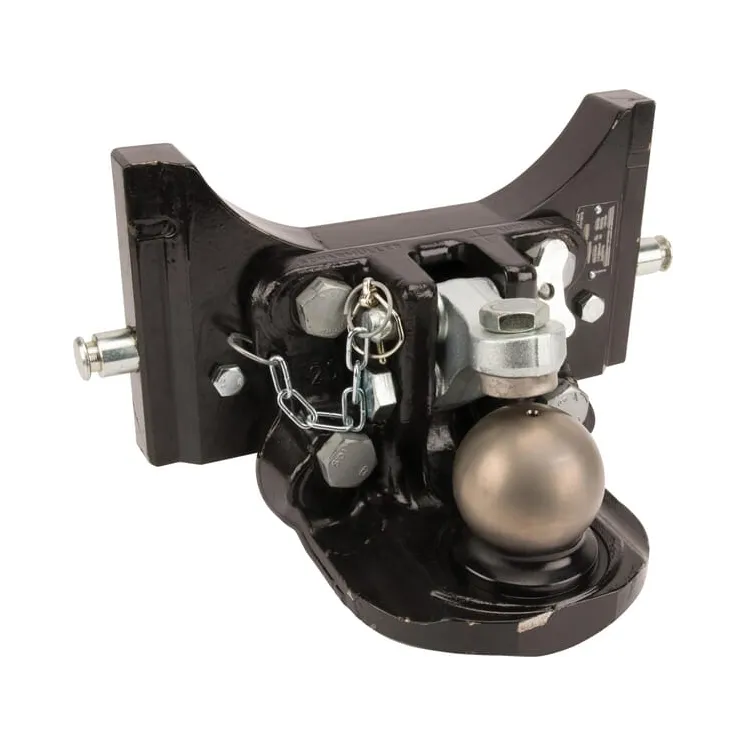

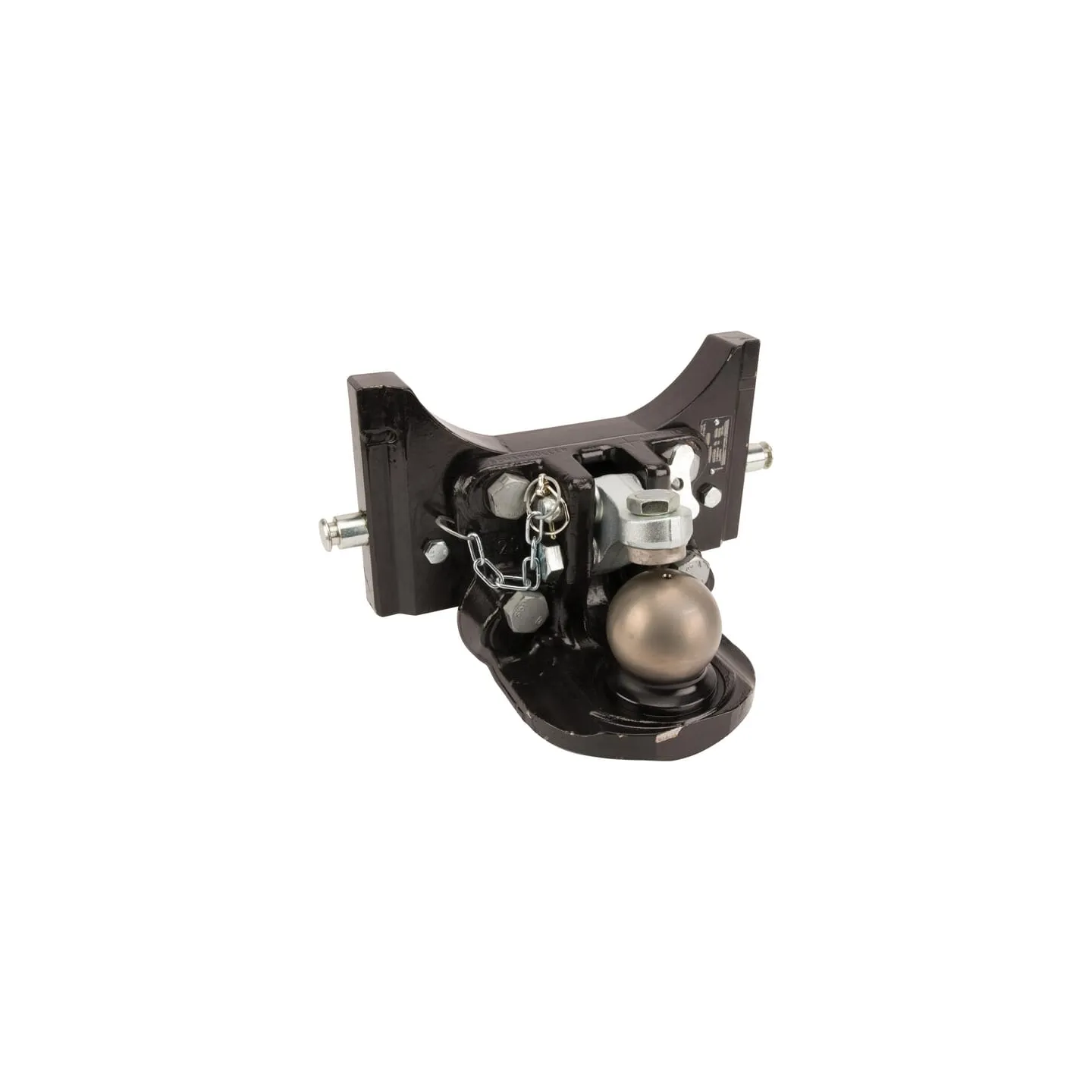

Trailer coupling K80 03633044A02 Scharmüller
search
  • Trailer coupling K80 03633044A02 Scharmüller

Trailer coupling K80 03633044A02

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,024.31
Tax included
On Request
Trailer coupling K80 03633044A02 Scharmüller
ON REQUEST

78299

Part number
03633044A02
EAN
Unit
Each
Application range
  • Couplers of the following ABGs can be coupled:
  • M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Properties
Optional retrofit with forced steering (right, left, both sides)
Benefits
  • Optimum driving comfort thanks to minimum clearance between vehicle and trailer
  • High support load
  • Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings
  • Low wear and long service life
Track width
330 mm
Track thickness
32 mm
Locking pin diameter
25 mm
Adapter plate height
180 mm
Max. permissible D-Value
83.9 kN
Max. permissible vertical load
2000 kg
Colour
Black
Type
K80® Manual
Thread diameter
M20
Working length
155 mm
Extra info
Pluggable with Bolt
