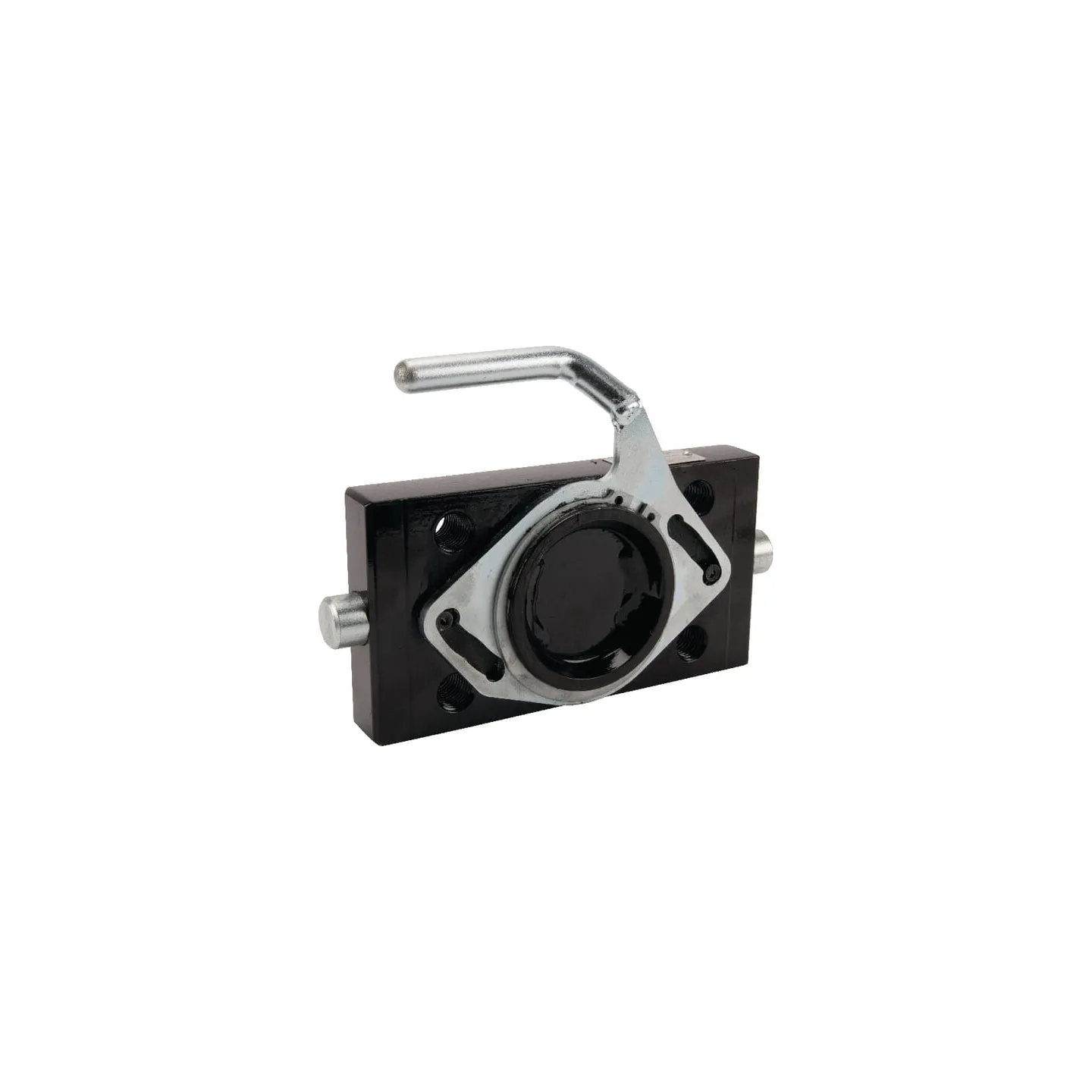

Adaptor plate 225 mm 03722532A02

Name: Adaptor plate 225 mm 03722532A02
Brand: Scharmüller
SKU: 03722532A02
Price: 483.31 EUR
Availability: BackOrder

Payment options

€483.31

Tax included

On Request

Adaptor plate 225 mm 03722532A02 Scharmüller

ON REQUEST

ID: 78337

Description

Part number	03722532A02
EAN
Unit	Each
Technical info	Strength class 10.9 bolts must be used to mount the coupling on the adapter plate M16 bolts must be tightened to a torque of 300 Nm M20 bolts must be tightened to a torque of 590 Nm
Thread diameter	M20
Locking pin diameter	25 mm
Adapter plate height	120 mm
Manufacturer	Scharmüller
Capacity	1200 kg
Colour	Black
DCvalue	25.5 kN
Height	120 mm
DC value	25.5 kN
Width / hole centres	140 x 80 mm
Number of holes	4
Thread	M20
Track width	225 mm
Type	-
Width	32 mm
