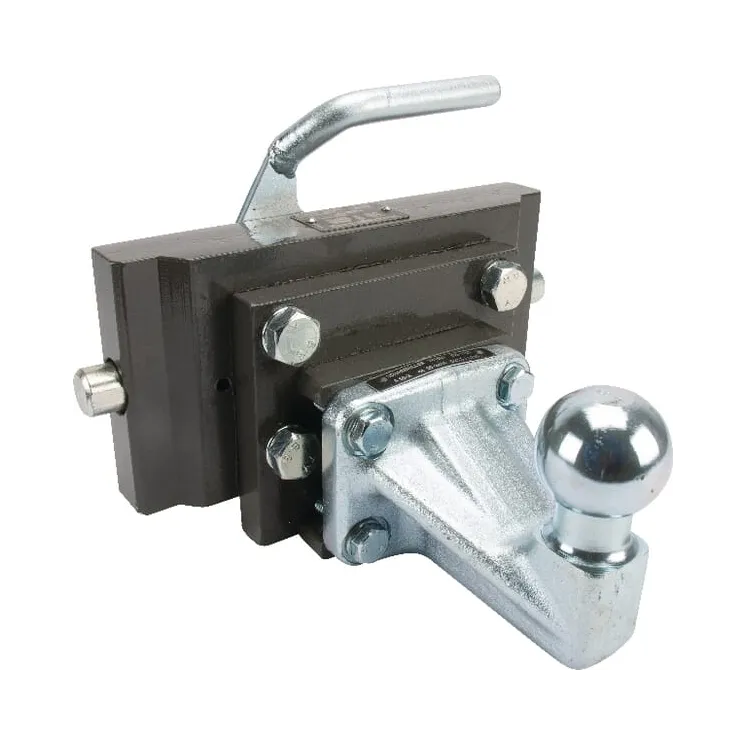

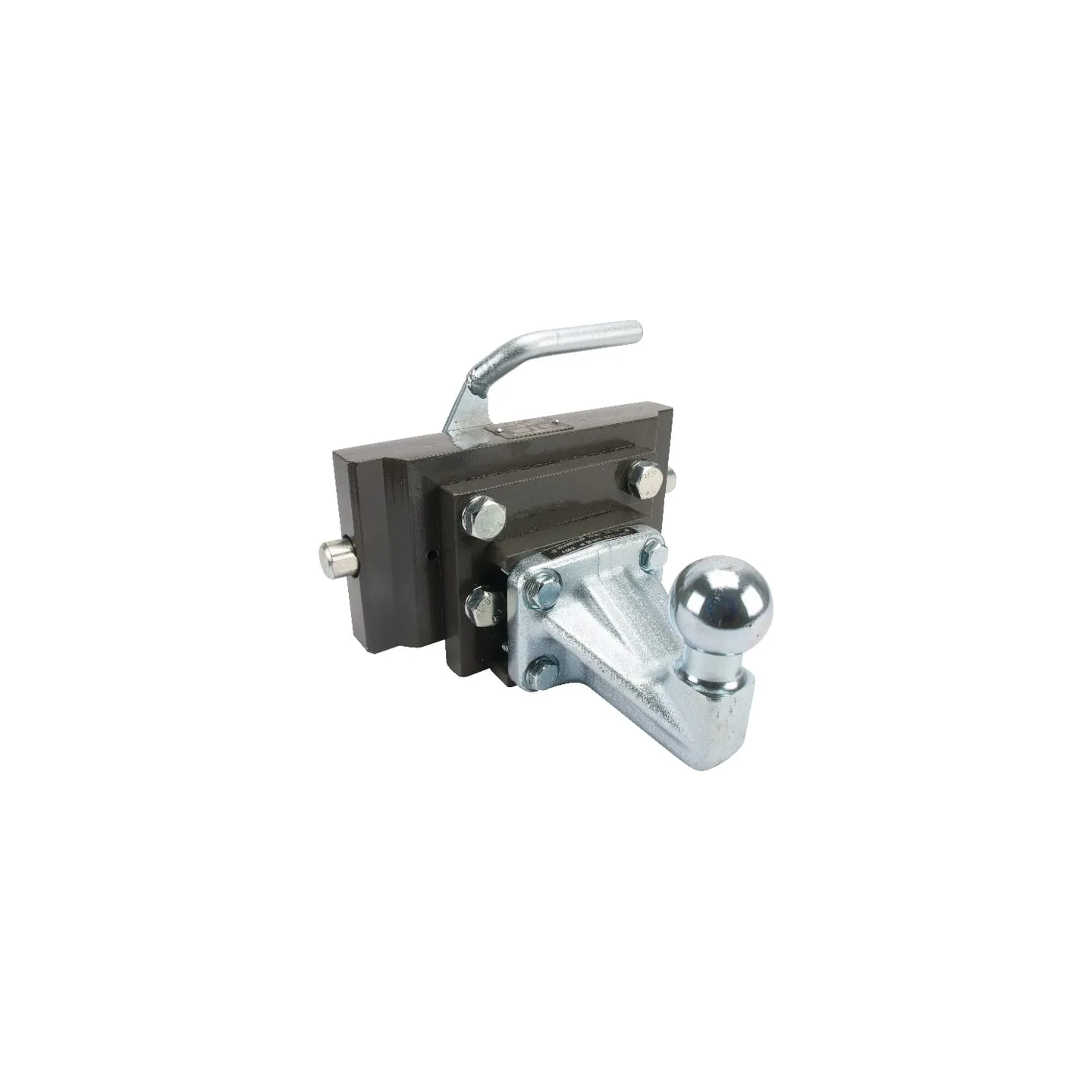

K50 tow ball coupler 241 mm 03624103A11

Name: K50 tow ball coupler 241 mm 03624103A11
Brand: Scharmüller
SKU: 03624103A11
Price: 736.55 EUR
Availability: InStock

Payment options

€736.55

Tax included

4-5 Working days

K50 tow ball coupler 241 mm 03624103A11 Scharmüller

IN WAREHOUSE

ID: 78365

Description

Part number	03624103A11
EAN
Unit	Each
Long description	Tow Ball Coupler K50
Track width	241 mm
Track thickness	30 mm
Locking pin diameter	22 mm
Adapter plate height	120 mm
Max. permissible D-Value	23.5 kN
Max. permissible vertical load	250 kg
Colour	Grey
Towing eye inside diameter (main hole)	50 mm
Thread diameter	M16
Autorisation number	E1 55R-01 2810 E4 00-3494 E4 D 0195 M10209 M9655
Total height	120 mm
Working length	180 mm
Suitable for machine/vehicle brand	Fendt
Suitable for machine/vehicle model	Fendt: Farmer F 200:206;207;208;209 Farmer P 200:208;209 Farmer S 200:206;207;208;209 Farmer SA 200:206;207;208;209;240;250;260;270;275;280 Farmer V 200: 206, 207, 208, 209 Vario V/F 200:207;208 Vario V/F/P 200:209;210;211
