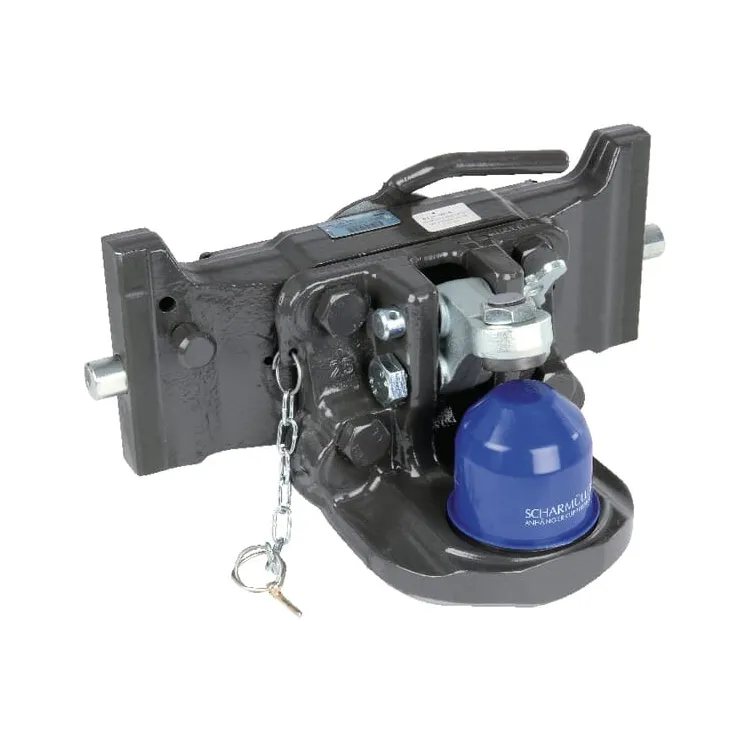

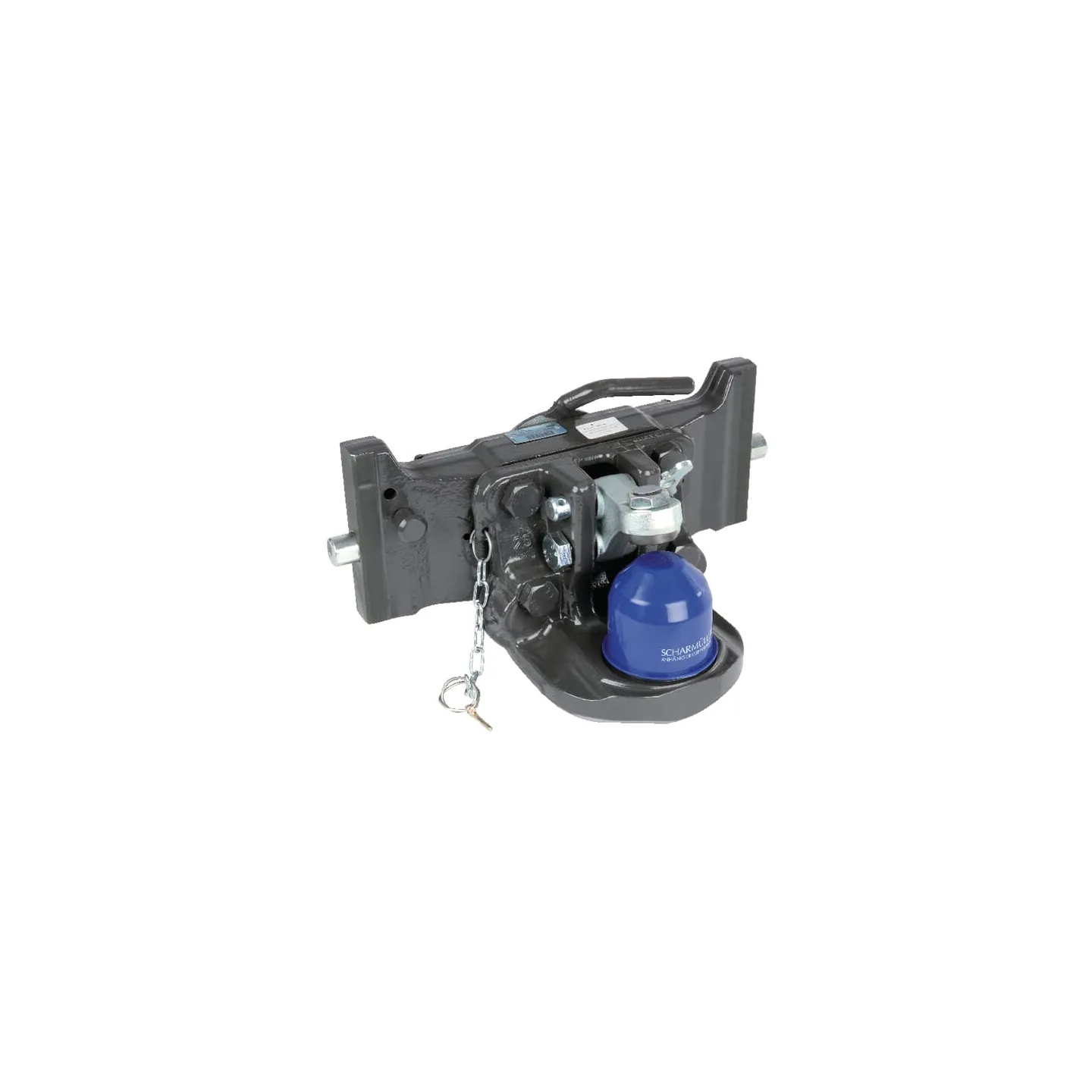

Tow ball coupler K80 390 mm 07639042A02 Scharmüller 07639042
IN WAREHOUSE

78395

Part number
07639042A02
EAN
Unit
Each
Application range
  • Couplers of the following ABGs can be coupled:
  • M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Properties
Optional retrofit with forced steering (right, left, both sides)
Benefits
  • Optimum driving comfort thanks to minimum clearance between vehicle and trailer
  • High support load
  • Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings
  • Low wear and long service life
Track width
390 mm
Track thickness
32 mm
Locking pin diameter
25 mm
Adapter plate height
160 mm
Max. permissible D-Value
89.3 kN
Max. permissible vertical load
3000 kg
Colour
Black
Type
K80® Manual
Thread diameter
M20
Working length
163 mm
  • Brand
    Scharmüller
  • Reference
    07639042A02
  • In stock
    3 Items
  • Condition
    New
  • CODE
    07639042
