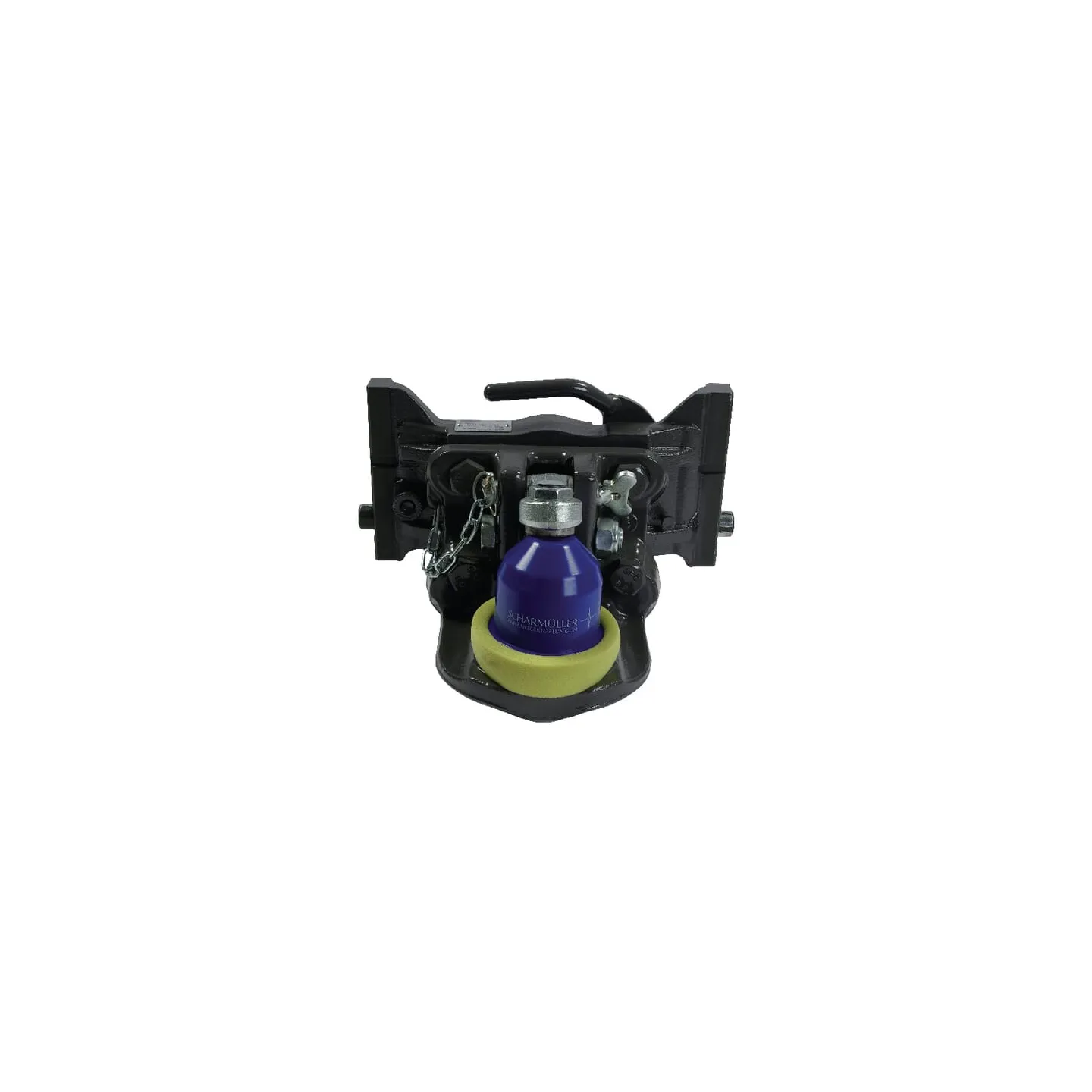

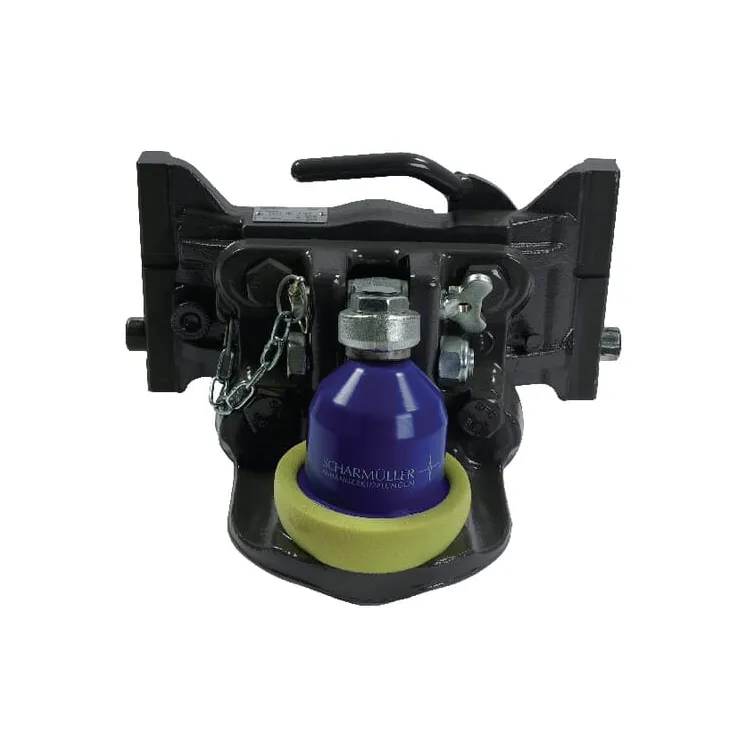

Tow ball coupler K80 07633042A02 Scharmüller 03633042 07633042 VLE2566
ON REQUEST

78426

Part number
07633042A02
EAN
Unit
Each
Application range
  • Couplers of the following ABGs can be coupled:
  • M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Properties
Optional retrofit with forced steering (right, left, both sides)
Benefits
  • Optimum driving comfort thanks to minimum clearance between vehicle and trailer
  • High support load
  • Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings
  • Low wear and long service life
Track width
330 mm
Track thickness
32 mm
Locking pin diameter
25 mm
Adapter plate height
150 mm
Max. permissible D-Value
89.3 kN
Max. permissible vertical load
3000 kg
Colour
Black
Type
K80® Manual
Thread diameter
M20
Min. mounting holes distance
80 mm
Max. mounting holes distance
140 mm
Working length
155 mm
Extra info
Height Adjustable with Grabhandle
  • CODE
    03633042 07633042 VLE2566
