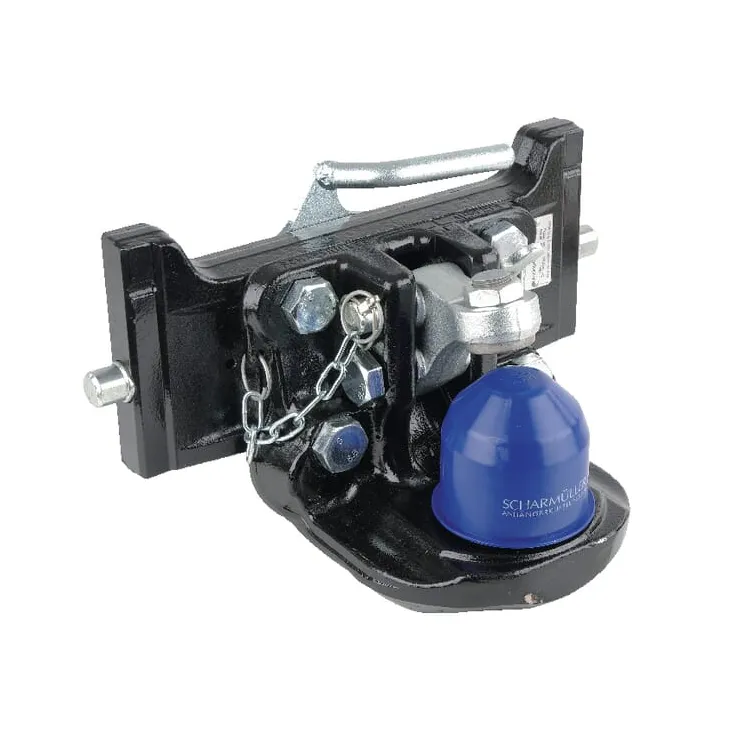

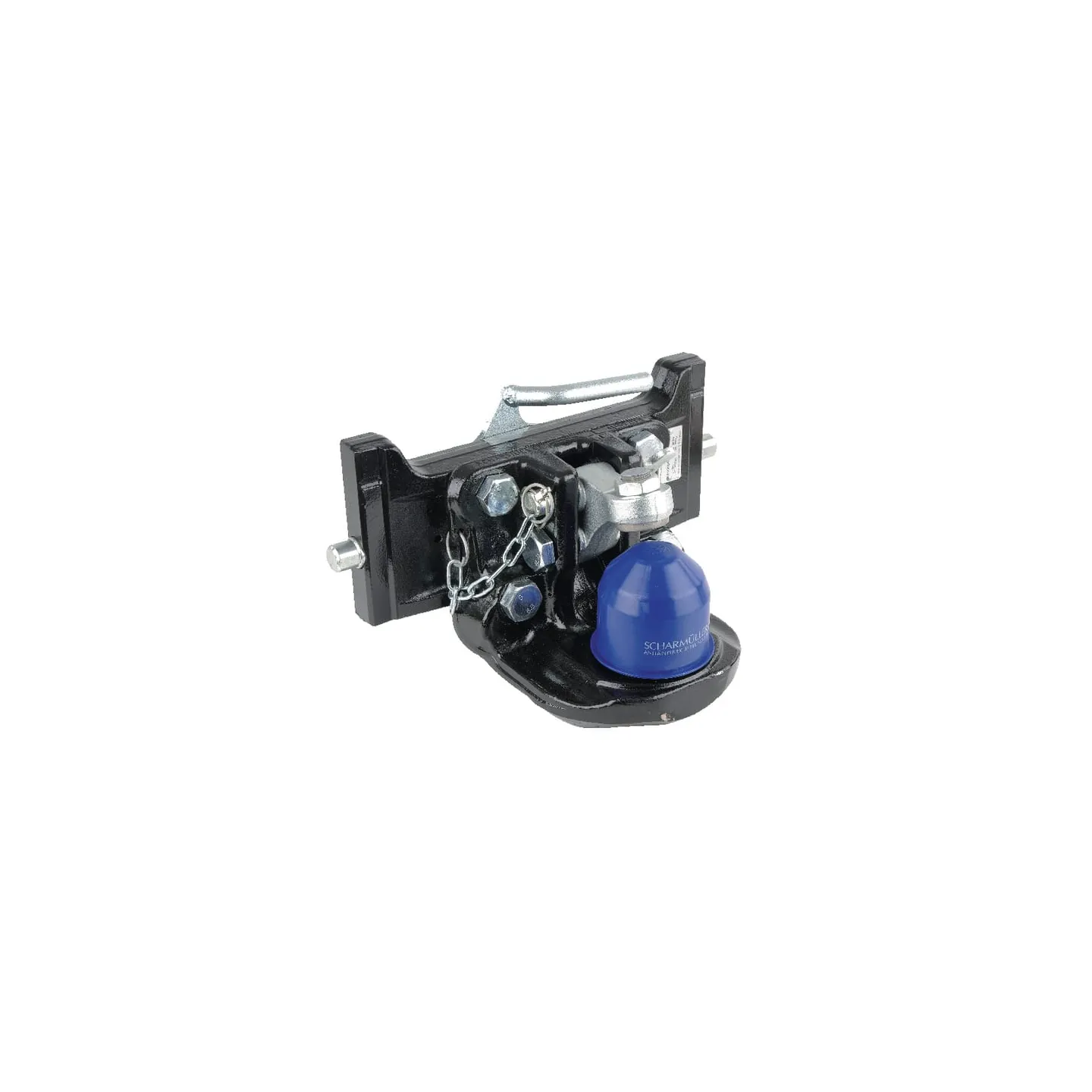

Tow ball coupler K80 335mm 07633542A11 Scharmüller 03633542 07633542 07633542A24
search
  • Tow ball coupler K80 335mm 07633542A11 Scharmüller 03633542 07633542 07633542A24

Tow ball coupler K80 335mm 07633542A11 03633542 07633542 07633542A24

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,006.21
Tax included
4-5 Working days
Tow ball coupler K80 335mm 07633542A11 Scharmüller 03633542 07633542 07633542A24
IN WAREHOUSE

78429

Part number
07633542A11
EAN
Unit
Each
Application range
  • Couplers of the following ABGs can be coupled:
  • M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Properties
Optional retrofit with forced steering (right, left, both sides)
Benefits
  • Optimum driving comfort thanks to minimum clearance between vehicle and trailer
  • High support load
  • Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings
  • Low wear and long service life
Track width
355 mm
Locking pin diameter
22 mm
Adapter plate height
150 mm
Pull pin diameter
80 mm
Max. permissible D-Value
89.3 kN
Max. permissible vertical load
3000 kg
Colour
Grey
Type
K80® Manual
Thread diameter
M20
Total width
30 mm
Working length
155 mm
  • Brand
    Scharmüller
  • Reference
    07633542A11
  • In stock
    1 Item
  • Condition
    New
  • CODE
    03633542 07633542 07633542A24
