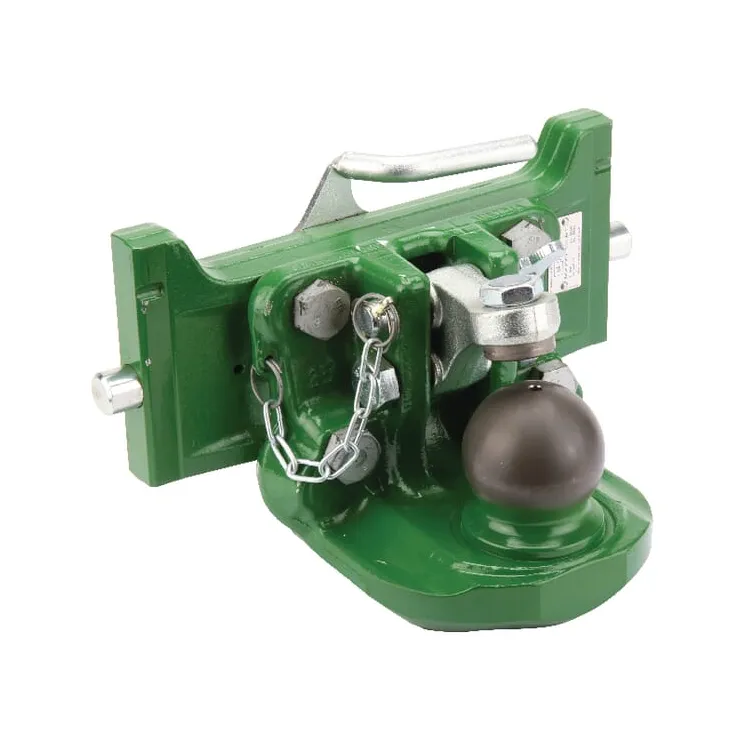

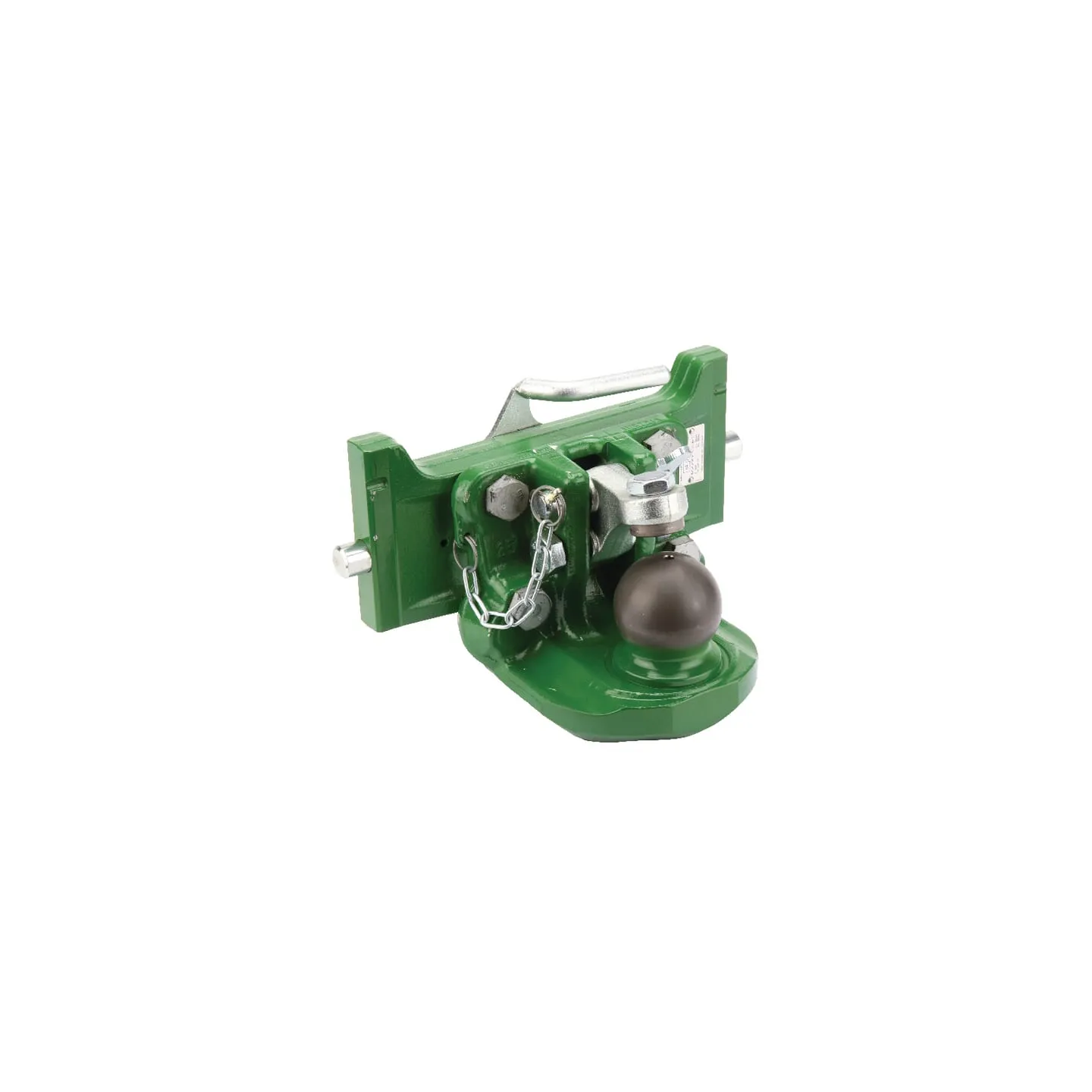

Tow ball coupler 80mm green 07633042A17 Scharmüller 076330421 VLE2449
search
  • Tow ball coupler 80mm green 07633042A17 Scharmüller 076330421 VLE2449

Tow ball coupler 80mm green 07633042A17 076330421 VLE2449

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€985.81
Tax included
4-5 Working days
Tow ball coupler 80mm green 07633042A17 Scharmüller 076330421 VLE2449
IN WAREHOUSE

78432

Part number
07633042A17
EAN
Unit
Each
Application range
  • Couplers of the following ABGs can be coupled:
  • M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Properties
Optional retrofit with forced steering (right, left, both sides)
Benefits
  • Optimum driving comfort thanks to minimum clearance between vehicle and trailer
  • High support load
  • Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings
  • Low wear and long service life
Track width
330 mm
Track thickness
32 mm
Locking pin diameter
25 mm
Adapter plate height
150 mm
Max. permissible D-Value
89.3 kN
Max. permissible vertical load
3000 kg
Colour
Green
Type
K80® Manual
Min. mounting holes distance
80 mm
Max. mounting holes distance
140 mm
Working length
155 mm
Suitable for machine/vehicle brand
John Deere
Manufacturer
Cramer
  • Brand
    Scharmüller
  • Reference
    07633042A17
  • In stock
    2 Items
  • Condition
    New
  • CODE
    076330421 VLE2449
