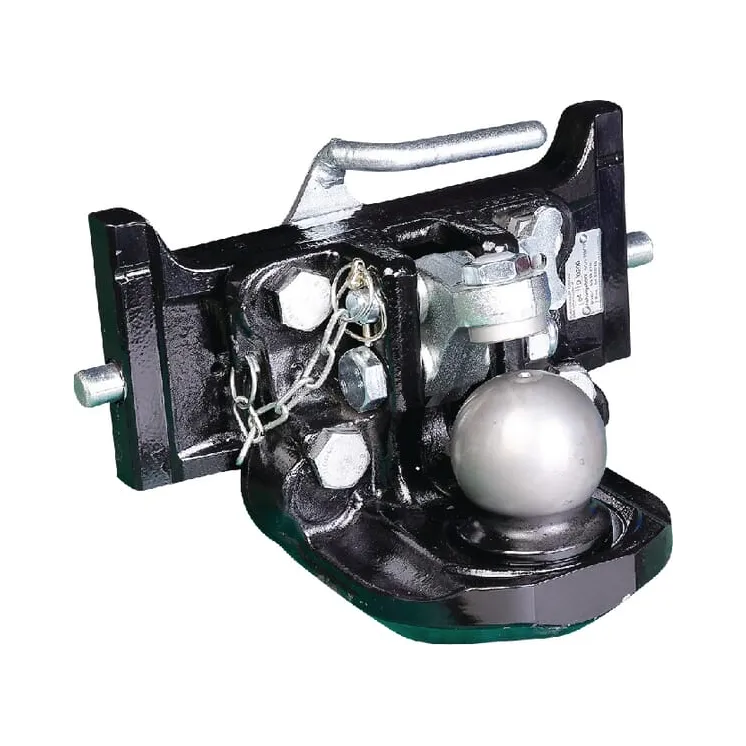

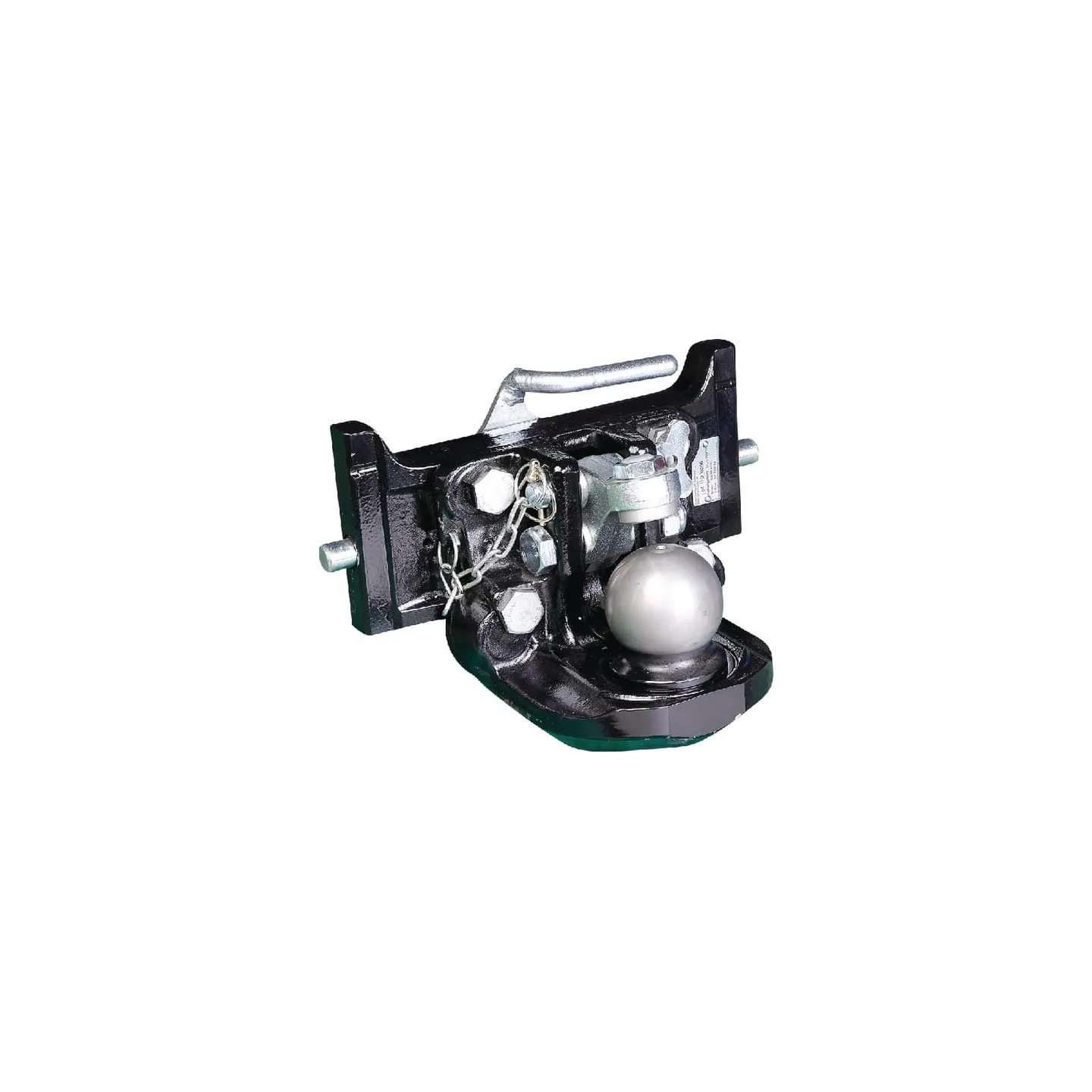

Tow ball coupler K80 314 mm 07631442A02 Scharmüller 07631452
search
  • Tow ball coupler K80 314 mm 07631442A02 Scharmüller 07631452

Tow ball coupler K80 314 mm 07631442A02 07631452

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,116.30
Tax included
4-5 Working days
Tow ball coupler K80 314 mm 07631442A02 Scharmüller 07631452
IN WAREHOUSE

78433

Part number
07631442A02
EAN
Unit
Each
Application range
  • Couplers of the following ABGs can be coupled:
  • M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Properties
Optional retrofit with forced steering (right, left, both sides)
Benefits
  • Optimum driving comfort thanks to minimum clearance between vehicle and trailer
  • High support load
  • Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings
  • Low wear and long service life
Track width
314 mm
Track thickness
30 mm
Locking pin diameter
20 mm
Adapter plate height
150 mm
Max. permissible D-Value
89.3 kN
Max. permissible vertical load
3000 kg
Colour
Black
Type
K80® Manual
Thread diameter
M20
Working length
155 mm
Extra info
Height Adjustable with Grabhandle
  • Brand
    Scharmüller
  • Reference
    07631442A02
  • In stock
    5 Items
  • Condition
    New
  • CODE
    07631452
