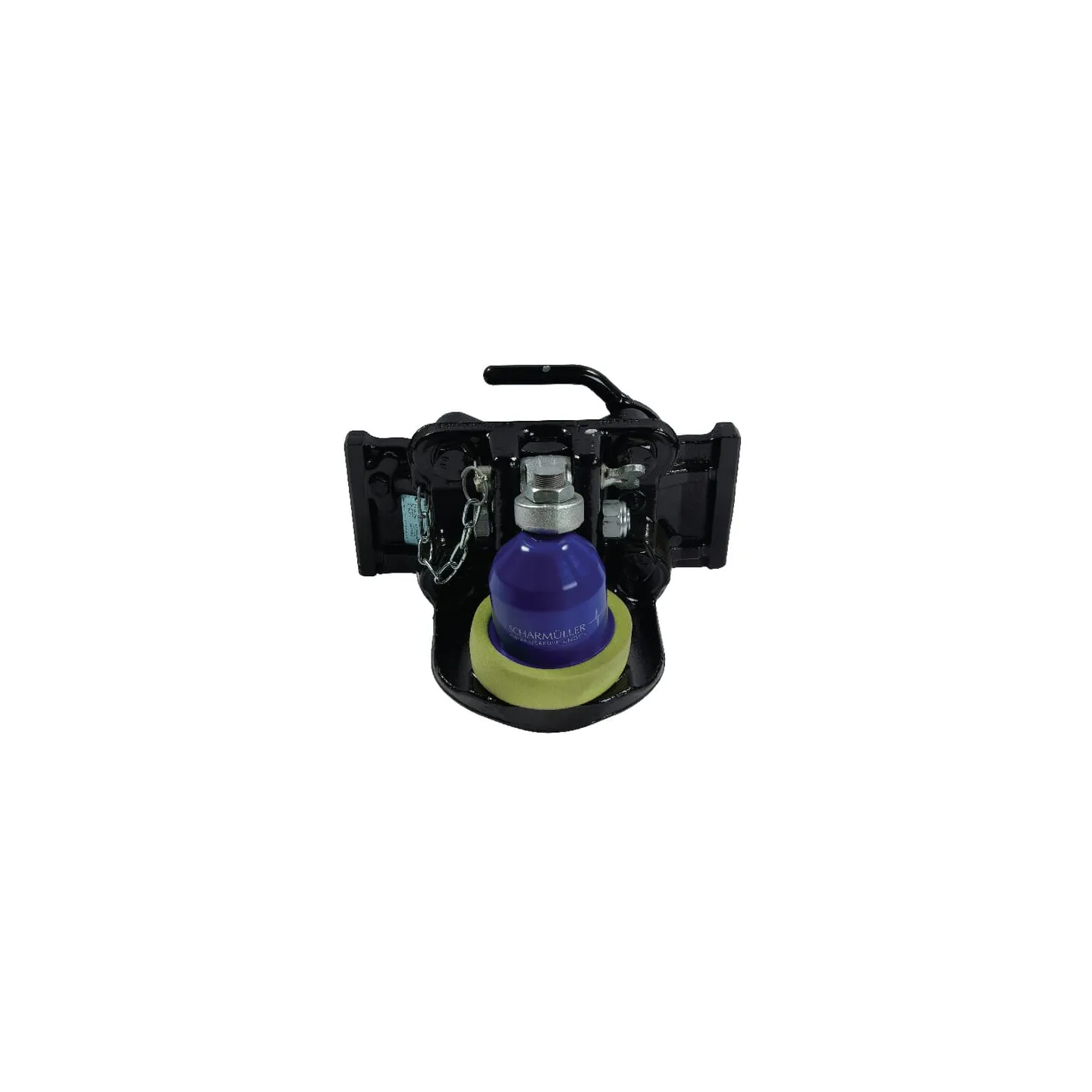

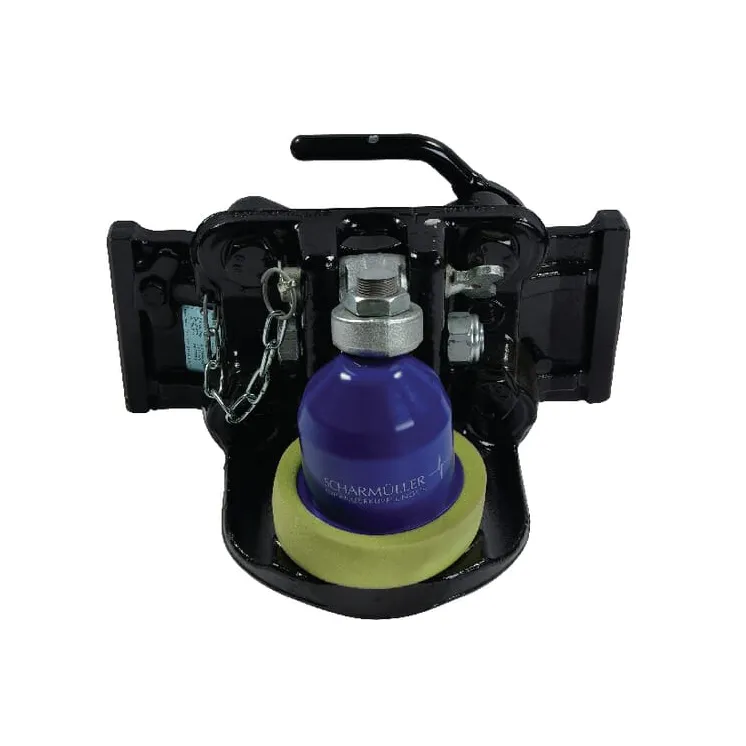

Tow ball coupler K80 325 mm 05632533A02 Scharmüller 05632533
search
  • Tow ball coupler K80 325 mm 05632533A02 Scharmüller 05632533

Tow ball coupler K80 325 mm 05632533A02 05632533

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,122.57
Tax included
4-5 Working days
Tow ball coupler K80 325 mm 05632533A02 Scharmüller 05632533
IN WAREHOUSE

78458

Part number
05632533A02
EAN
Unit
Each
Application range
  • Couplers of the following ABGs can be coupled:
  • M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Properties
Optional retrofit with forced steering (right, left, both sides)
Benefits
  • Optimum driving comfort thanks to minimum clearance between vehicle and trailer
  • High support load
  • Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings
  • Low wear and long service life
Track width
325 mm
Track thickness
26 mm
Locking pin diameter
25 mm
Adapter plate height
133 mm
Max. permissible D-Value
83.9 kN
Max. permissible vertical load
2000 kg
Colour
Black
Type
K80® Manual
Thread diameter
M20
Min. mounting holes distance
80 mm
Max. mounting holes distance
140 mm
Working length
177 mm
Extra info
Height Adjustable with Grabhandle
  • Brand
    Scharmüller
  • Reference
    05632533A02
  • In stock
    1 Item
  • Condition
    New
  • CODE
    05632533
