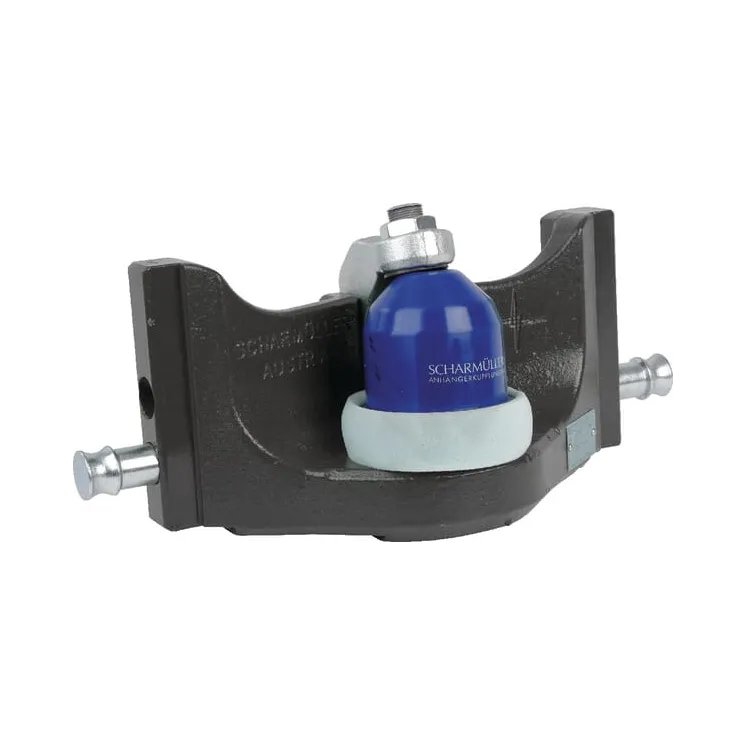

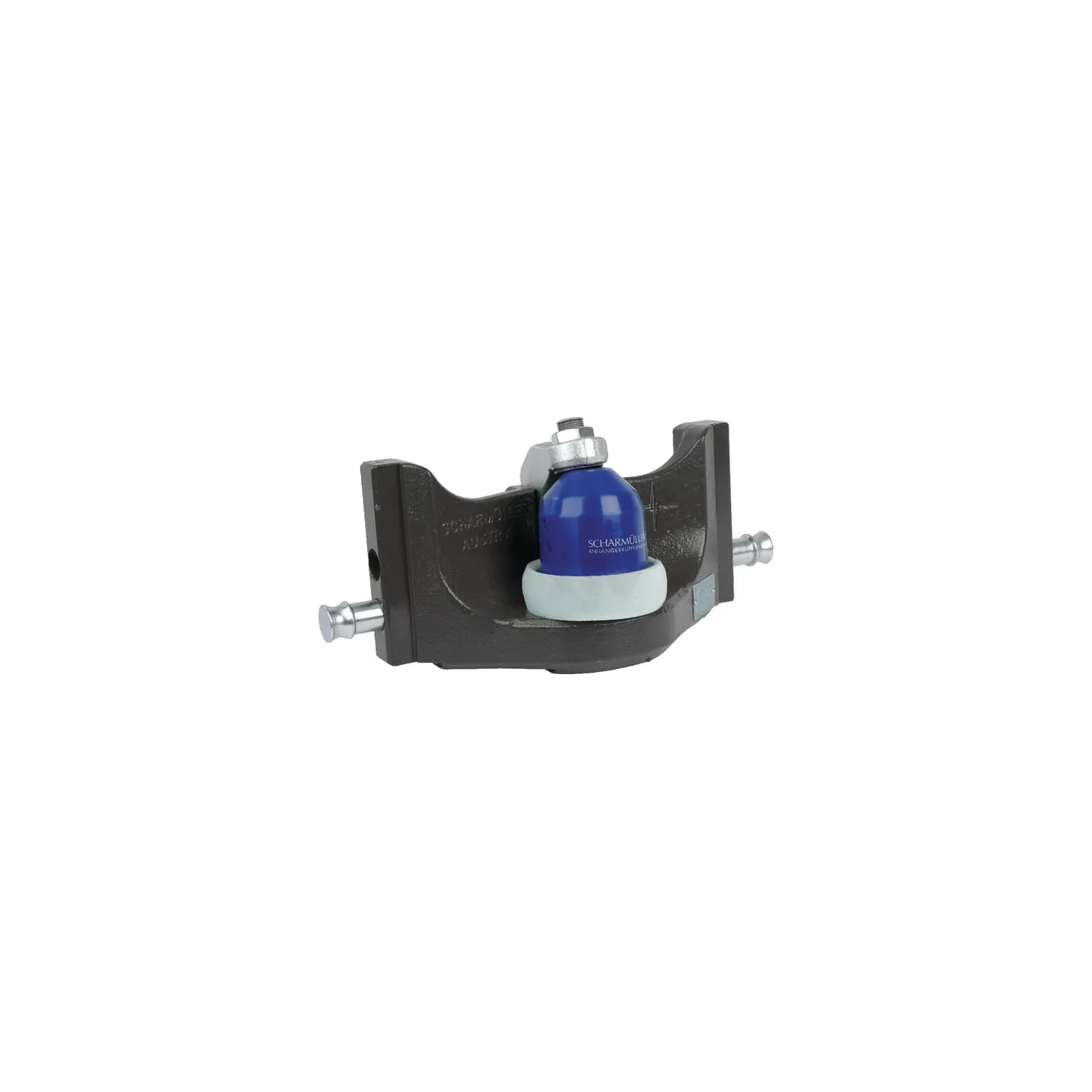

Tow ball coupler 80 mm 329 mm 05633045A02 Scharmüller 05633047
search
  • Tow ball coupler 80 mm 329 mm 05633045A02 Scharmüller 05633047

Tow ball coupler 80 mm 329 mm 05633045A02 05633047

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,025.03
Tax included
4-5 Working days
Tow ball coupler 80 mm 329 mm 05633045A02 Scharmüller 05633047
IN WAREHOUSE

78510

Part number
05633045A02
EAN
Unit
Each
Application range
  • Couplers of the following ABGs can be coupled:
  • M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Properties
Optional retrofit with forced steering (right, left, both sides)
Benefits
  • Optimum driving comfort thanks to minimum clearance between vehicle and trailer
  • High support load
  • Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings
  • Low wear and long service life
Track width
329 mm
Track thickness
32 mm
Locking pin diameter
25 mm
Adapter plate height
160 mm
Max. permissible D-Value
89.3 kN
Max. permissible vertical load
4000 kg
Colour
Black
Type
K80® Manual
Working length
57 mm
Extra info
Pluggable with Bolt
  • Brand
    Scharmüller
  • Reference
    05633045A02
  • In stock
    1 Item
  • Condition
    New
  • CODE
    05633047
