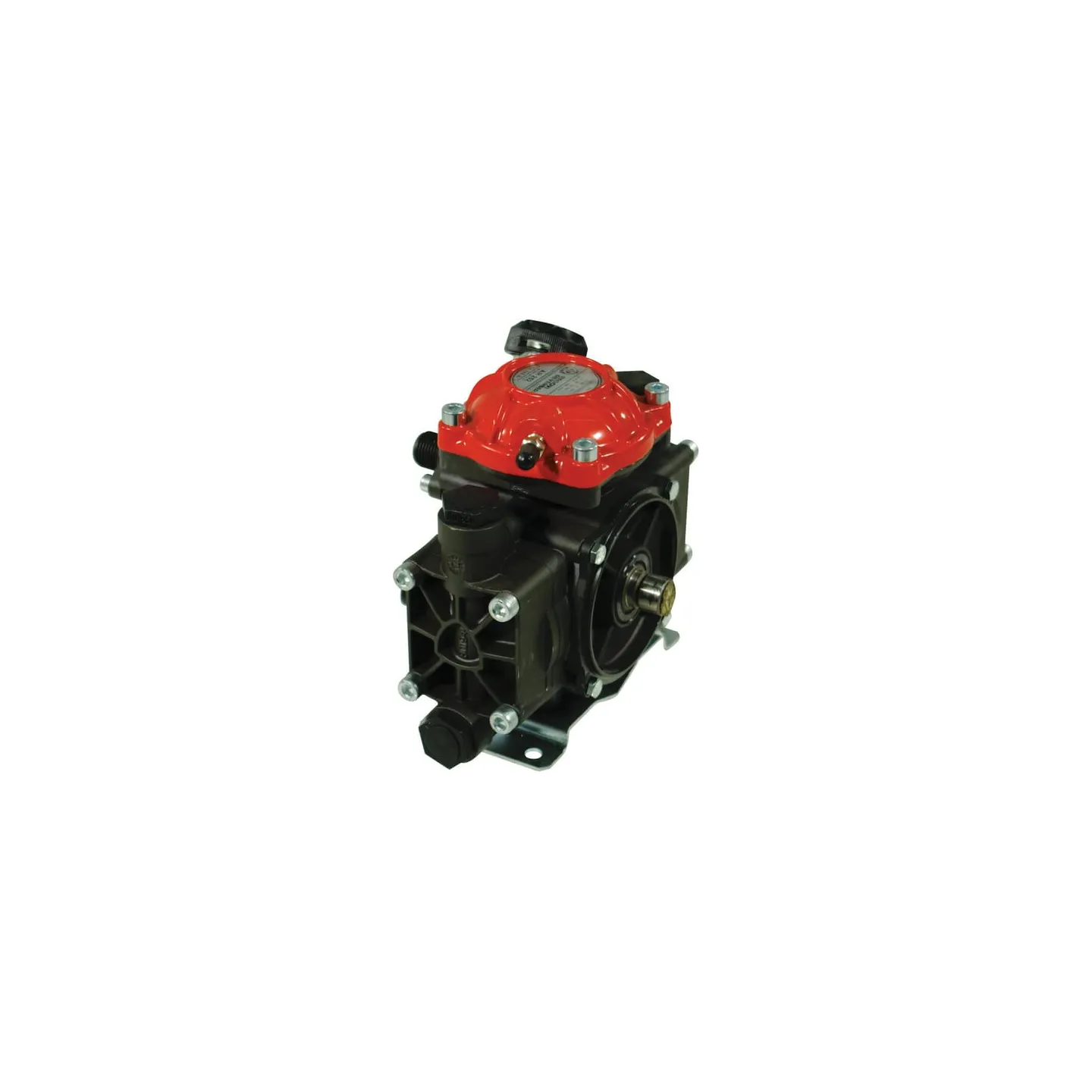

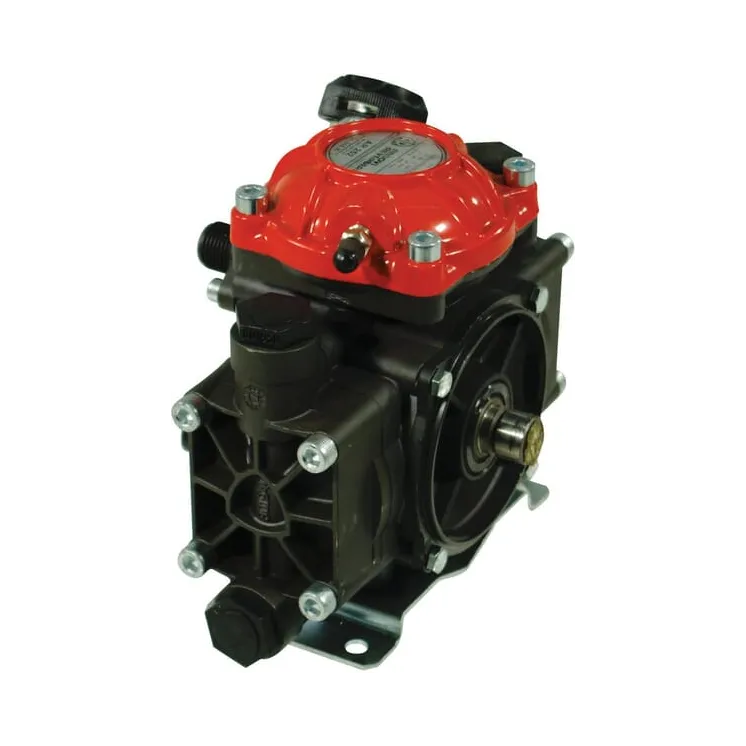

Pump AR 252 SP SGC BlueFlex 16281AR 158AR

Name: Pump AR 252 SP SGC BlueFlex 16281AR 158AR
Brand: Annovi Reverberi
SKU: 16281AR
Price: 472.43 EUR
Availability: InStock

€472.43

Tax included

4-5 Working days

Pump AR 252 SP SGC BlueFlex 16281AR Annovi Reverberi 158AR

IN WAREHOUSE

ID: 81283

Description

Part number	16281AR
EAN
Unit	Each
Application range	Semi-hydraulic low-pressure diaphragm pumps for weed control and liquid fertilisation The pumps AR DUE, AR202 and AR252 are diaphragm pumps for horticulture
Properties	All parts that come in contact with liquid are plastic-coated. The AR DUE, AR202 and AR252 pumps are made from anodised aluminium The oil bath crank drive has a control tank (except the AR DUE) Screws with galvanised protection treatment made from Dacromet
Technical info	SP: pump with universal shaft as driving shaft Bp C: pump with a cardan shaft 1 3/8" 6 pieces Bp C/C: pump with through shaft: two-sided cardan shaft 1 3/8" – 6 piece – 1 3/8" – 6 piece BpTwin: pump with through shaft: two-sided cardan shaft 1 3/8" – 6 piece – 1 3/8" – 6 piece
Consists of	Piston diaphragm pump with safety valve and air chamber (except for AR DUE, AR202 and AR252) The pumps are supplied with rubber membranes as standard
Drive shaft	universal Inch
Height	237 mm
Power	1.6 HP
Length	248 mm
Flow max.	25 l/min
Pressure max.	25 BAR
Rotation max.	650 r/min
Temperature max.	60 °C
Material piston diaphragms	BlueFlex
Ø Intake	20 mm
Ø Outlet	18 mm
Power	1.17 kW
Shaft type	Universal
Weight	4 kg
Width	222 mm
