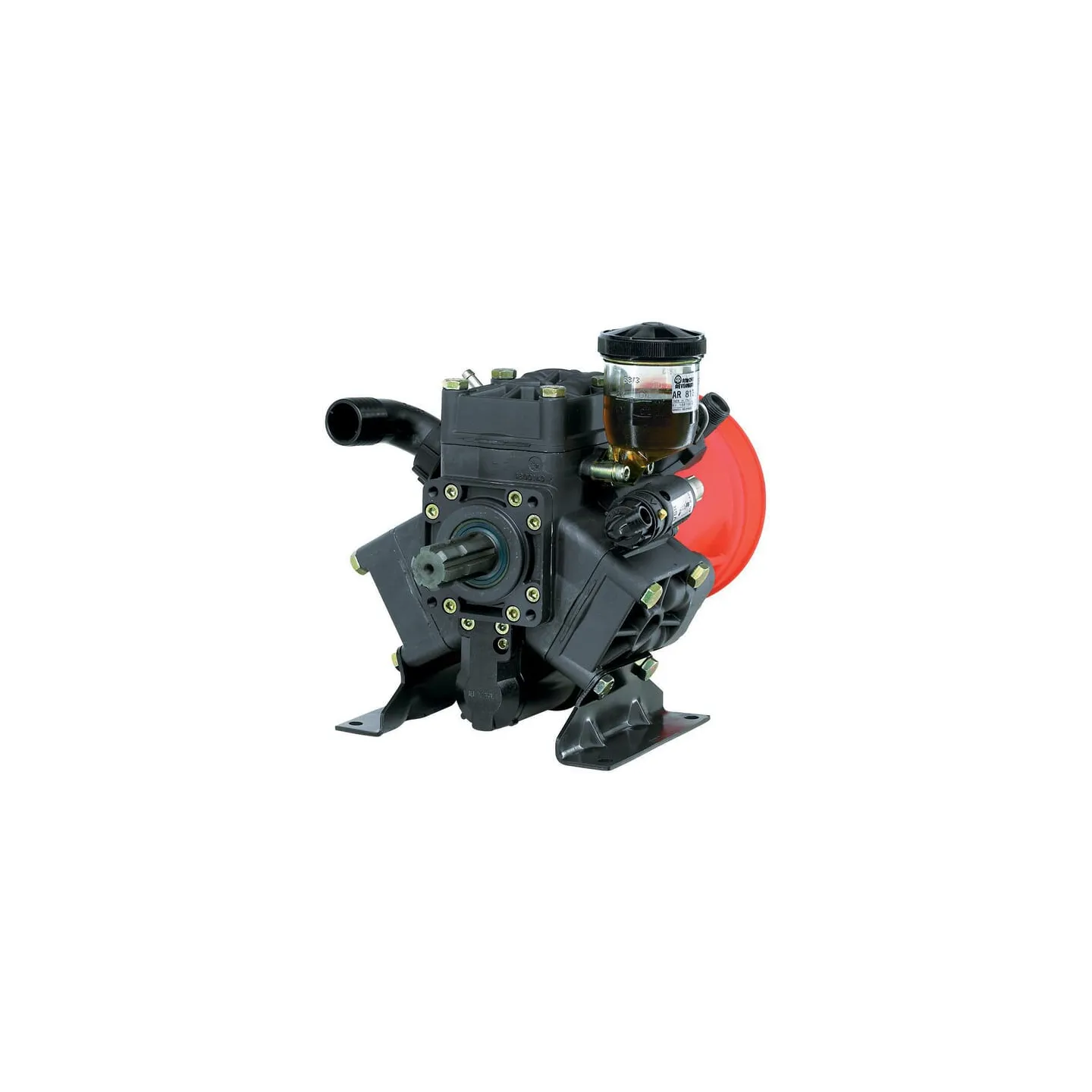

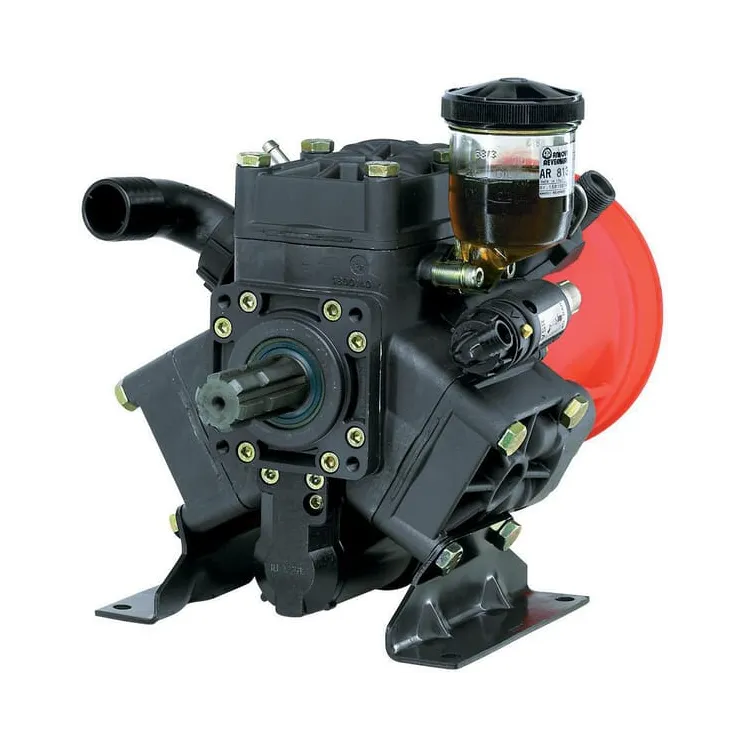

Pump AR 813 AP C/C SGC BlueFlex 16293AR Annovi Reverberi 631AR
search
  • Pump AR 813 AP C/C SGC BlueFlex 16293AR Annovi Reverberi 631AR

Pump AR 813 AP C/C SGC BlueFlex 16293AR 631AR

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€999.96
Tax included
On Request
Pump AR 813 AP C/C SGC BlueFlex 16293AR Annovi Reverberi 631AR
ON REQUEST

81287

Part number
16293AR
EAN
Unit
Each
Details
  • Anodised medium- and high-pressure pumps
  • All parts coming into contact with liquid are anodised (the AR30 and AR50 versions are plastic-coated)
Application range
For sprayers in fruit and wine growing (tall-growing crops)
Properties
  • The crank drive case runs in an oil bath, with a control tank
  • All screws are zinc-plated
Technical info
  • SP: pump with universal shaft as driving shaft
  • C: pump with a cardan shaft 1 3/8" 6 pieces
  • C/C: pump with through shaft: double-sided cardan shaft 1 3/8" – 6 pieces – 1 3/8" – 6 pieces
  • C/SP: pump with through shaft: 1 3/8" - 6 pieces, universal shaft
Benefits
Long service life
Consists of
  • The pumps are equipped with rubber membranes as standard
  • A safety valve is fitted as standard (except the AR303, AR403 and AR503)
  • The protective cap is supplied with C/SP pumps as standard
Drive shaft
2x 1 3/8 Inch
Height
335 mm
Power
10 HP
Length
372 mm
Flow max.
81 l/min
Pressure max.
50 BAR
Rotation max.
550 r/min
Temperature max.
60 °C
Material piston diaphragms
BlueFlex
Ø Intake
40 mm
Ø Outlet
G 3/4 Inch
Power
7.4 kW
Shaft type
1 3/8" (6) + 1 3/8" (6)
Weight
20 kg
Width
360 mm
  • CODE
    631AR
