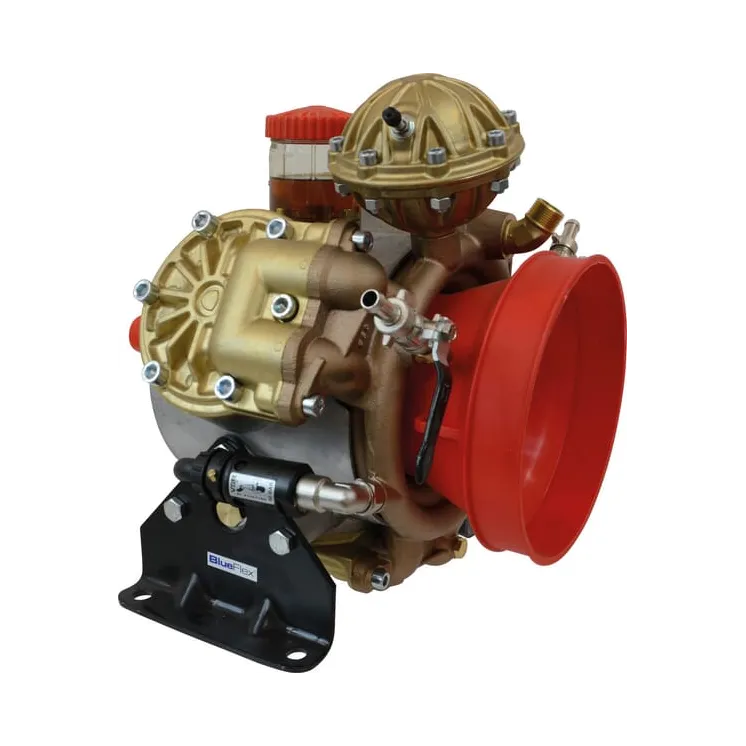

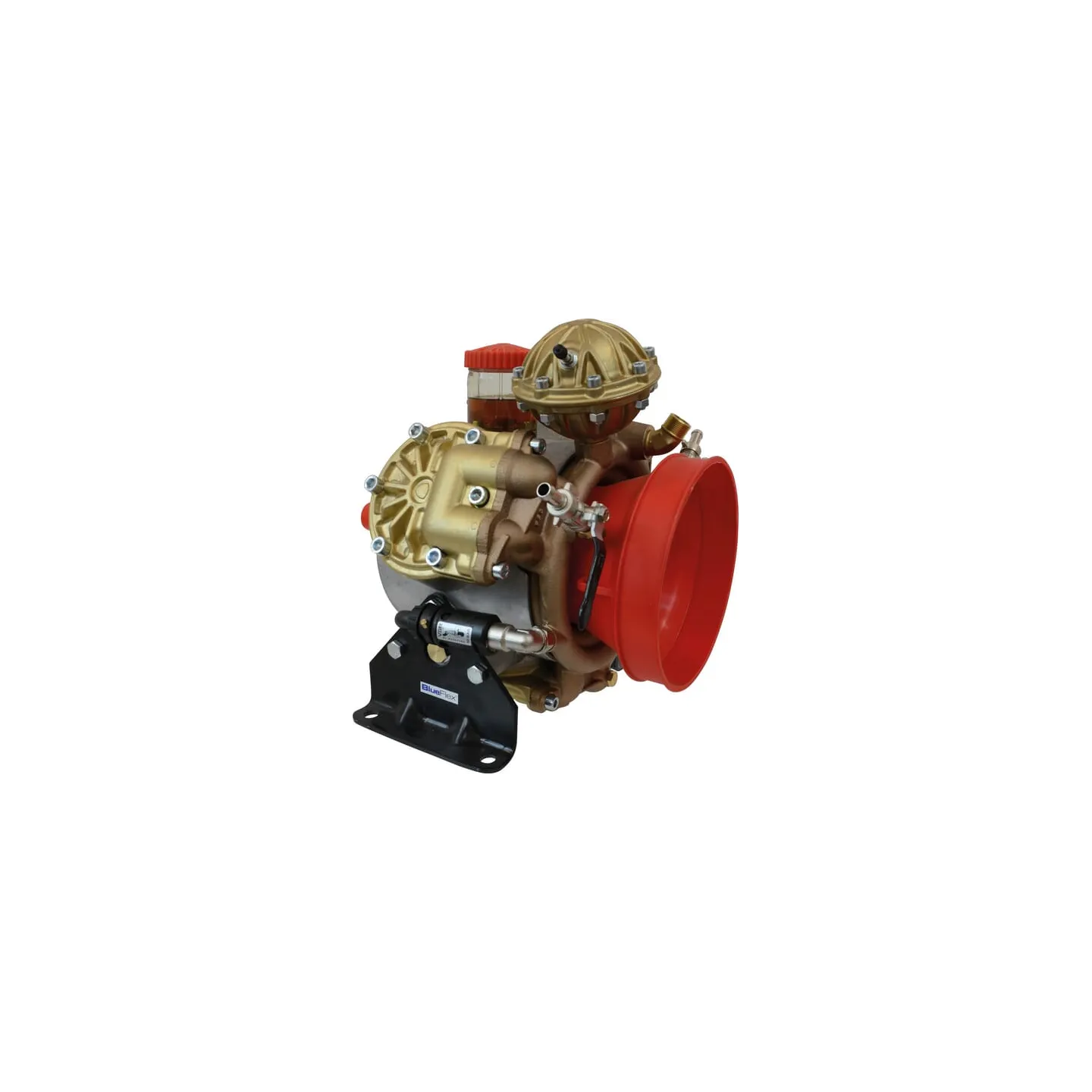

BHS 150 AP C/C PUMP BlueFlex 16306AR Annovi Reverberi
ON REQUEST

81293

Part number
16306AR
EAN
Unit
Each
Details
  • Anodised medium- and high-pressure pumps
  • All parts coming into contact with liquid are anodised (the AR30 and AR50 versions are plastic-coated)
Application range
For sprayers in fruit and wine growing (tall-growing crops)
Properties
  • The crank drive case runs in an oil bath, with a control tank
  • All screws are zinc-plated
Technical info
  • SP: pump with universal shaft as driving shaft
  • C: pump with a cardan shaft 1 3/8" 6 pieces
  • C/C: pump with through shaft: double-sided cardan shaft 1 3/8" – 6 pieces – 1 3/8" – 6 pieces
  • C/SP: pump with through shaft: 1 3/8" - 6 pieces, universal shaft
Benefits
Long service life
Consists of
  • The pumps are equipped with rubber membranes as standard
  • A safety valve is fitted as standard (except the AR303, AR403 and AR503)
  • The protective cap is supplied with C/SP pumps as standard
Flow rate
142.6 l/min
Height
417 mm
Power
16.3 HP
Length
397 mm
Pressure max.
50 BAR
Temperature max.
60 °C
Material piston diaphragms
BlueFlex
Ø Intake
40 mm
Ø Outlet
G 3/4 Inch
Power
12 kW
Weight
52 kg
Width
418 mm
