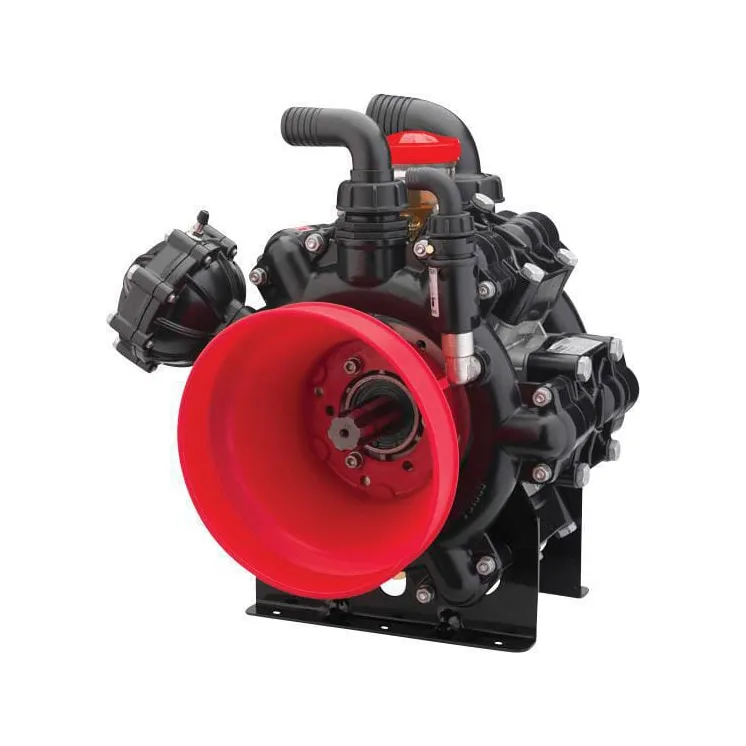

Pump AR 280 bp AP C/C BlueFlex 16272AR Annovi Reverberi 1182AR 1691AR
search
  • Pump AR 280 bp AP C/C BlueFlex 16272AR Annovi Reverberi 1182AR 1691AR

Pump AR 280 bp AP C/C BlueFlex 16272AR 1182AR 1691AR

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,736.30
Tax included
4-5 Working days
Pump AR 280 bp AP C/C BlueFlex 16272AR Annovi Reverberi 1182AR 1691AR
IN WAREHOUSE

81295

Part number
16272AR
EAN
Unit
Each
Application range
  • Semi-hydraulic low-pressure diaphragm pumps for weed control and liquid fertilisation
  • The pumps AR DUE, AR202 and AR252 are diaphragm pumps for horticulture
Properties
  • All parts that come in contact with liquid are plastic-coated. The AR DUE, AR202 and AR252 pumps are made from anodised aluminium
  • The oil bath crank drive has a control tank (except the AR DUE)
  • Screws with galvanised protection treatment made from Dacromet
Technical info
  • SP: pump with universal shaft as driving shaft
  • Bp C: pump with a cardan shaft 1 3/8" 6 pieces
  • Bp C/C: pump with through shaft: two-sided cardan shaft 1 3/8" – 6 piece – 1 3/8" – 6 piece
  • BpTwin: pump with through shaft: two-sided cardan shaft 1 3/8" – 6 piece – 1 3/8" – 6 piece
Consists of
  • Piston diaphragm pump with safety valve and air chamber (except for AR DUE, AR202 and AR252)
  • The pumps are supplied with rubber membranes as standard
Drive shaft
2x 1 3/8 Inch
Height
490 mm
Power
13 HP
Length
434 mm
Flow max.
282 l/min
Pressure max.
20 BAR
Rotation max.
550 r/min
Temperature max.
60 °C
Material piston diaphragms
BlueFlex
Ø Intake
60 mm
Ø Outlet
35 mm
Power
9.6 kW
Shaft type
1 3/8" (6) + 1 3/8" (6)
Weight
36 kg
Width
411 mm
  • CODE
    1182AR 1691AR
