Axle Braked 1350kg 247550 AL-KO
search
  • Axle Braked 1350kg 247550 AL-KO

Axle Braked 1350kg 247550

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€555.72
Tax included
On Request

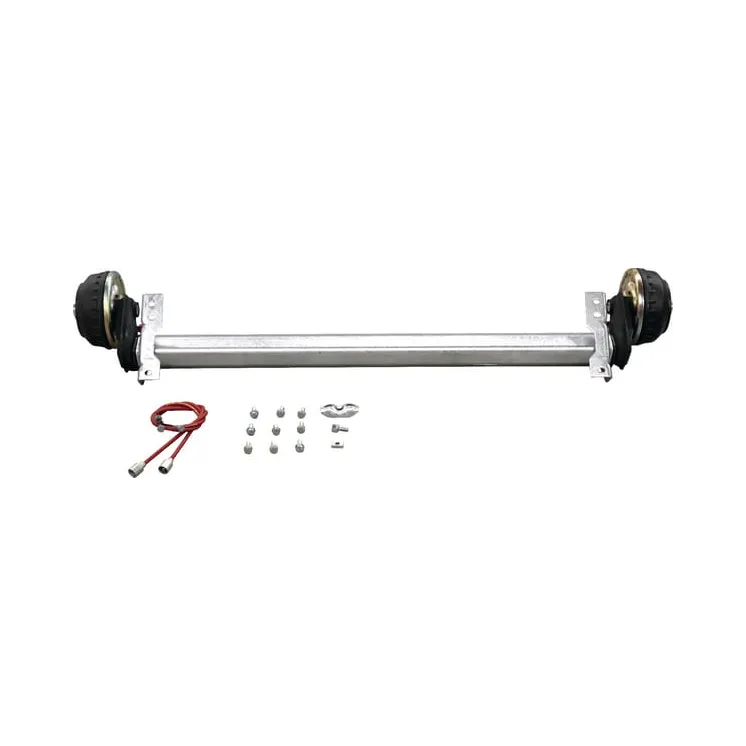

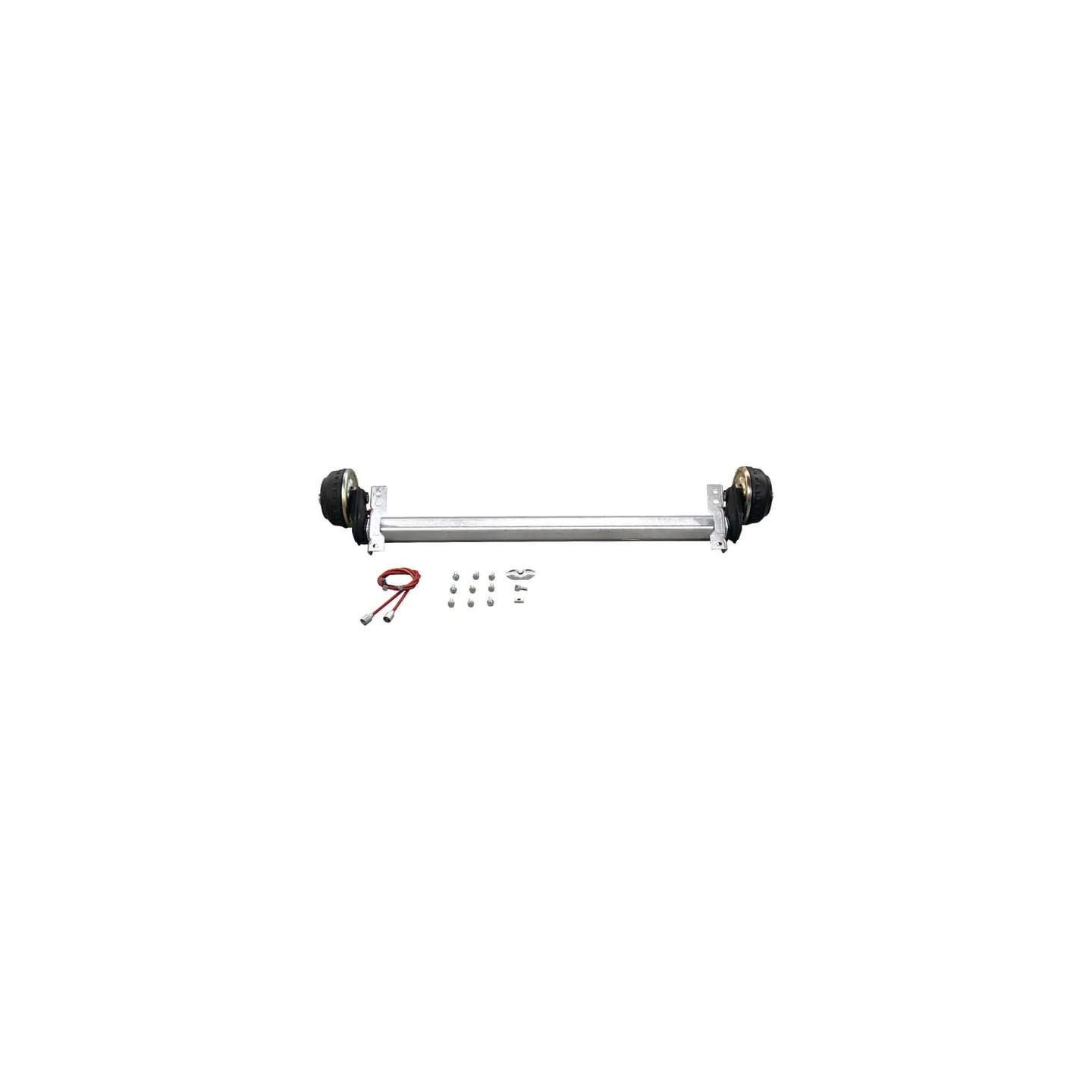

Axle Braked 1350kg 247550 AL-KO
ON REQUEST

81720

Part number
247550
EAN
Unit
Each
Properties
  • Model: PLUS
  • Hexagonal rubber-spring mounting
  • Wheel bearing: compact bearing
  • Hot-zinc-dipped axle casing
  • Wheel brake galvanically zinc-plated and yellow chromated
Number of wheel mounting holes/bolts
5
Wheel mounting holes/bolts thread diameter
M12
Wheel mounting holes/bolts pitch
1.5 mm
Consists of
  • Bowden cables, loose
  • Wheel bolts, loose
  • Compensation profile
Wheel mounting holes/bolts circle diameter
112 mm
Wheel mounting centre hole diameter
57 mm
Max. static capacity
1350 kg
CTotal length
1700 mm
Brake diameter
200 mm
Brake width
51 mm
Brakes type code
2051
AMounting points distance
1250
Type code
B 1200-6
  • Brand
    AL-KO
  • Reference
    247550
  • Condition
    New
