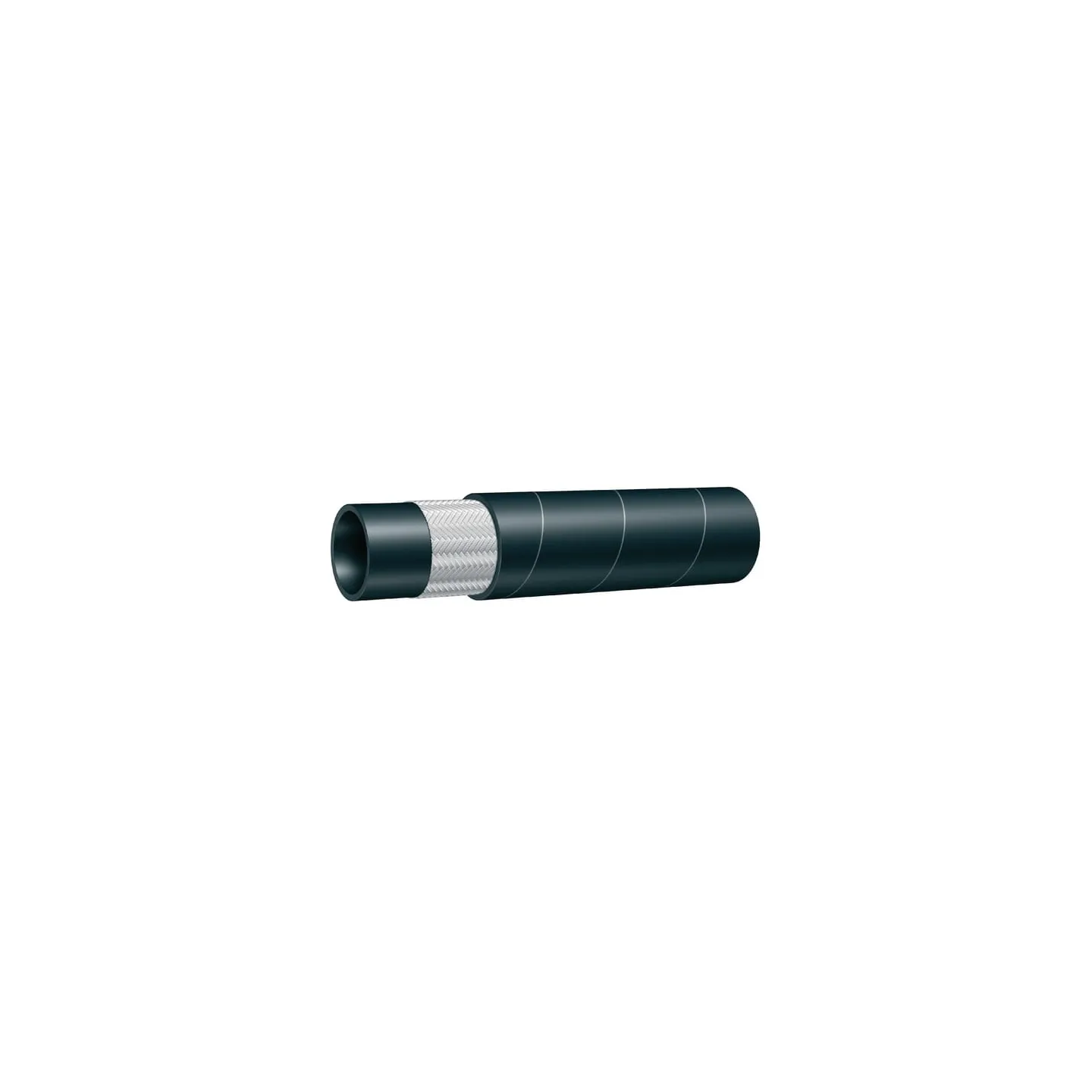

Hydraulic hose 2TE-DN16 2TEDN16

Name: Hydraulic hose 2TE-DN16 2TEDN16
Brand: Alfagomma
SKU: 2TEDN16
Price: 10.29 EUR
Availability: InStock

Payment options

€10.29

Tax included

4-5 Working days

Hydraulic hose 2TE-DN16 2TEDN16 Alfagomma

IN WAREHOUSE

ID: 81907

Description

Part number	2TEDN16
EAN
Unit	Metre
Qty. Rounding	0.01
Pros	Light and flexible hose Highly wear-resistant outer coating
Product details	Hydraulic hose rubber with 1 braided textile inlay with high tensile strength Medium-pressure hose Hydraulic systems, heating oil, antifreeze solutions, air and water Durable outer coating resistant to ozone and oil Standard according to: EN 854-2TE Constant operating temperature -40°C + 100°C. For air T. max = +70°C Available lengths: random
Long description	Application range: Hose for medium-pressure ranges Hydraulic systems, heating oil, antifreeze solutions, air and water Benefits: Light, flexible hose with extremely wear-resistant outer coating Detail
Hose inside diameter	5/8 Inch
Hose inside diameter	15.9 mm
Max working pressure	50 BAR
Material inside	Synthetic rubber
Bend radius	90 mm
Weight	0.29 kg/m
Type	Hydraulic high pressure hose
DN	16 mm
Hose outside diameter	23.9 mm
Burst pressure	200 BAR
Medium	Hydraulic oil
Max working temperature	100 °C
Min working temperature	-40 °C
Material outside	Synthetic rubber
Reinforcement type	Braid
Reinforcement number of plies	1
Reinforcement material	Textile
Number of plies	1
EN standard	854 2TE
Additional info	*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
