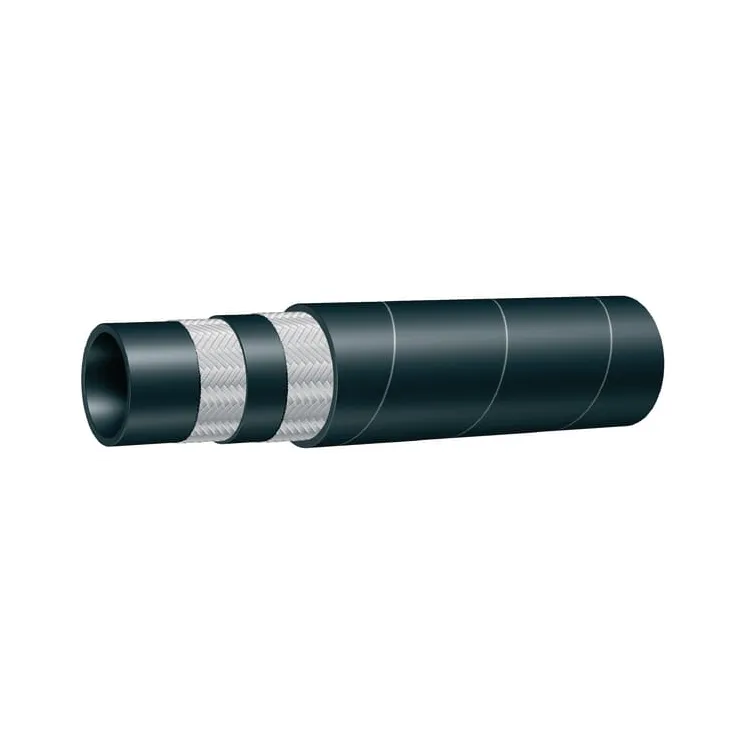

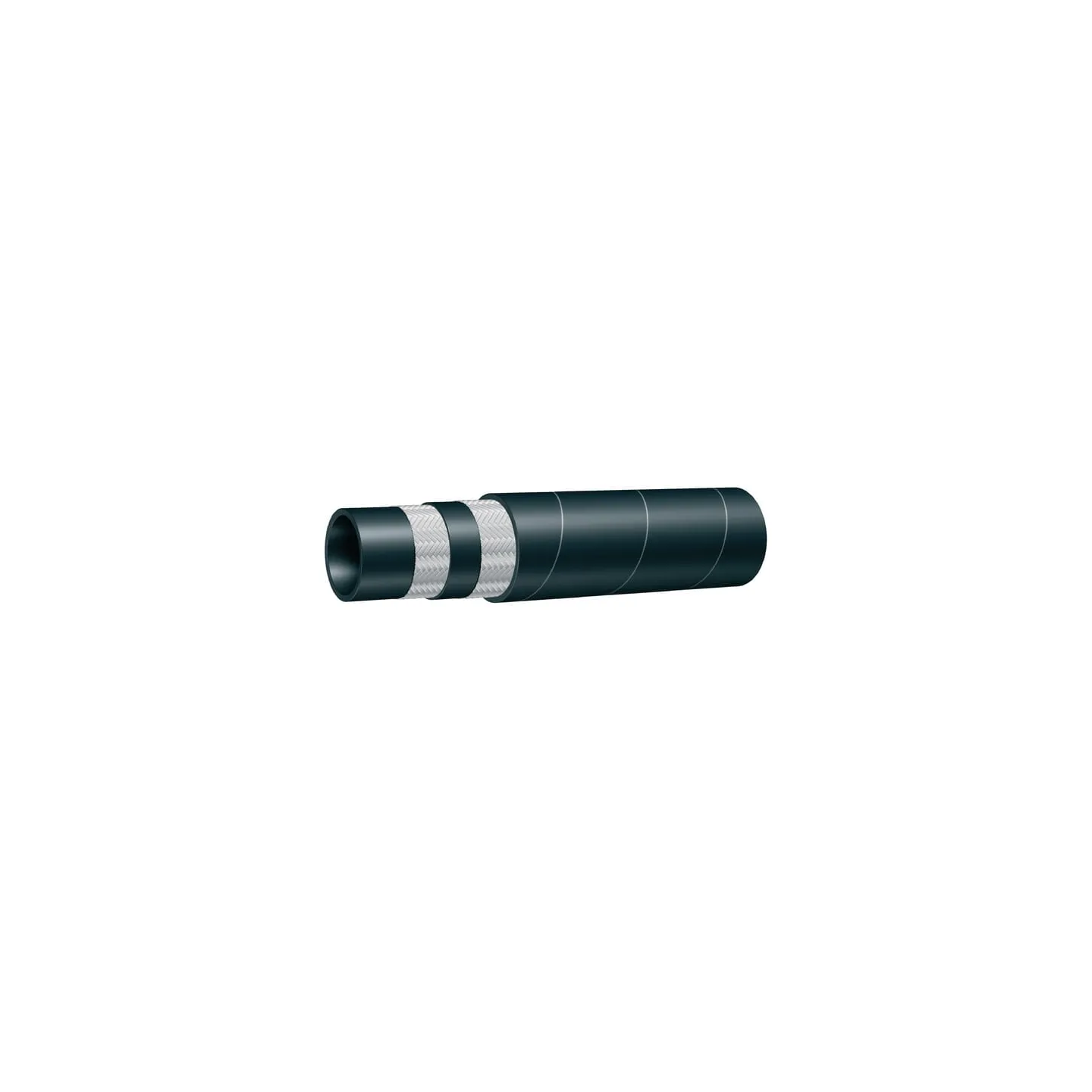

Hydraulic hose 3TE-DN31 3TEDN31

Name: Hydraulic hose 3TE-DN31 3TEDN31
Brand: Alfagomma
SKU: 3TEDN31
Price: 43.31 EUR
Availability: InStock

Payment options

€43.31

Tax included

4-5 Working days

Hydraulic hose 3TE-DN31 3TEDN31 Alfagomma

IN WAREHOUSE

ID: 82092

Description

Part number	3TEDN31
EAN
Unit	Metre
Qty. Rounding	0.01
Pros	Light, flexible hose with extremely wear-resistant outer coating
Product details	Hydraulic hose rubber with 2 braided textile inlays with high tensile strength Medium-pressure hose Hydraulic systems, heating oil, antifreeze solutions, air and water Durable outer coating resistant to ozone and oil Standard according to: EN 854-3TE Constant operating temperature -40°C + 100°C. For air T. max = +70°C Available lengths: random
Hose inside diameter	1-1/4 Inch
Hose inside diameter	31.75 mm
Max working pressure	45 BAR
Material inside	Synthetic rubber
Bend radius	190 mm
Weight	0.74 kg/m
Type	Hydraulic high pressure hose
DN	31 mm
Hose outside diameter	42.3 mm
Burst pressure	180 BAR
Medium	Hydraulic oil
Max working temperature	100 °C
Min working temperature	-40 °C
Material outside	Synthetic rubber
Reinforcement type	Braid
Reinforcement number of plies	2
Reinforcement material	Textile
