| Part number | ABTEV4KDN404S | |
|---|---|---|
| EAN | ||
| Unit | Metre | |

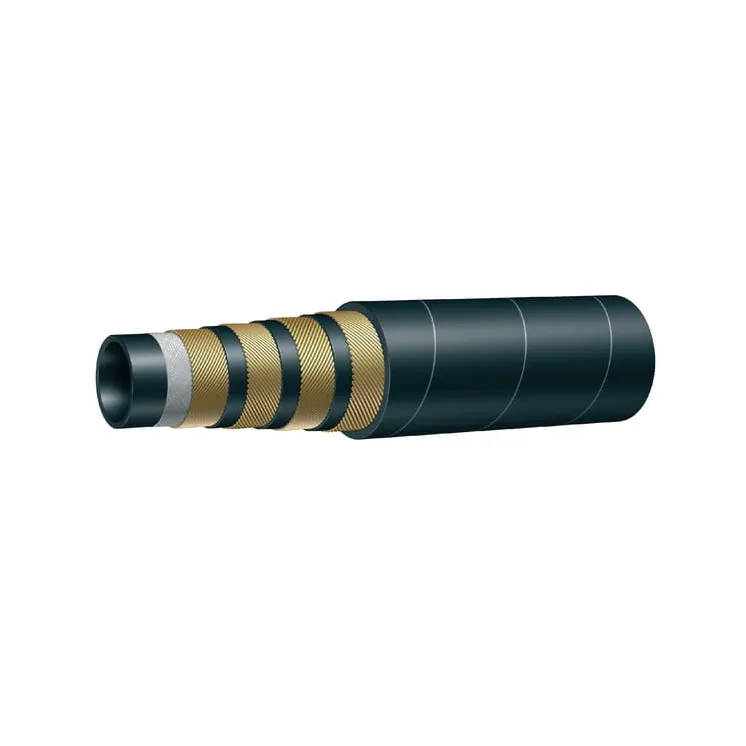

| Long description | The updated Alfabiotech 4K 280 bar Evolution is stronger and more flexible than before. With its extremely small bending radius, which exceeds the standard by up to 60%, it can be used practically anywhere. Limited installation space and high performance go hand in hand. The wear-resistant outer shell also ensures a longer service life and thus reduced maintenance and replacement costs. Show more | |
| Pros |
| |
| Product details |
| |
| Hose inside diameter | 1-1/2 Inch | |
| Hose inside diameter | 38 mm | |
| Max working pressure | 290 BAR | |
| Bend radius | 250 mm | |
| Hose outside diameter | 50.6 mm | |
| Hose outside diameter | 1.99 Inch | |
| Size | 40 | |
| Max working pressure | 4200 lbf/in² | |
| Burst pressure | 1160 BAR | |
| Burst pressure | 116 MPa | |
| Burst pressure | 16800 lbf/in² | |
| Max working temperature | 120 °C | |
| Max. working temperature | 250 °F | |
| Min working temperature | -40 °C | |
| Min. working temperature | -40 °F | |
| Number of plies | 4 | |
| Bend radius | 9.84 Inch | |
| ISO standard | 18752 |
