| Part number | ABTEV6KDN406S | |
|---|---|---|
| EAN | ||
| Unit | Metre | |

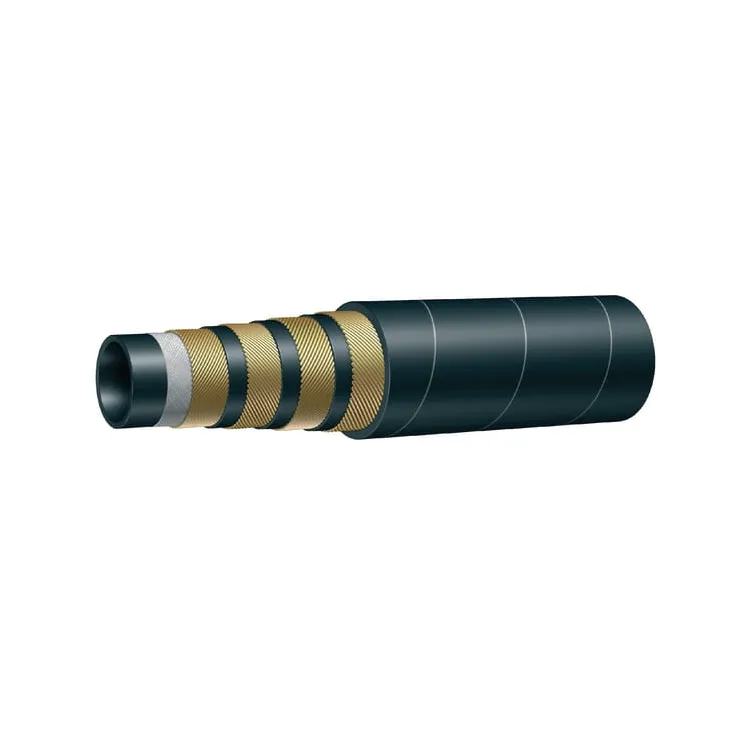

| Long description | The updated Alfabiotech 6K 420 bar Evolution is stronger and more flexible than before. With its extremely small bending radius, which exceeds the standard by up to 60%, it can be used practically anywhere. Limited installation space and high performance go hand in hand. The wear-resistant outer shell also ensures a longer service life and thus reduced maintenance and replacement costs. Show more | |
| Pros |
| |
| Product details |
| |
| Hose inside diameter | 1-1/2 Inch | |
| Hose inside diameter | 38 mm | |
| Max working pressure | 420 BAR | |
| Bend radius | 305 mm | |
| Hose outside diameter | 54.4 mm | |
| Hose outside diameter | 2.14 Inch | |
| Size | 40 | |
| Max working pressure | 6000 lbf/in² | |
| Burst pressure | 1680 BAR | |
| Burst pressure | 168 MPa | |
| Burst pressure | 24000 lbf/in² | |
| Max working temperature | 120 °C | |
| Max. working temperature | 250 °F | |
| Min working temperature | -40 °C | |
| Min. working temperature | -40 °F | |
| Reinforcement type | Spiral | |
| Reinforcement material | Steel | |
| Number of plies | 6 | |
| Bend radius | 12.01 Inch | |
| ISO standard | 18752 |
