| Part number | CR625A | |
|---|---|---|
| EAN | ||
| Unit | Metre | |
| Qty. Rounding | 0.01 | |

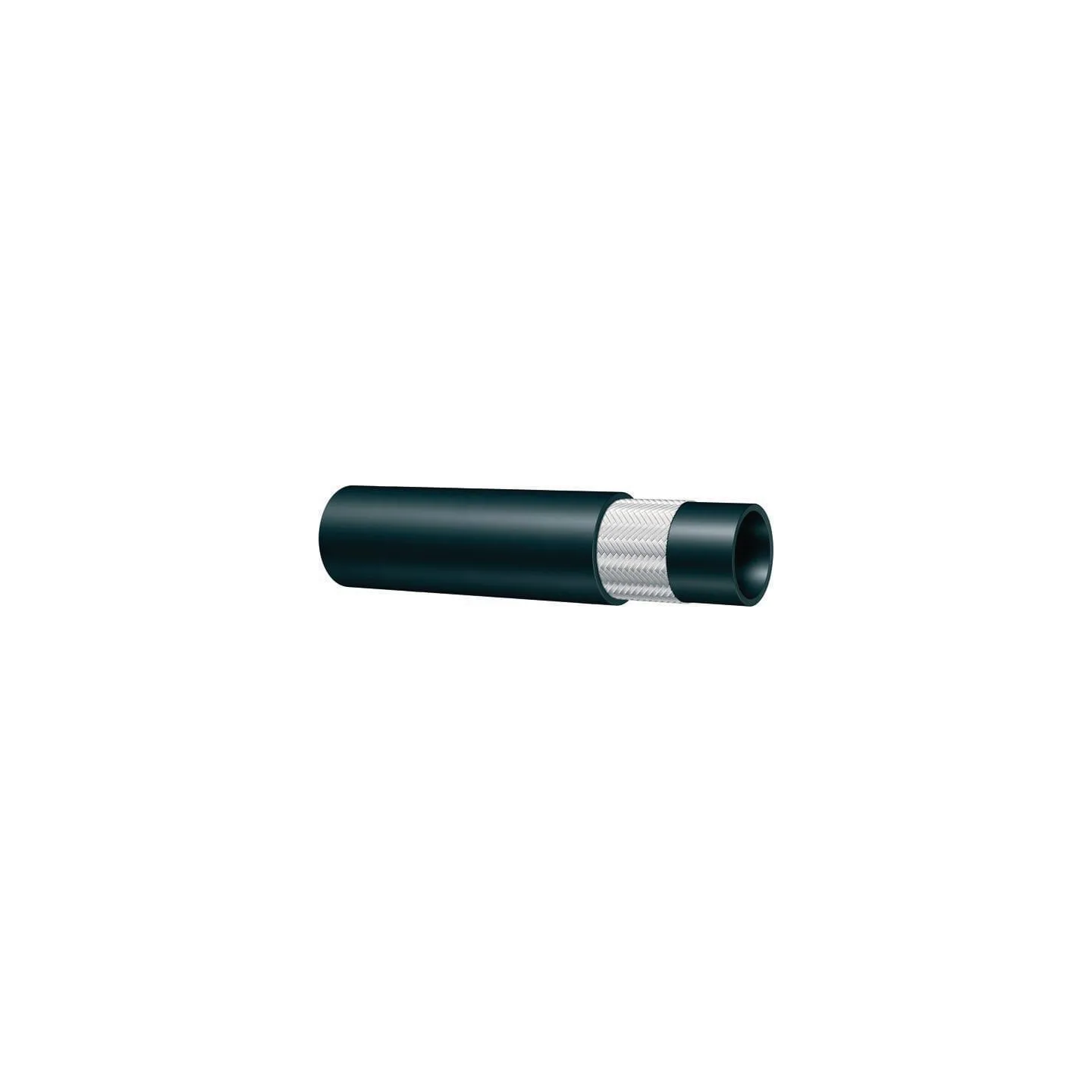

| Details | Rubber hydraulic hose with 1 ply of high-strength fabric mesh | |
| Application range |
| |
| Properties | Oil-resistant, smooth outer coating | |
| Technical info |
| |
| Benefits |
| |
| Hose inside diameter | 1 Inch | |
| Hose inside diameter | 25 mm | |
| Max working pressure | 17 BAR | |
| Bend radius | 203 mm | |
| Weight | 0.476 kg/m | |
| Type |
| |
| Type code | CR6 | |
| DN | 25 mm | |
| Hose outside diameter | 33.5 mm | |
| Hose outside diameter | 1.32 Inch | |
| Max working pressure | 250 lbf/in² | |
| Burst pressure | 70 BAR | |
| Burst pressure | 7 MPa | |
| Burst pressure | 1000 lbf/in² | |
| Max working temperature | 100 °C | |
| Max. working temperature | 212 °F | |
| Min working temperature | -70 °C | |
| Min. working temperature | -40 °F | |
| Reinforcement type | Braid | |
| Reinforcement number of plies | 1 | |
| Reinforcement material | High tensile textile | |
| Weight | 0.32 lb/ft | |
| Bend radius | 7.99 Inch | |
| EN standard | 854 R6 | |
| Additional info | *Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver. |
