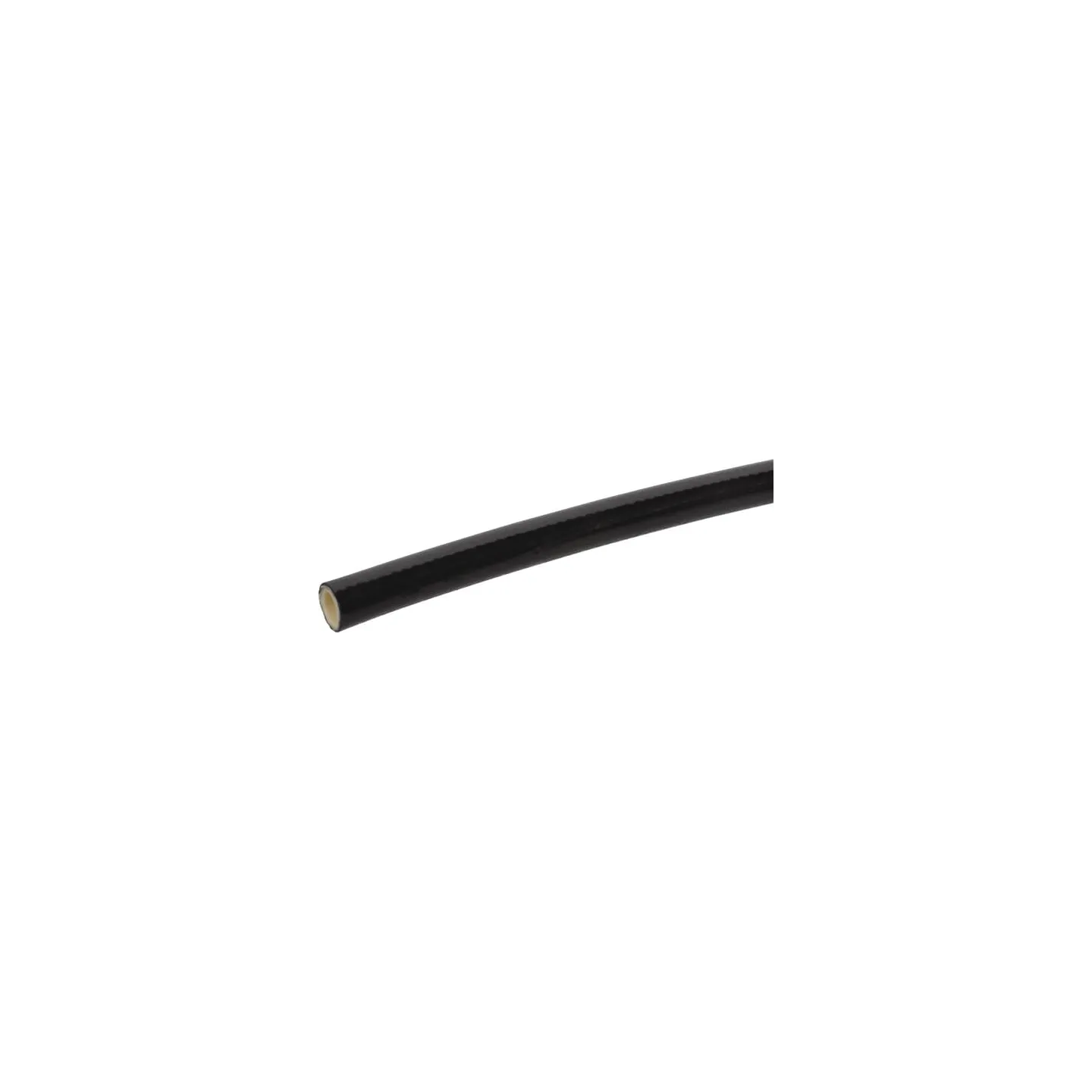

SAE hose 100 R7 3/8 CR710A

Name: SAE hose 100 R7 3/8 CR710A
Brand: Alfagomma
SKU: CR710A
Price: 11.13 EUR
Availability: InStock

Payment options

€11.13

Tax included

4-5 Working days

SAE hose 100 R7 3/8 CR710A Alfagomma

IN WAREHOUSE

ID: 87365

Description

Product Details

Security policy
100% Secure payments

Delivery policy
Insured worldwide delivery

Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.

Part number	CR710A
EAN
Unit	Metre
Qty. Rounding	0.01
Details	Plastic hydraulic hose with 1 layer of high-strength synthetic fibre mesh
Application range	Medium pressure hydraulic systems Forklifts Lifting platforms Hose reels Mineral oil-based and glycol-based fluids Vegetable and mineral lubricants Crude oils, coolant, compressed air
Properties	Light, thin hose for relatively high operating pressure Very low bending radius Oil-resistant, smooth outer coating Thermoplastic hose
Technical info	Temperature for mineral oil based liquids: -40°C to +100°C Temperature for synthetic hydraulic fluids and water-based liquids: -40°C to +57°C Available lengths: by the metre
Benefits	Light, thin and flexible hose for relatively high operating pressure Precisely co-ordinated pressure and return flow
Hose inside diameter	3/8 Inch
Hose inside diameter	10 mm
Max working pressure	160 BAR
Material inside	Polyester elastomer
Bend radius	55 mm
Weight	0.145 kg/m
Type	Hydraulic high pressure hose
DN	10 mm
Hose outside diameter	16 mm
Hose outside diameter	0.63 Inch
Max working pressure	2320 lbf/in²
Burst pressure	640 BAR
Burst pressure	64 MPa
Burst pressure	9280 lbf/in²
Medium	Hydraulic oil
Max working temperature	100 °C
Max. working temperature	212 °F
Min working temperature	-40 °C
Min. working temperature	-40 °F
Material outside	Polyurethane
Reinforcement type	Braid
Reinforcement material	Textile
Weight	0.1 lb/ft
Bend radius	2.17 Inch
ISO standard	3949-1
EN standard	855 R7
Crimping diameter range	18.5-18.7 mm
Original number equivalent	1000293
