SAE hose 100 R7 1/4 CR76A Alfagomma
search
  • SAE hose 100 R7 1/4 CR76A Alfagomma

SAE hose 100 R7 1/4 CR76A

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€5.38
Tax included
4-5 Working days
SAE hose 100 R7 1/4 CR76A Alfagomma
IN WAREHOUSE

87375

  • Brand
    Alfagomma
  • Reference
    CR76A
  • In stock
    5 Items
  • Condition
    New
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
CR76A
EAN
Unit
Metre
Qty. Rounding
0.01
Details

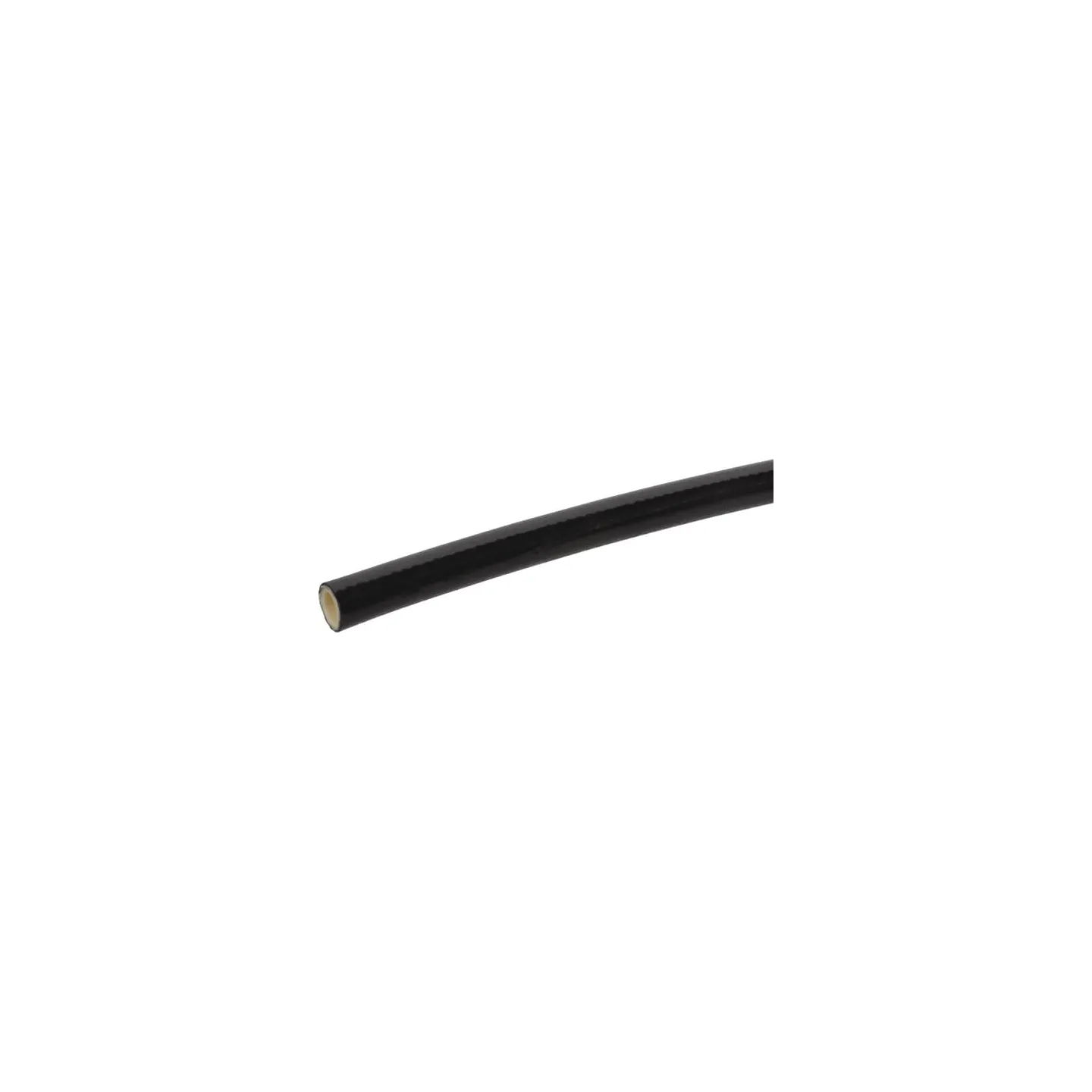

Plastic hydraulic hose with 1 layer of high-strength synthetic fibre mesh
Application range
  • Medium pressure hydraulic systems
  • Forklifts
  • Lifting platforms
  • Hose reels
  • Mineral oil-based and glycol-based fluids
  • Vegetable and mineral lubricants
  • Crude oils, coolant, compressed air
Properties
  • Light, thin hose for relatively high operating pressure
  • Very low bending radius
  • Oil-resistant, smooth outer coating
  • Thermoplastic hose
Technical info
  • Temperature for mineral oil based liquids: -40°C to +100°C
  • Temperature for synthetic hydraulic fluids and water-based liquids: -40°C to +57°C
  • Available lengths: by the metre
Benefits
  • Light, thin and flexible hose for relatively high operating pressure
  • Precisely co-ordinated pressure and return flow
Hose inside diameter
1/4 Inch
Hose inside diameter
6 mm
Max working pressure
210 BAR
Material inside
Polyester
Bend radius
35 mm
Weight
0.1 kg/m
Type
Hydraulic high pressure hose
DN
6 mm
Hose outside diameter
12.2 mm
Hose outside diameter
0.48 Inch
Max working pressure
3000 lbf/in²
Burst pressure
840 BAR
Burst pressure
84 MPa
Burst pressure
12000 lbf/in²
Medium
Hydraulic oil
Max working temperature
100 °C
Max. working temperature
212 °F
Min working temperature
-40 °C
Min. working temperature
-40 °F
Material outside
Polyurethane
Reinforcement type
Braid
Reinforcement material
Textile
Weight
0.07 lb/ft
Bend radius
1.38 Inch
EN standard
855 R7
Crimping diameter range
14.0-14.2 mm
Original number equivalent
1000291
Additional info
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
