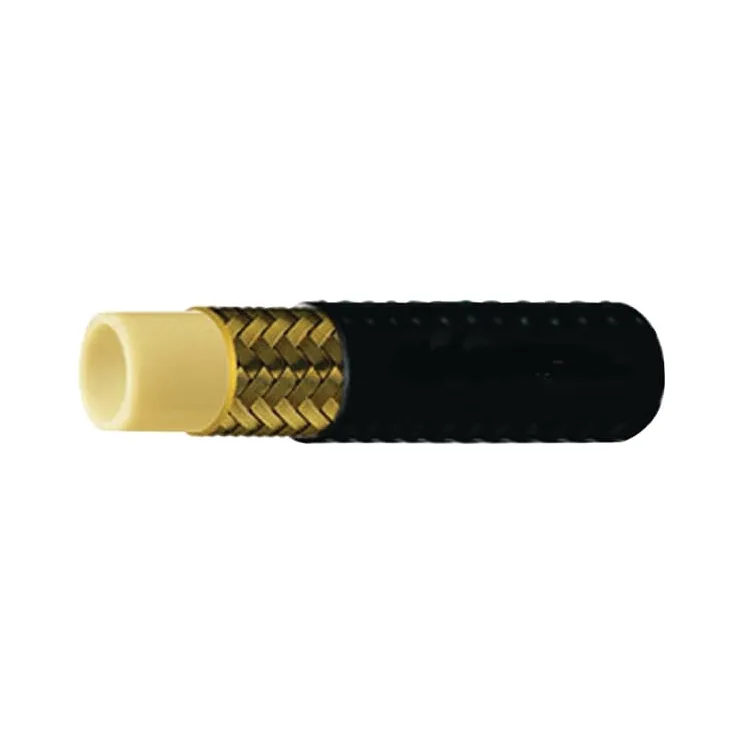

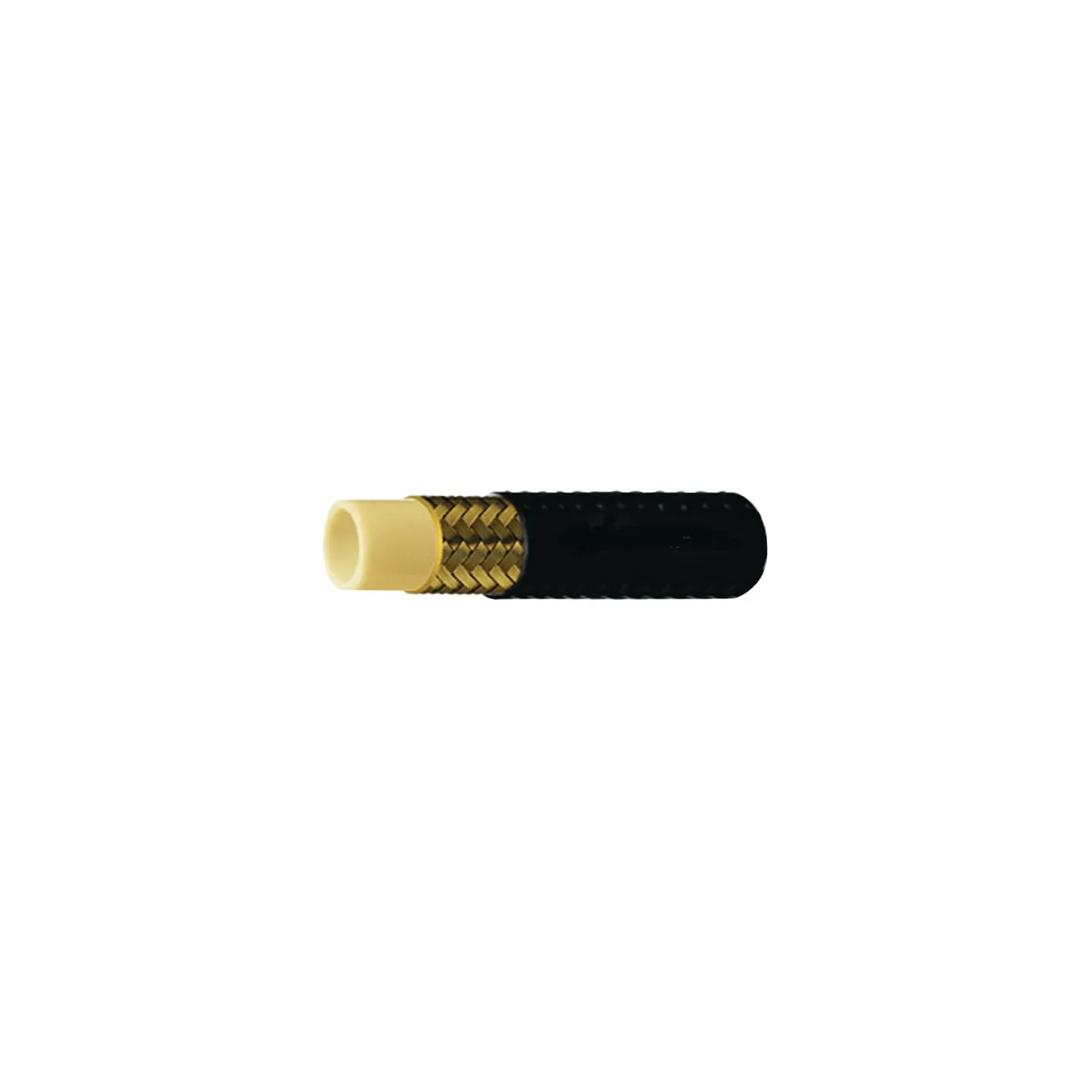

Hose TWB 3/16 CR85A

Name: Hose TWB 3/16 CR85A
Brand: Alfagomma
SKU: CR85A
Price: 7.66 EUR
Availability: InStock

Payment options

€7.66

Tax included

4-5 Working days

Hose TWB 3/16 CR85A Alfagomma

IN WAREHOUSE

ID: 87379

Description

Part number	CR85A
EAN
Unit	Metre
Qty. Rounding	0.01
Long description	Hydraulic hose CR 8
Details	Plastic hydraulic hose with 1 ply of high-strength steel wire mesh
Application range	High pressure hydraulic systems Machine tools Servo controls Mineral oil-based and glycol-based fluids Vegetable and mineral lubricants Crude oils, coolant, compressed air
Properties	Very low bending radius Oil-resistant, smooth outer coating Thermoplastic hose
Technical info	Temperature for mineral oil based liquids: 100°C Temperature for synthetic hydraulic fluids and water-based liquids: 57°C Available lengths: by the metre
Benefits	Light, thin and flexible hose for relatively high operating pressure
Hose inside diameter	3/16 Inch
Hose inside diameter	4.76 mm
Max working pressure	360 BAR
Material inside	Polyester
Bend radius	30 mm
Weight	0.11 kg/m
Type	Hydraulic high pressure hose
DN	5 mm
Hose outside diameter	9.4 mm
Burst pressure	1440 BAR
Medium	Hydraulic oil
Max working temperature	100 °C
Min working temperature	-40 °C
Material outside	Polyurethane
Reinforcement type	Braid
Reinforcement number of plies	1
Reinforcement material	Steel
Original number equivalent	1000282
Additional info	*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
