Hose TWB 1/2 CR813A Alfagomma
search
  • Hose TWB 1/2 CR813A Alfagomma

Hose TWB 1/2 CR813A

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€14.40
Tax included
4-5 Working days
Hose TWB 1/2 CR813A Alfagomma
IN WAREHOUSE

87380

Part number
CR813A
EAN
Unit
Metre
Qty. Rounding
0.01
Long description
Hydraulic hose CR 8
Details

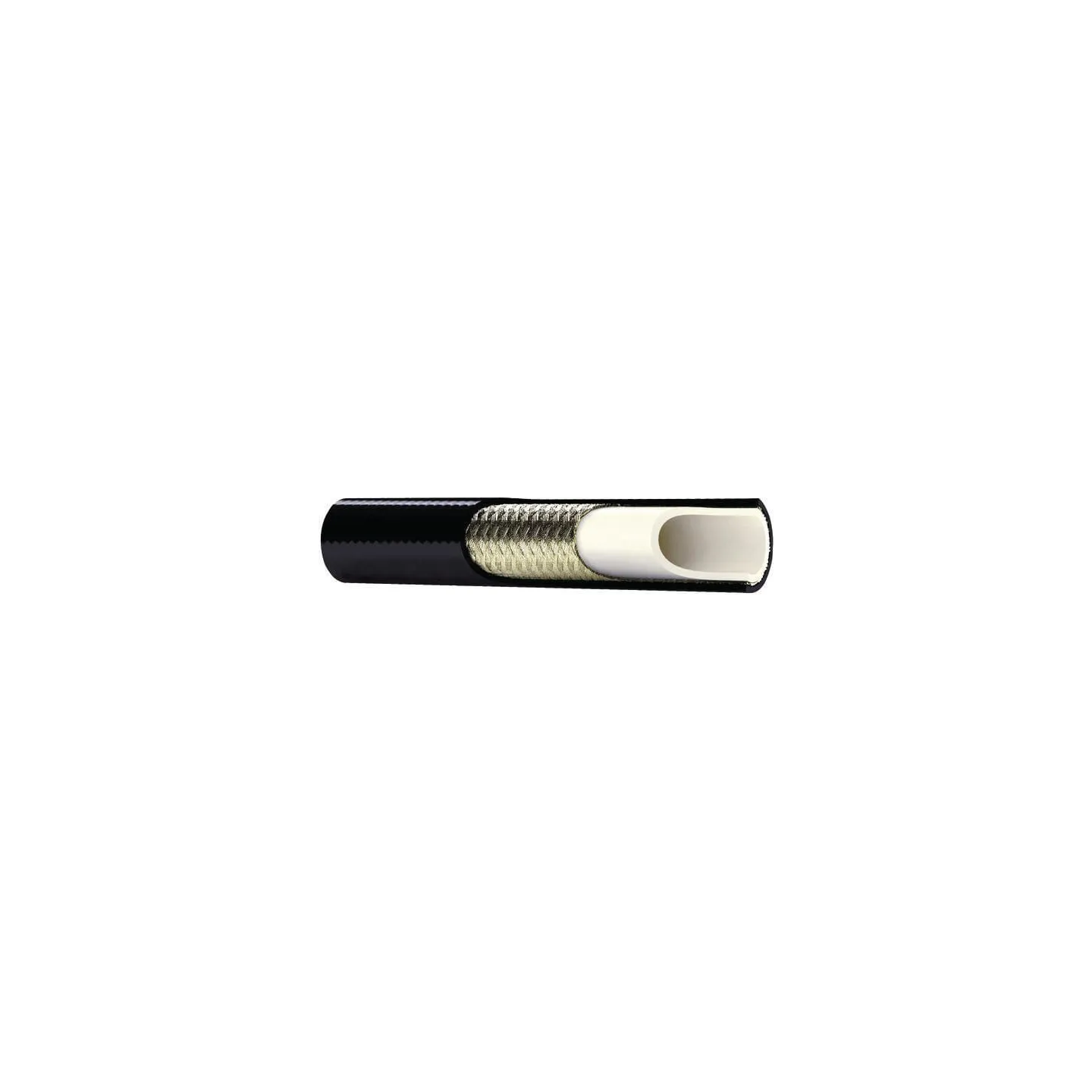

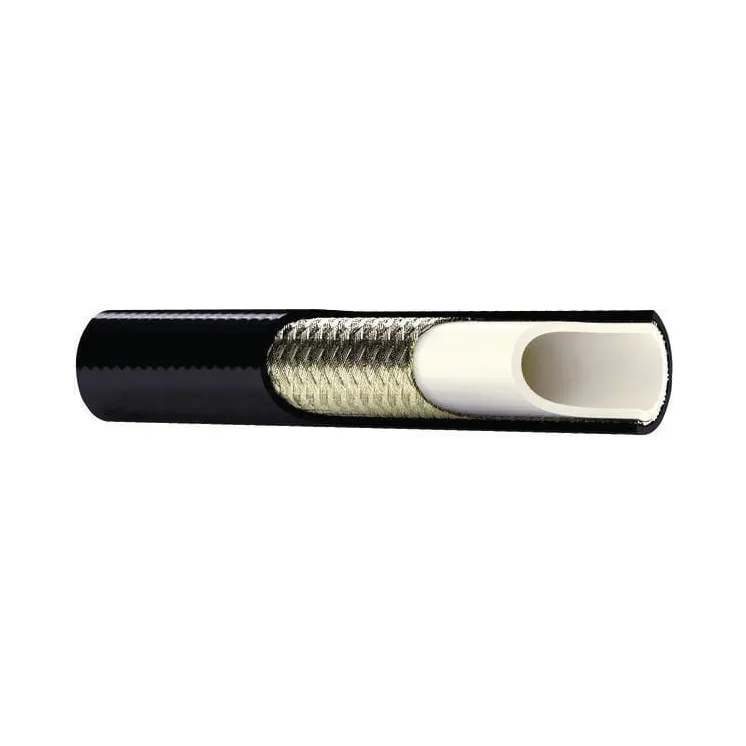

Plastic hydraulic hose with 1 ply of high-strength steel wire mesh
Application range
  • High pressure hydraulic systems
  • Machine tools
  • Servo controls
  • Mineral oil-based and glycol-based fluids
  • Vegetable and mineral lubricants
  • Crude oils, coolant, compressed air
Properties
  • Very low bending radius
  • Oil-resistant, smooth outer coating
  • Thermoplastic hose
Technical info
  • Temperature for mineral oil based liquids: 100°C
  • Temperature for synthetic hydraulic fluids and water-based liquids: 57°C
  • Available lengths: by the metre
Benefits
Light, thin and flexible hose for relatively high operating pressure
Hose inside diameter
1/2 Inch
Hose inside diameter
13 mm
Max working pressure
190 BAR
Material inside
Polyester
Bend radius
85 mm
Weight
0.3 kg/m
Type
Hydraulic high pressure hose
DN
13 mm
Hose outside diameter
18.8 mm
Burst pressure
760 BAR
Medium
Hydraulic oil
Max working temperature
100 °C
Min working temperature
-40 °C
Material outside
Polyurethane
Reinforcement type
Braid
Reinforcement number of plies
1
Reinforcement material
Steel
Original number equivalent
1000286
  • Brand
    Alfagomma
  • Reference
    CR813A
  • In stock
    5 Items
  • Condition
    New
