SAE hose 100-R7 5/16 twin CR788A Alfagomma
search
  • SAE hose 100-R7 5/16 twin CR788A Alfagomma

SAE hose 100-R7 5/16 twin CR788A

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€20.00
Tax included
4-5 Working days
SAE hose 100-R7 5/16 twin CR788A Alfagomma
IN WAREHOUSE

87381

  • Brand
    Alfagomma
  • Reference
    CR788A
  • In stock
    5 Items
  • Condition
    New
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
CR788A
EAN
Unit
Metre
Qty. Rounding
0.01
Long description

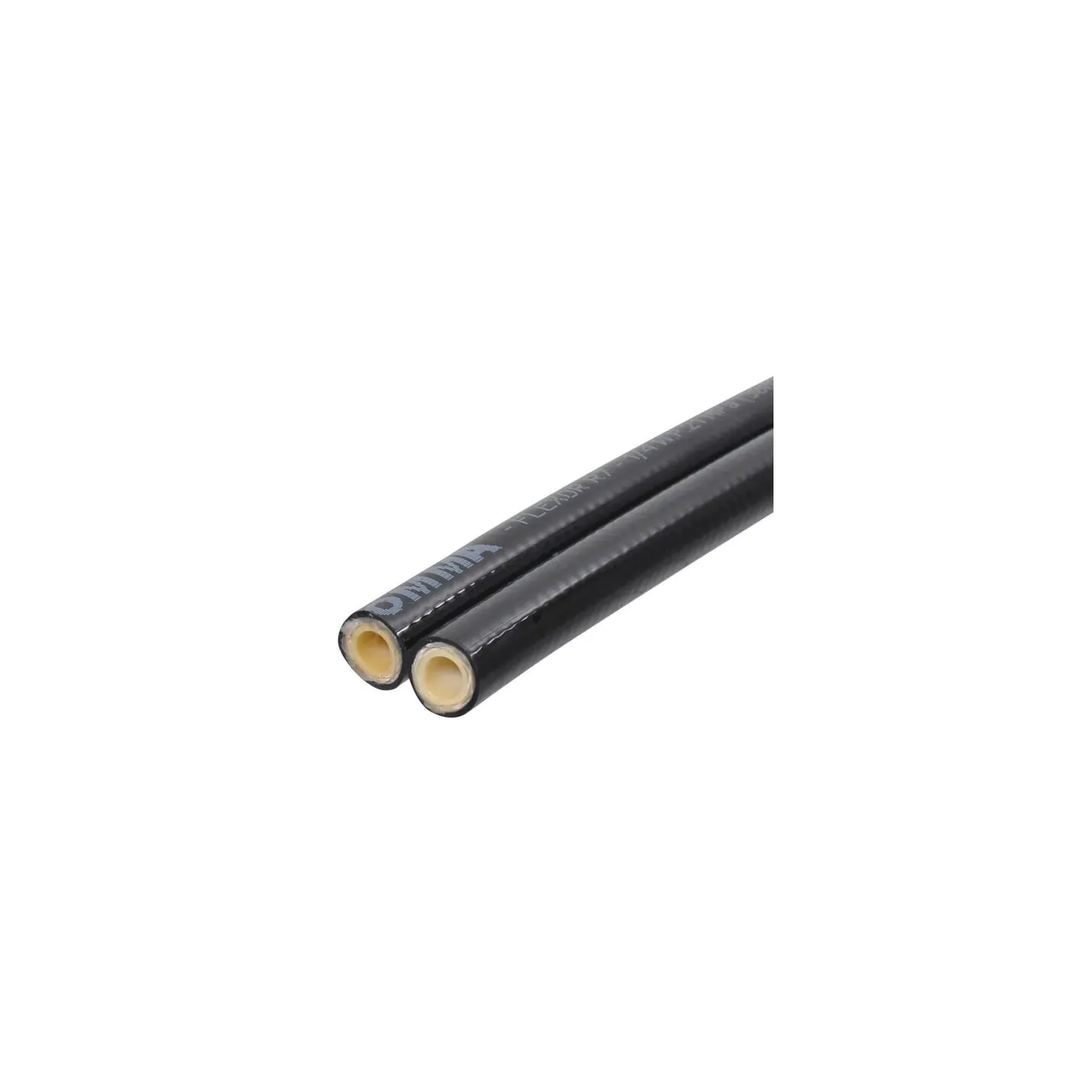

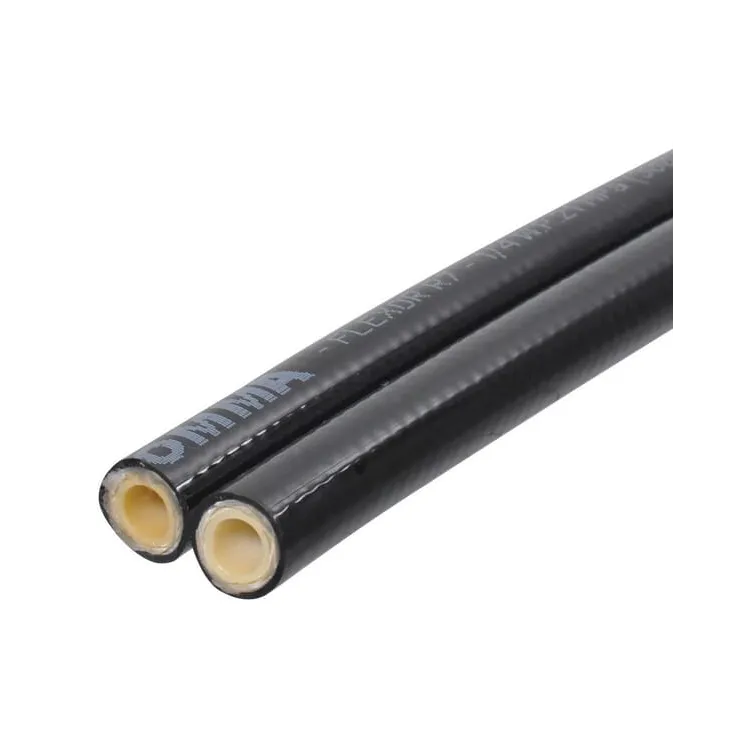

Hydraulic hose CR 7 Siamese
Details
  • Plastic hydraulic hose with 1 layer of high-strength synthetic fibre mesh
  • Double hose made from two separate, firmly connected hoses
Application range
  • Medium pressure hydraulic systems
  • Forklifts
  • Lifting platforms
  • Hose reels
  • Mineral oil-based and glycol-based fluids
  • Vegetable and mineral lubricants
  • Crude oils, coolant, compressed air
Properties
  • Light, thin hose for relatively high operating pressure
  • Very low bending radius
  • Oil-resistant, smooth outer coating
  • Thermoplastic hose
Technical info
  • Temperature for mineral oil based liquids: -40°C to +100°C
  • Temperature for synthetic hydraulic fluids and water-based liquids: -40°C to +57°C
  • Available lengths: by the metre
Benefits
  • Light, thin and flexible hose for relatively high operating pressure
  • Precisely co-ordinated pressure and return flow
Hose inside diameter
5/16 Inch
Hose inside diameter
8 mm
Max working pressure
175 BAR
Material inside
Polyester elastomer
Bend radius
45 mm
Weight
0.25 kg/m
Type
Hydraulic high pressure hose
DN
8 mm
Hose outside diameter
14.4 mm
Hose outside diameter
0.56 Inch
Max working pressure
2750 lbf/in²
Burst pressure
700 BAR
Burst pressure
76 MPa
Burst pressure
11000 lbf/in²
Medium
Hydraulic oil
Max working temperature
100 °C
Max. working temperature
212 °F
Min working temperature
-40 °C
Min. working temperature
-40 °F
Material outside
Polyurethane
Reinforcement type
Braid
Reinforcement material
Syntal
Weight
0.18 lb/ft
Bend radius
1.77 Inch
Norm
SAE 100 R7
EN standard
855 R7
Original number equivalent
1000299
