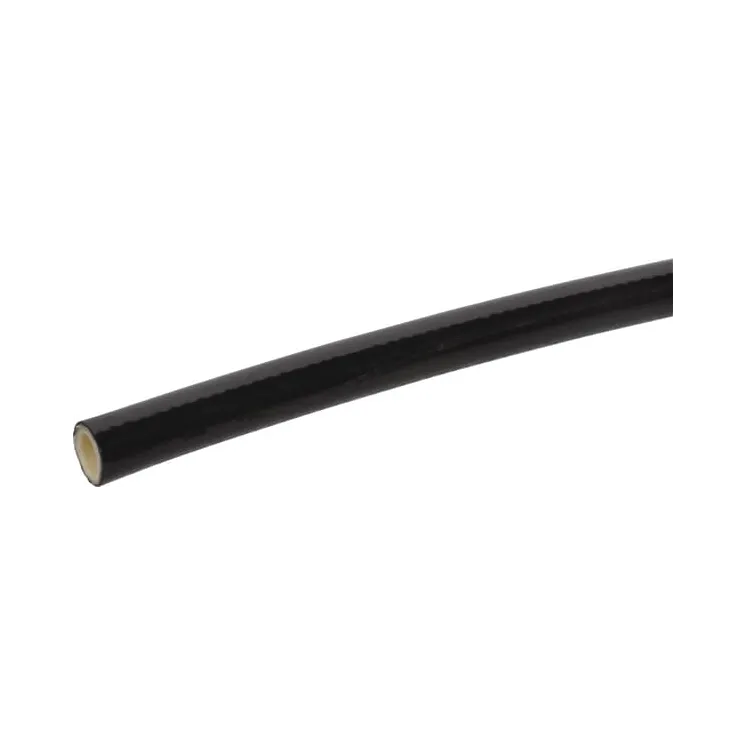

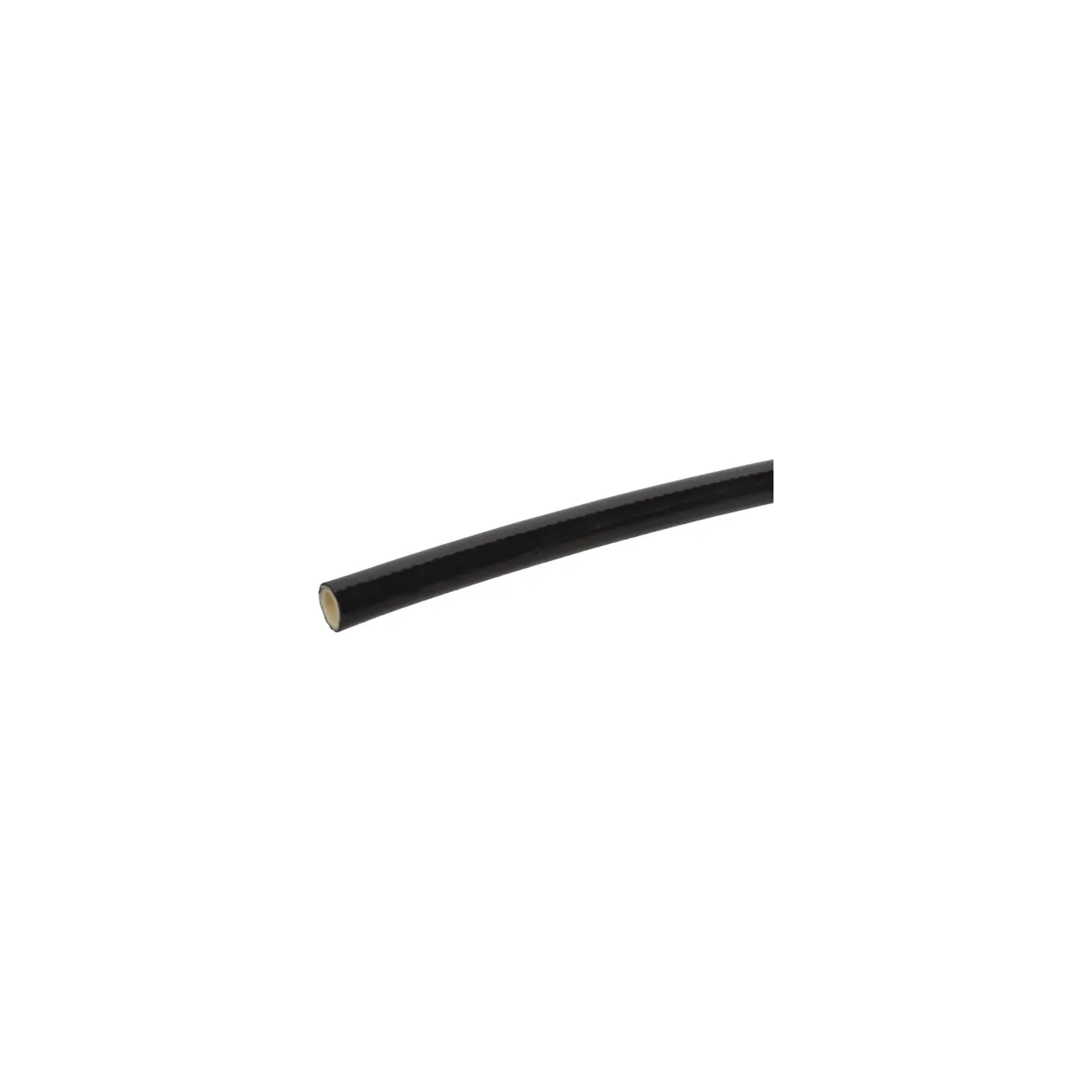

SAE hose 100 R7 3/16 CR75A

Name: SAE hose 100 R7 3/16 CR75A
Brand: Alfagomma
SKU: CR75A
Price: 4.94 EUR
Availability: InStock

Payment options

€4.94

Tax included

4-5 Working days

SAE hose 100 R7 3/16 CR75A Alfagomma

IN WAREHOUSE

ID: 87383

Description

Product Details

Security policy
100% Secure payments

Delivery policy
Insured worldwide delivery

Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.

Part number	CR75A
EAN
Unit	Metre
Qty. Rounding	0.01
Details	Plastic hydraulic hose with 1 layer of high-strength synthetic fibre mesh
Application range	Medium pressure hydraulic systems Forklifts Lifting platforms Hose reels Mineral oil-based and glycol-based fluids Vegetable and mineral lubricants Crude oils, coolant, compressed air
Properties	Light, thin hose for relatively high operating pressure Very low bending radius Oil-resistant, smooth outer coating Thermoplastic hose
Technical info	Temperature for mineral oil based liquids: -40°C to +100°C Temperature for synthetic hydraulic fluids and water-based liquids: -40°C to +57°C Available lengths: by the metre
Benefits	Light, thin and flexible hose for relatively high operating pressure Precisely co-ordinated pressure and return flow
Hose inside diameter	3/16 Inch
Hose inside diameter	5 mm
Max working pressure	210 BAR
Material inside	Polyester
Bend radius	25 mm
Weight	0.06 kg/m
Type	Hydraulic high pressure hose
DN	5 mm
Hose outside diameter	9.6 mm
Hose outside diameter	0.38 Inch
Max working pressure	3000 lbf/in²
Burst pressure	840 BAR
Burst pressure	84 MPa
Burst pressure	12000 lbf/in²
Medium	Hydraulic oil
Max working temperature	100 °C
Max. working temperature	212 °F
Min working temperature	-40 °C
Min. working temperature	-40 °F
Material outside	Polyurethane
Reinforcement type	Braid
Reinforcement material	Textile
Weight	0.05 lb/ft
Bend radius	0.98 Inch
EN standard	855 R7
Crimping diameter range	11.9-12.1 mm
Original number equivalent	1000290
