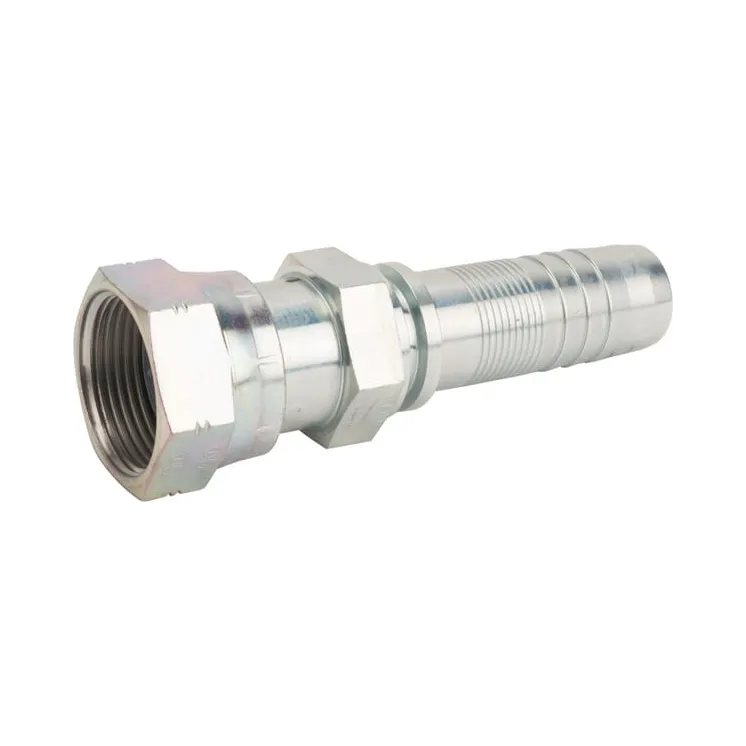

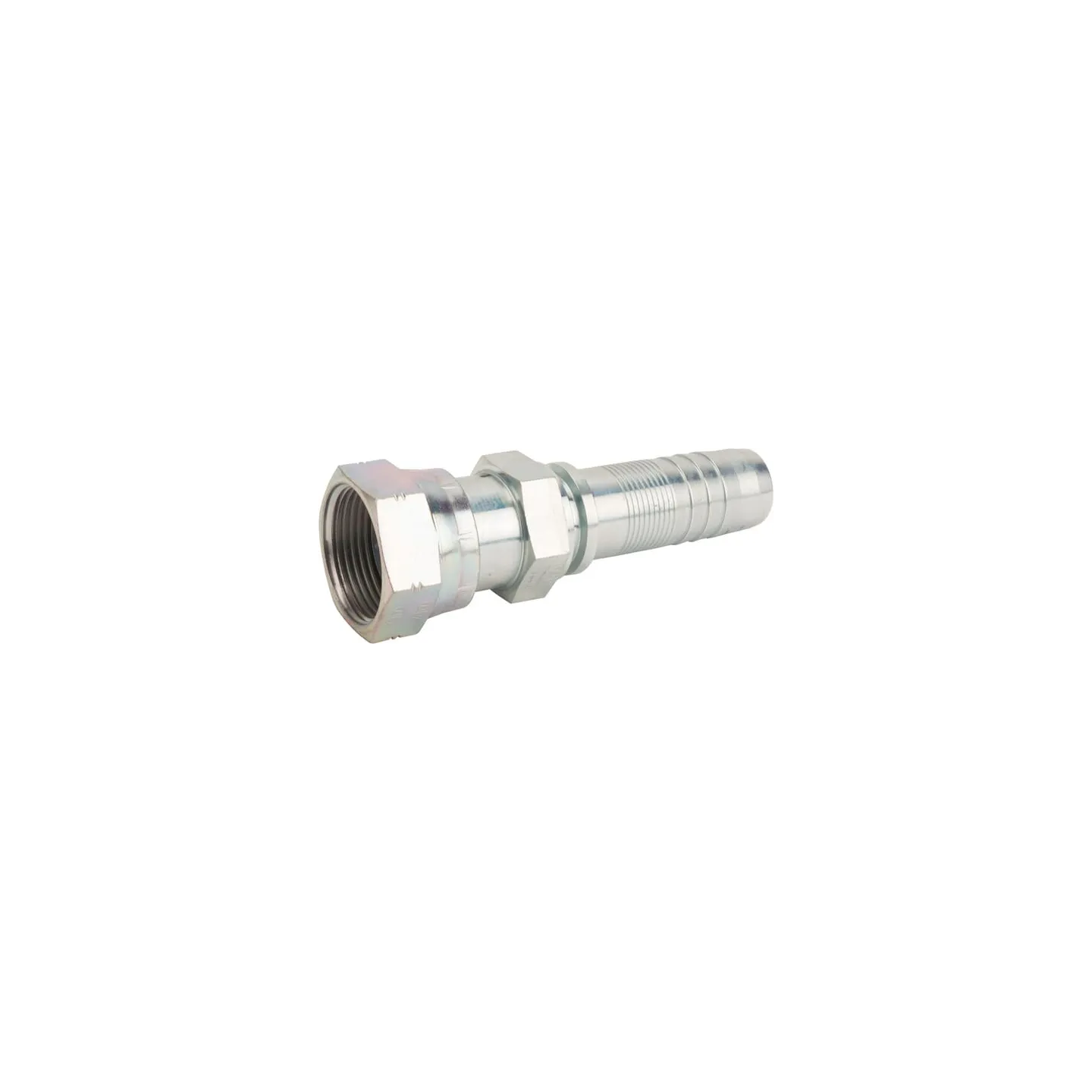

Insert F NS-DN25-1.7/16ORFS DAVNS2523 Alfagomma
search
  • Insert F NS-DN25-1.7/16ORFS DAVNS2523 Alfagomma

Insert F NS-DN25-1.7/16ORFS DAVNS2523

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€30.08
Tax included
On Request
Insert F NS-DN25-1.7/16ORFS DAVNS2523 Alfagomma
ON REQUEST

87402

Part number
DAVNS2523
EAN
Unit
Each
Long description
Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros
  • Press fittings help ensure faster and easier hose assembly and help to save costs.
  • Processing produces less dirt, smell and waste.
  • No special tool needed to skive the hose.
Product details
  • The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses.
  • With these press fittings, there is no need to skive the inner and outer casing.
Connection 2, diameter
1 Inch
Connection 2, diameter
25 mm
Connection 2, type
Hose end
Connection 2, type - male/female
Male
CConnection centre to insert distance
52.5 mm
F1Connection no 1 thread diameter
1-7/16 Inch
Connection no 1 type - male/female
Female
Connection no 1 type
Swivel nut
CH1Connection no 1 wrench size
41.0 mm
Shape
Straight - 2 connection sides
  • Brand
    Alfagomma
  • Reference
    DAVNS2523
  • Condition
    New
