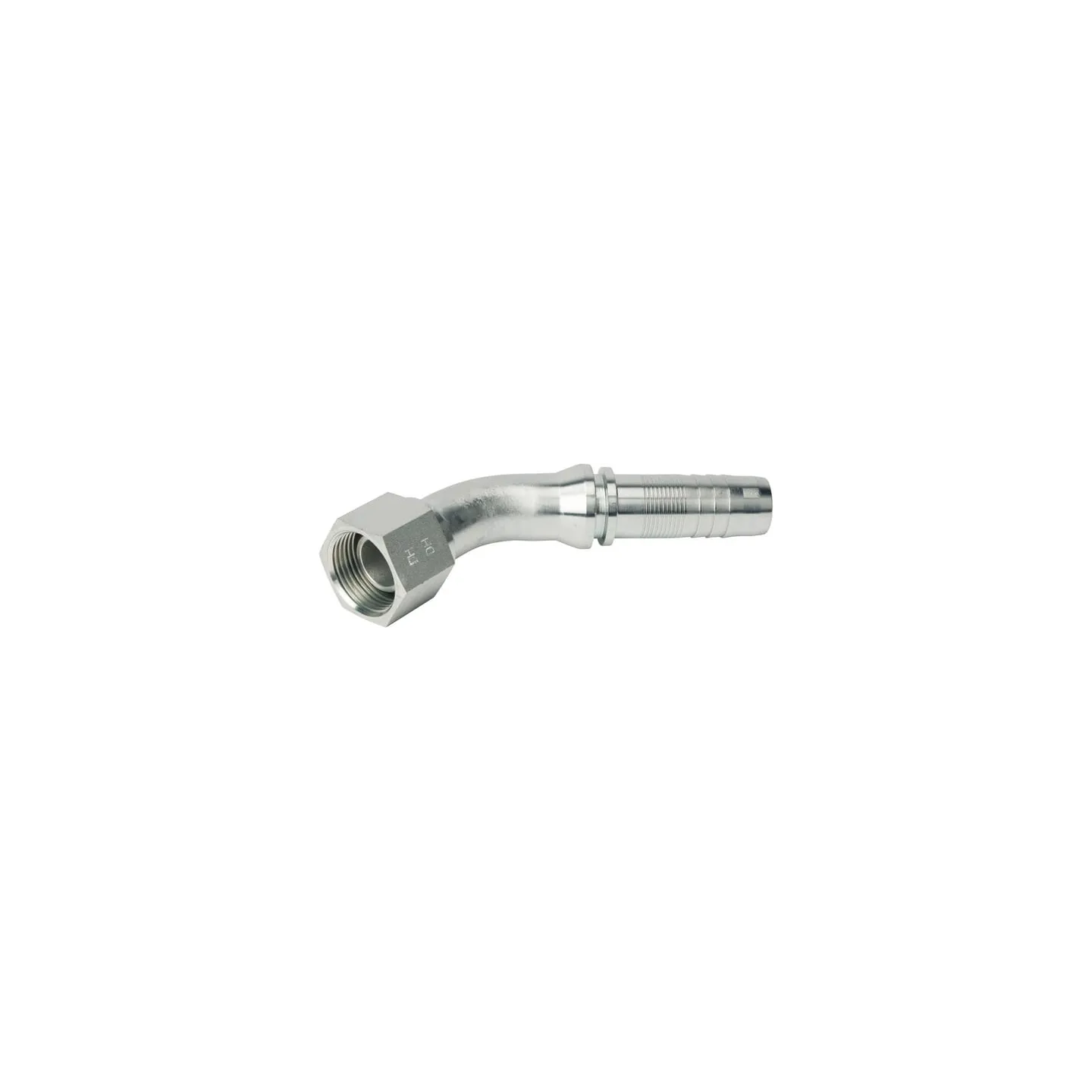

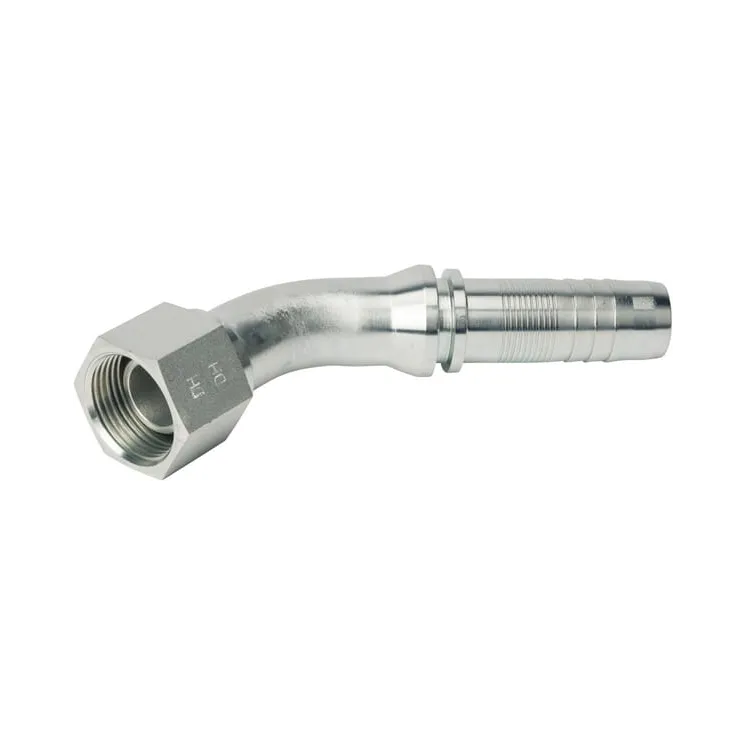

Insert F NS-DN25-1BSP45° DKRNS251645 Alfagomma
ON REQUEST

87650

Part number
DKRNS251645
EAN
Unit
Each
Long description
Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros
  • Press fittings help ensure faster and easier hose assembly and help to save costs.
  • Processing produces less dirt, smell and waste.
  • No special tool needed to skive the hose.
Product details
  • The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses.
  • With these press fittings, there is no need to skive the inner and outer casing.
Angle
45 °
DConnection 2, centre to end distance
40 mm
Connection 2, diameter
1 Inch
Connection 2, diameter
25 mm
Connection 2, type
Hose end
Connection 2, type - male/female
Male
CConnection centre to insert distance
92.1 mm
F1Connection no 1 thread diameter
1 Inch
Connection no 1 threads per inch
11
Connection no 1 type - male/female
Female
Connection no 1 type
O-ring cone
CH1Connection no 1 wrench size
38.0 mm
Shape
Elbow - 2 connection sides
  • Brand
    Alfagomma
  • Reference
    DKRNS251645
  • Condition
    New
