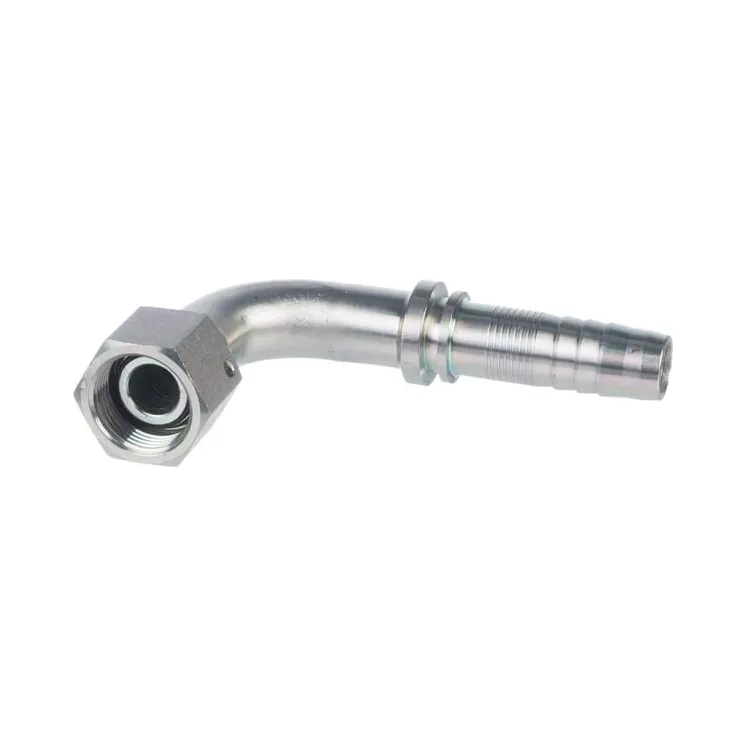

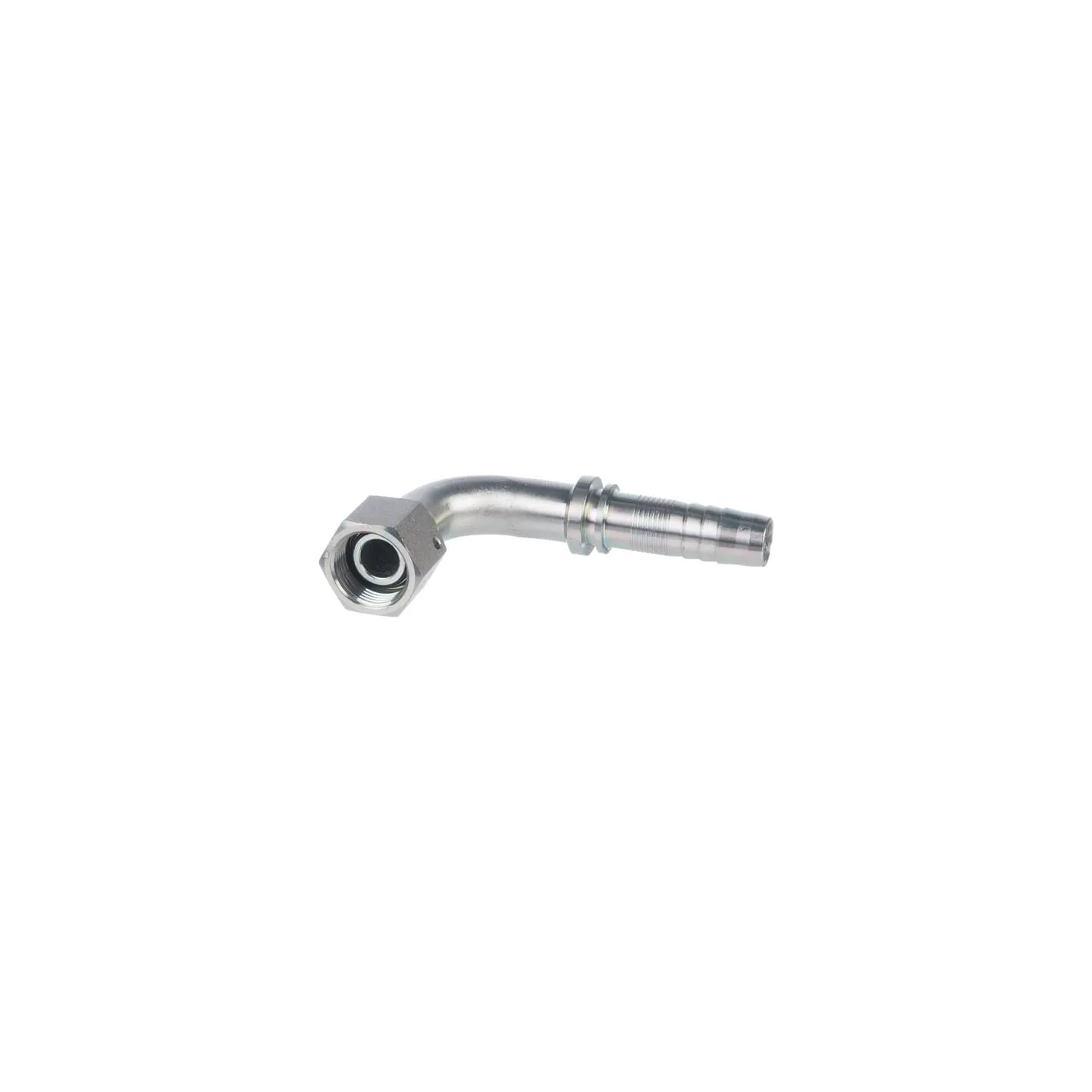

Insert F NS-DN20-3/4BSP90 DKRNS201290

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€23.69
Tax included
On Request
Insert F NS-DN20-3/4BSP90 DKRNS201290 Alfagomma
ON REQUEST

87762

Part number
DKRNS201290
EAN
Unit
Each
Long description
Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros
  • Press fittings help ensure faster and easier hose assembly and help to save costs.
  • Processing produces less dirt, smell and waste.
  • No special tool needed to skive the hose.
Product details
  • The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses.
  • With these press fittings, there is no need to skive the inner and outer casing.
Angle
90 °
Connection 2, diameter
3/4 Inch
Connection 2, diameter
20 mm
Connection 2, type
Hose end
Connection 2, type - male/female
Male
HConnection no 1 center to end distance
59.1 mm
Connection no 1 diameter
3/4 Inch
Connection no 1 diameter
19 mm
Connection no 1 length
61 mm
F1Connection no 1 thread diameter
3/4 Inch
Connection no 1 threads per inch
14
Connection no 1 type - male/female
Female
Connection no 1 type
O-ring cone
Original number equivalent
H1320892-121200
Shape
Elbow - 2 connection sides
  • Brand
    Alfagomma
  • Reference
    DKRNS201290
  • Condition
    New
