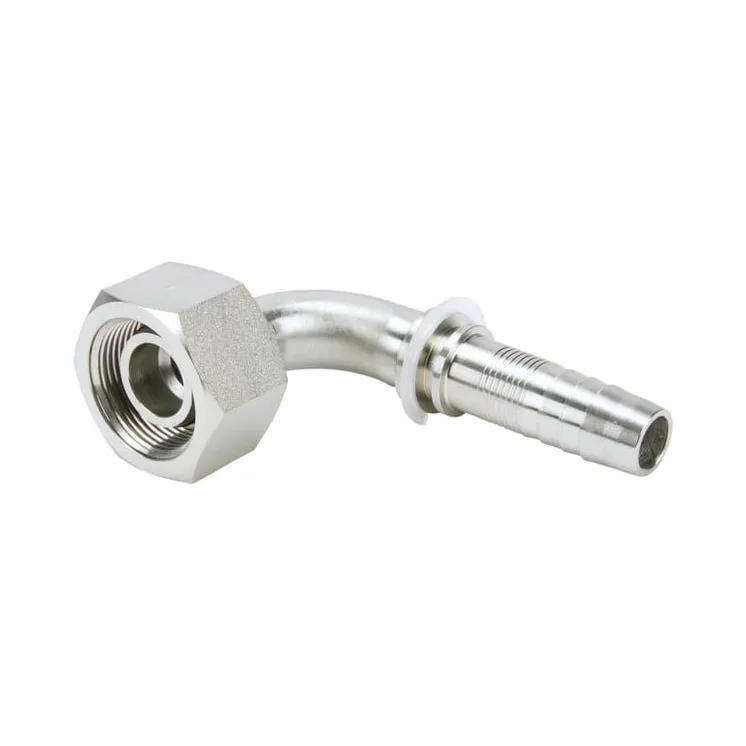

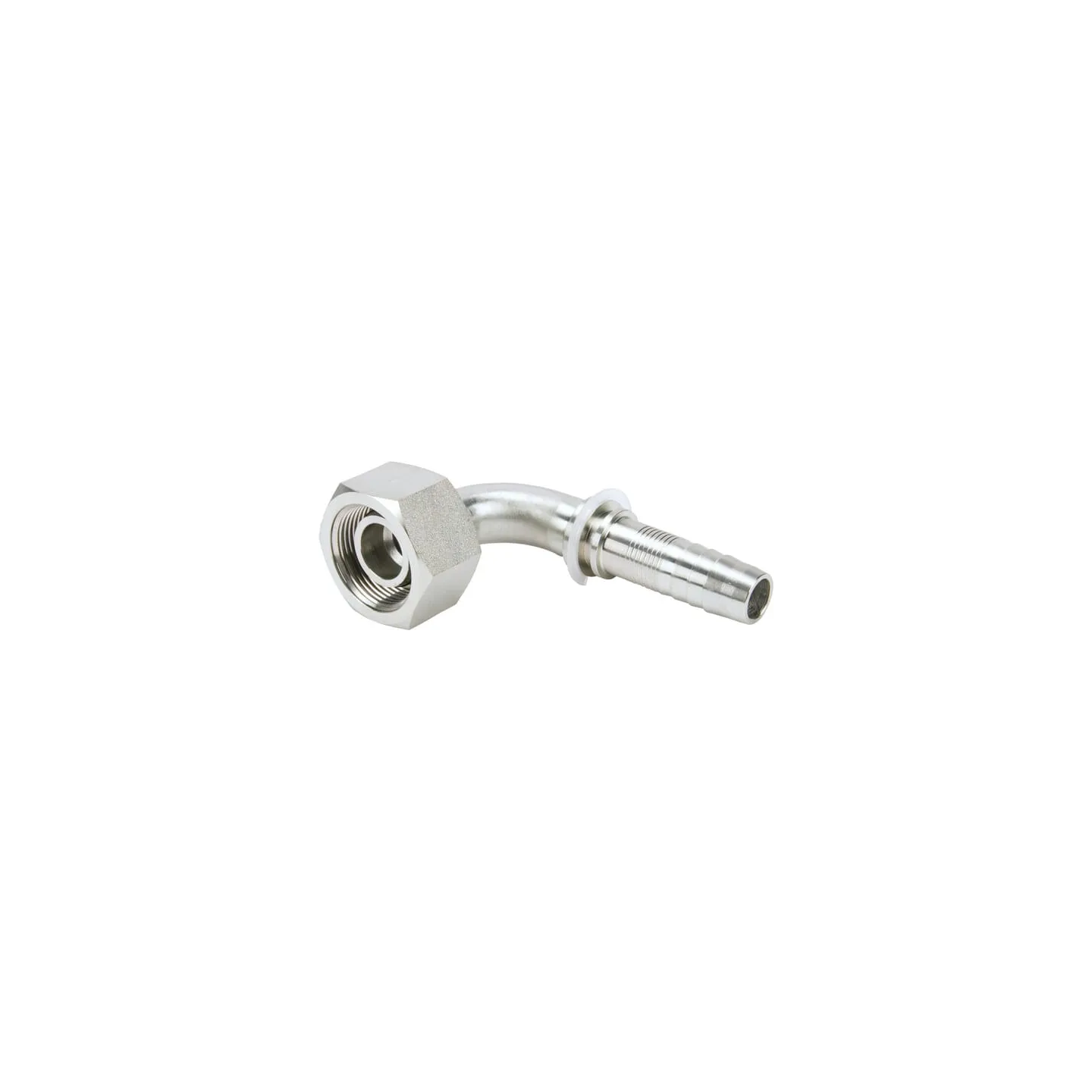

Insert F NS-DN20-25S-M36x2 90 DKOSNS203690 Alfagomma
search
  • Insert F NS-DN20-25S-M36x2 90 DKOSNS203690 Alfagomma

Insert F NS-DN20-25S-M36x2 90 DKOSNS203690

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€29.19
Tax included
4-5 Working days
Insert F NS-DN20-25S-M36x2 90 DKOSNS203690 Alfagomma
IN WAREHOUSE

87874

Part number
DKOSNS203690
EAN
Unit
Each
Long description
Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros
  • Press fittings help ensure faster and easier hose assembly and help to save costs.
  • Processing produces less dirt, smell and waste.
  • No special tool needed to skive the hose.
Product details
  • The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses.
  • With these press fittings, there is no need to skive the inner and outer casing.
Angle
90 °
Connection 2, diameter
3/4 Inch
Connection 2, diameter
20 mm
Connection 2, type
Hose end
Connection 2, type - male/female
Male
F1Connection no 1 thread pitch
2.00 mm
F1Connection no 1 thread diameter
M36
F1Connection no 1 thread type
Metric
Connection no 1 type - male/female
Female
Connection no 1 type
O-ring cone
Original number equivalent
H1321693-123600
Series
25S
Shape
Elbow - 2 connection sides
  • Brand
    Alfagomma
  • Reference
    DKOSNS203690
  • In stock
    2 Items
  • Condition
    New
