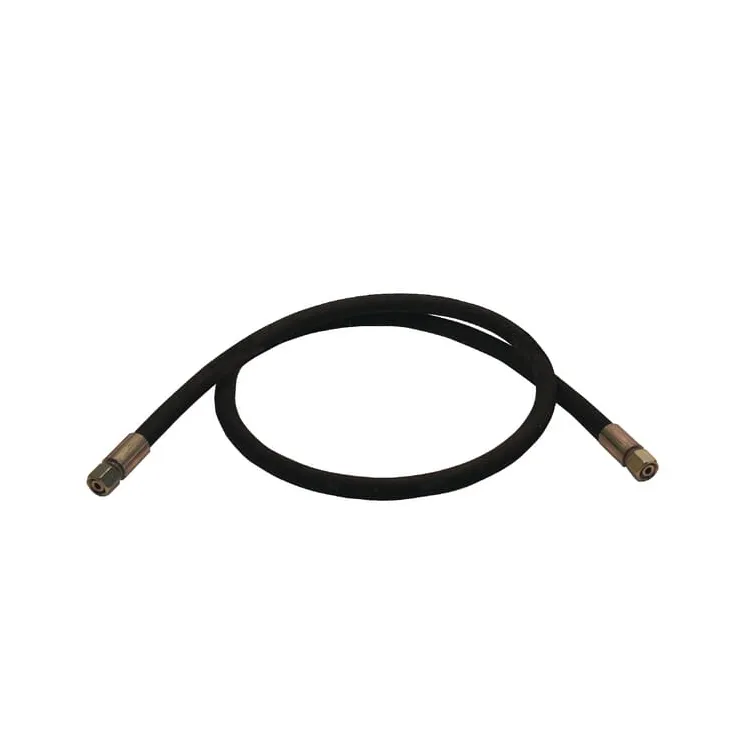

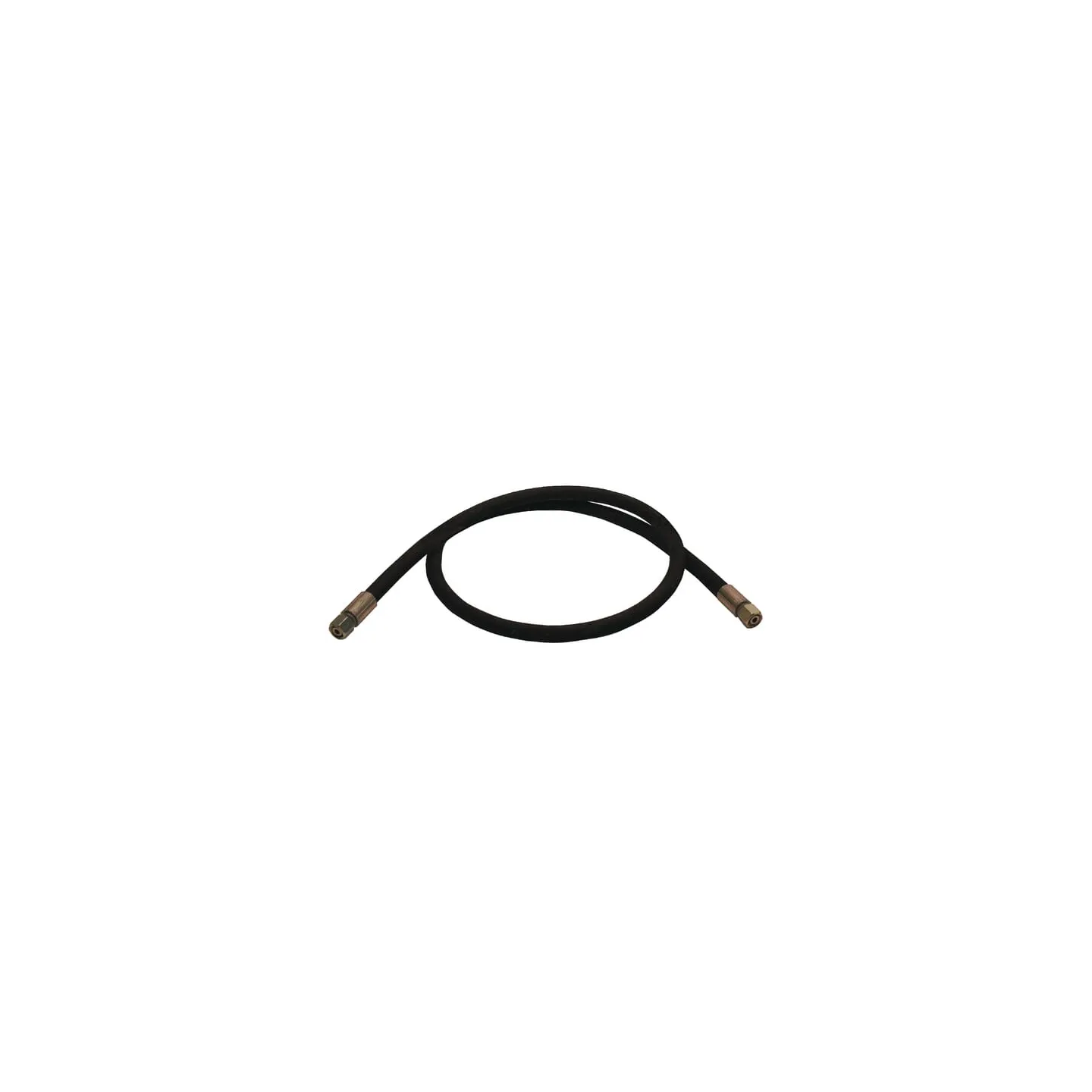

Hydraulic hose DN06 400mm DKLO6400

Name: Hydraulic hose DN06 400mm DKLO6400
Brand: Alfagomma
SKU: DKLO6400
Price: 12.56 EUR
Availability: InStock

Payment options

€12.56

Tax included

4-5 Working days

Hydraulic hose DN06 400mm DKLO6400 Alfagomma

IN WAREHOUSE

ID: 88179

Description

Part number	DKLO6400
EAN
Unit	Each
Long description	DKLO hoses are ready-to-use hoses, available in the most common lengths and already fitted with inserts and crimp sleeves. Easy to order and immediately deployable for optimum time savings. Other combinations/customisations are available via the "Kramp product configurator", see "Services" at the bottom of each web page. Show more
Pros	Very competitively priced Available from stock Fast assembly
Product details	Screw cap M14x1.5 (8L) on both sides Length is the total length including couplings Mineral oil-based and glycol-based fluids Durable outer coating resistant to ozone and oil General use in hydraulic systems Not suitable for ester based oils
Includes	Complete hose with screw cap M14x1.5 (8L) on both sides
Medium	Oil
Hose inside diameter	6 mm
Type	Hydraulic high pressure hose
Type code	HST-06-2SN
Length	0.4 m
DN	6 mm
Material inside	Nitrile rubber [NBR]
Material outside	Styrene-butadiene rubber (SBR)
Max working pressure	400 BAR
Burst pressure	1600 BAR
Colour outside	Black
Colour inside	Black
Connection 1 thread type	Metric
Connection 1 thread diameter	M14
Connection 1 pitch of thread	1.50 mm
Max working temperature	100 °C
Min working temperature	-40 °C
Reinforcement type	Braid
Reinforcement material	Steel
Number of plies	2
Connection series	8L
EN Standard	853-2SN
Original number equivalent	DKLO6400
