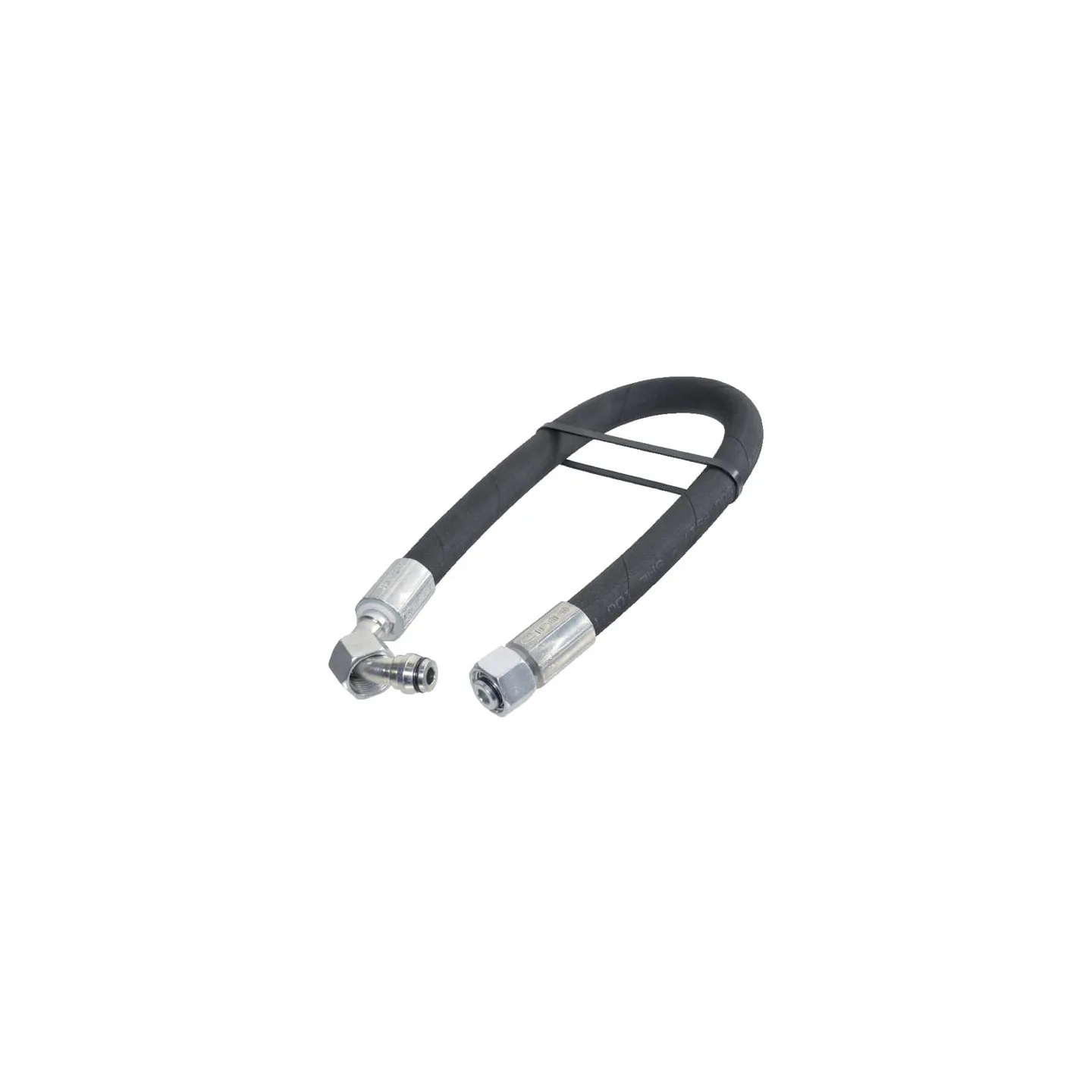

Hydr.Hose compl.DN10.500-90° DKLO1050090

Name: Hydr.Hose compl.DN10.500-90° DKLO1050090
Brand: Alfagomma
SKU: DKLO1050090
Price: 14.65 EUR
Availability: InStock

Payment options

€14.65

Tax included

4-5 Working days

Hydr.Hose compl.DN10.500-90° DKLO1050090 Alfagomma

IN WAREHOUSE

ID: 88222

Description

Part number	DKLO1050090
EAN
Unit	Each
Pros	Very competitively priced Available from stock Fast assembly
Product details	Screw cap M18x1.5 (12L) on one side Screw cap M18x1.5 (12L - 90°) on one side Length is the total length including couplings Mineral oil-based and glycol-based fluids Durable outer coating resistant to ozone and oil General use in hydraulic systems Not suitable for ester based oils
Includes	Complete hose with 1x straight 1x 90° coupling (screw cap M18x1.5 (12L))
Long description	Application range: General use in hydraulic systems Mineral oil-based and glycol-based fluids Vegetable and mineral lubricants Coolant Compressed air Benefits: Very reasonably priced <C
Type code	HST-10-2SN
Length	0.5 m
Material inside	Nitrile rubber [NBR]
Material outside	Styrene-butadiene rubber (SBR)
Max working pressure	330 BAR
Connection 1 type	Swivel nut
Connection 1 thread type	Metric
Connection 1 thread diameter	M18
Connection 1 pitch of thread	1.50 mm
Max working temperature	100 °C
Min working temperature	-40 °C
Connection series	12L
EN Standard	853-2SN
Approval	ABS BV DNN KOMAG GL NKK RINA
