| Part number | DKLO8150090 | |
|---|---|---|
| EAN | ||
| Unit | Each | |

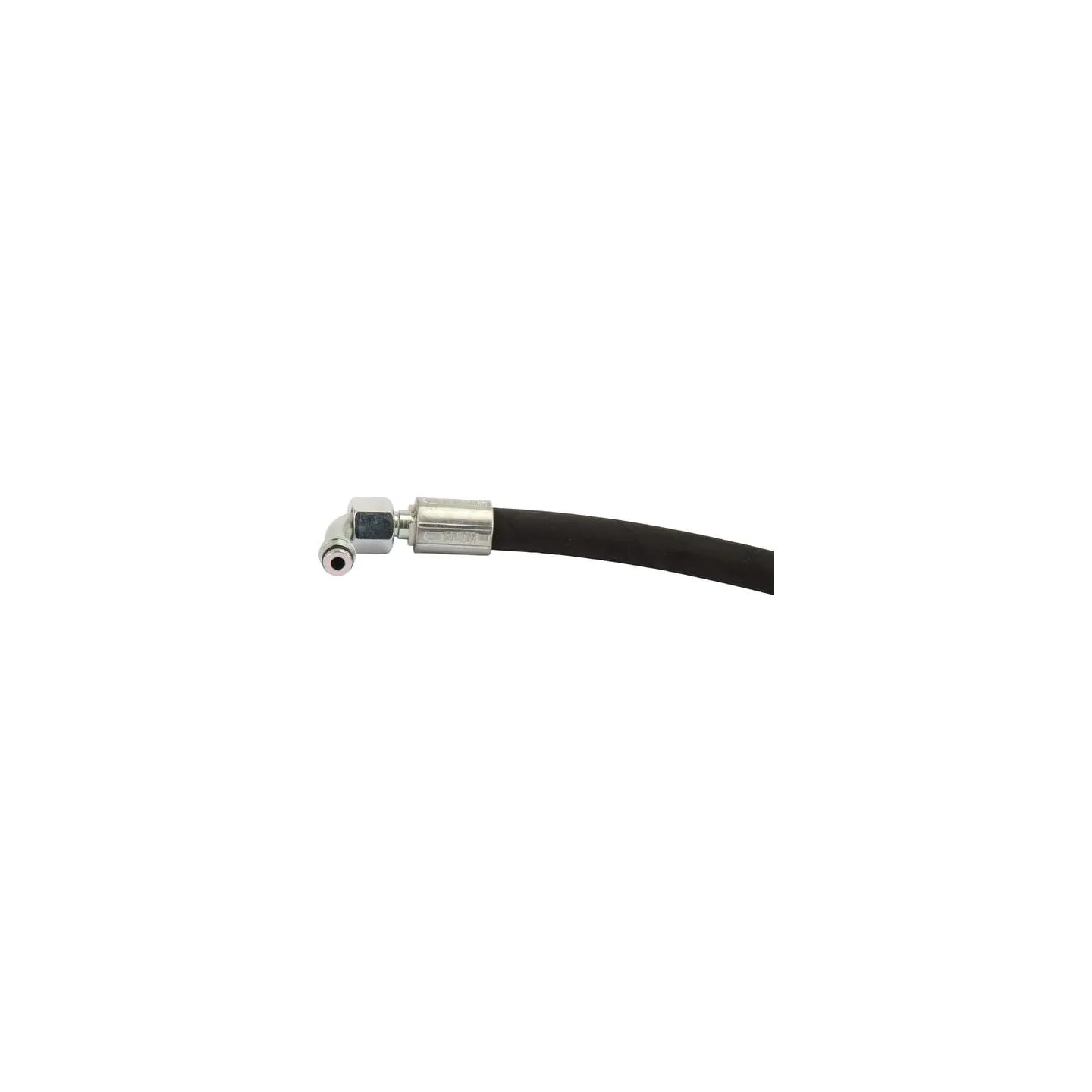

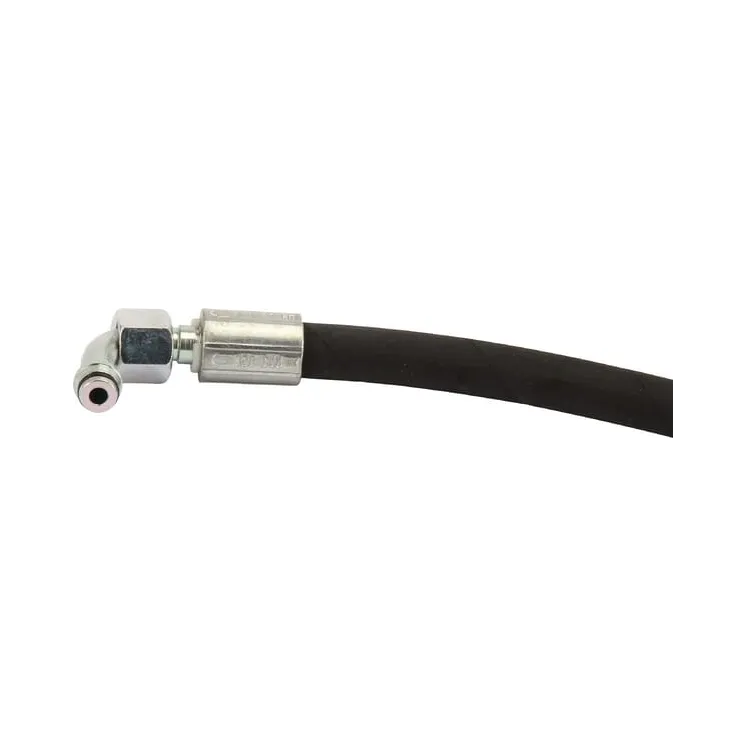

| Long description | DKLO hoses are ready-to-use hoses, available in the most common lengths and already fitted with inserts and crimp sleeves. Easy to order and immediately deployable for optimum time savings. Other combinations/customisations are available via the "Kramp product configurator", see "Services" at the bottom of each web page. Show more | |
| Pros |
| |
| Product details |
| |
| Includes | Complete hose with screw cap M16x1.5 (10L) on both sides | |
| Medium | Oil | |
| Hose inside diameter | 8 mm | |
| Type | Hydraulic high pressure hose | |
| Type code | HST-08-2SN | |
| Length | 1.5 m | |
| DN | 8 mm | |
| Material inside | Nitrile rubber [NBR] | |
| Material outside | Styrene-butadiene rubber (SBR) | |
| Max working pressure | 350 BAR | |
| Burst pressure | 330 BAR | |
| Colour outside | Black | |
| Colour inside | Black | |
| Connection 1 thread type | Metric | |
| Connection 1 thread diameter | M16 | |
| Connection 1 pitch of thread | 1.50 mm | |
| Max working temperature | 100 °C | |
| Min working temperature | -40 °C | |
| Reinforcement type | Braid | |
| Reinforcement material | Steel | |
| Number of plies | 2 | |
| Connection series | 10L | |
| EN Standard | 853-2SN | |
| Original number equivalent | DKLO8150090 |
