Stud swivel 1/2 UNF FMU08 Alfagomma
search
  • Stud swivel 1/2 UNF FMU08 Alfagomma

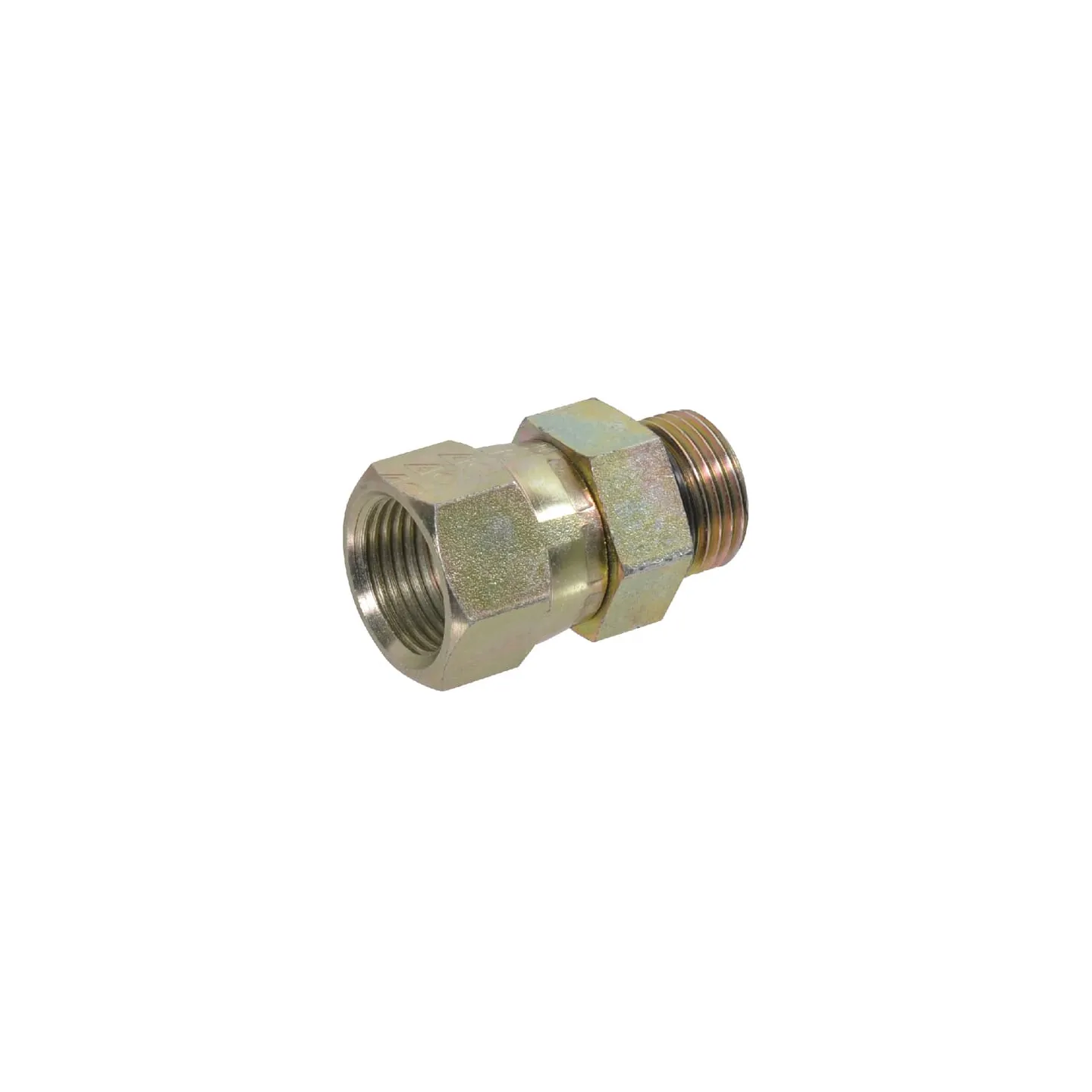

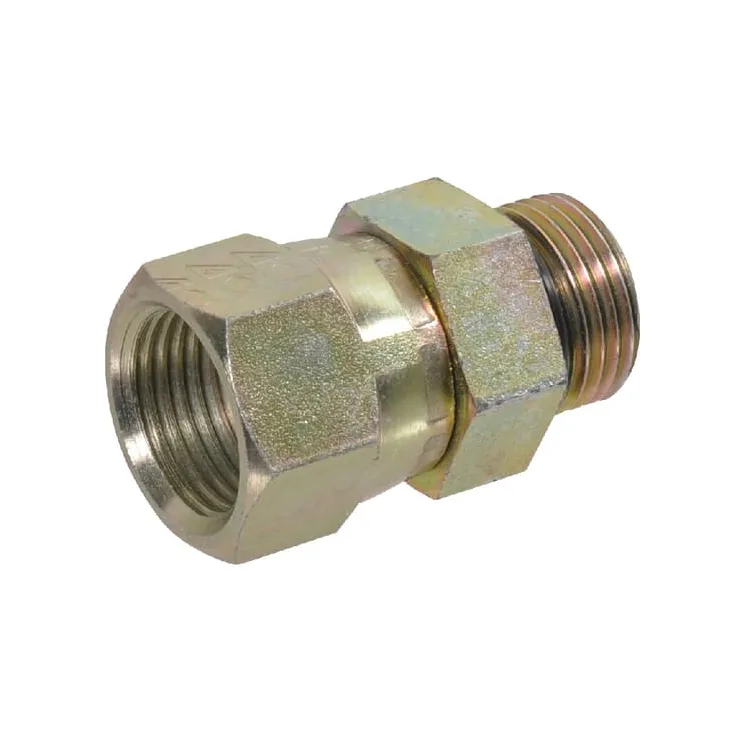

Stud swivel 1/2 UNF FMU08

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€6.90
Tax included
4-5 Working days
Stud swivel 1/2 UNF FMU08 Alfagomma
IN WAREHOUSE

88363

Part number
FMU08
EAN
Unit
Each
Product details
  • For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514
  • Connection thread on the 37° cone side is UNF in accordance with ANSI
Cone angle
74 °
F2Connection 2, thread diameter
1/2 Inch
Connection 2, thread length
9 mm
F2Connection 2, thread type
UNF
Connection 2, threads per inch
20
Connection 2, type
Thread
Connection 2, type - male/female
Male
F1Connection no 1 thread diameter
1/2 Inch
F1Connection no 1 thread type
JIC
Connection no 1 threads per inch
20
Connection no 1 type - male/female
Female
Connection no 1 type
Swivel nut
Length
26 mm
Material
Steel
Max working pressure
380 BAR
Shape
Straight - 2 connection sides
Surface treatment
Galvanised
  • Brand
    Alfagomma
  • Reference
    FMU08
  • In stock
    5 Items
  • Condition
    New
