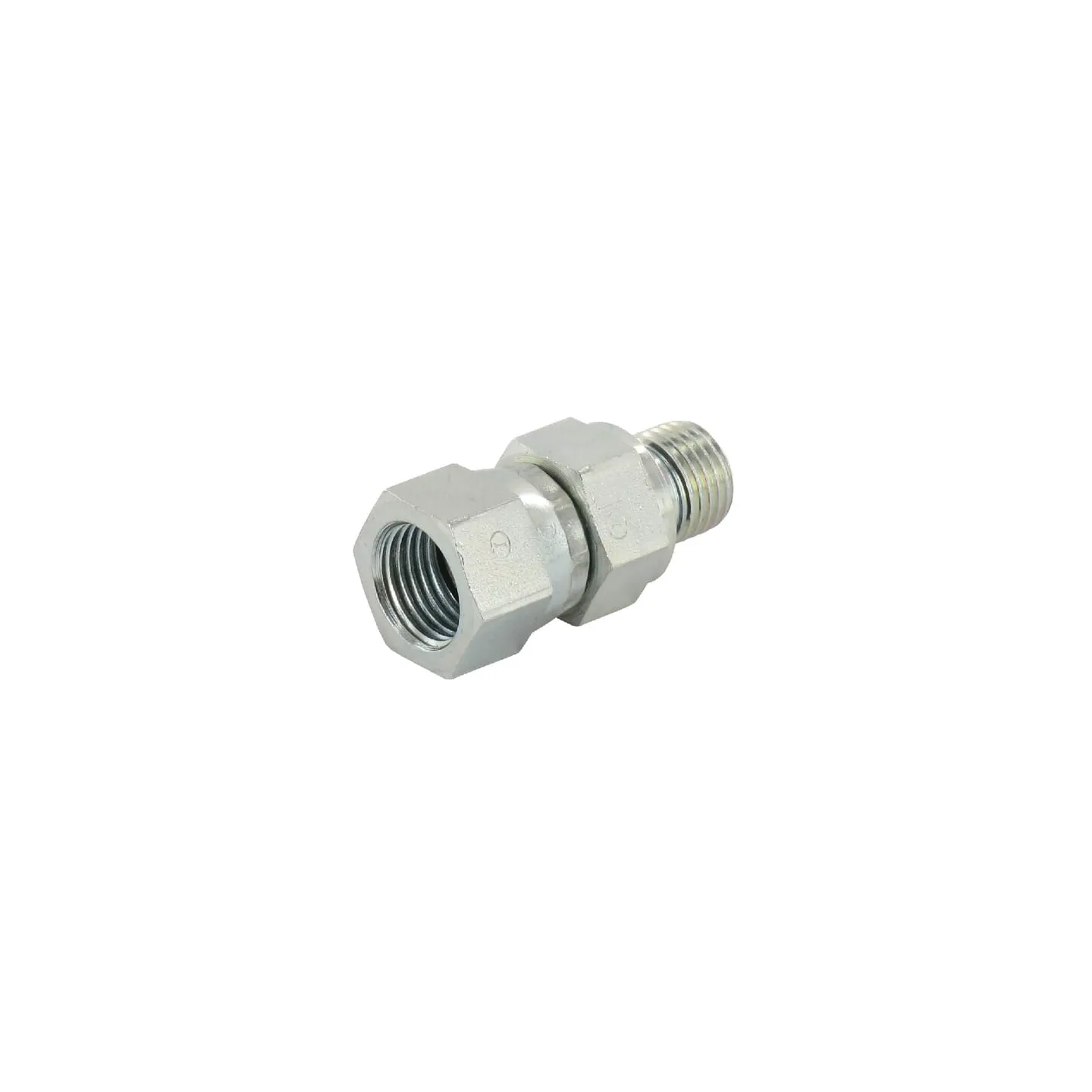

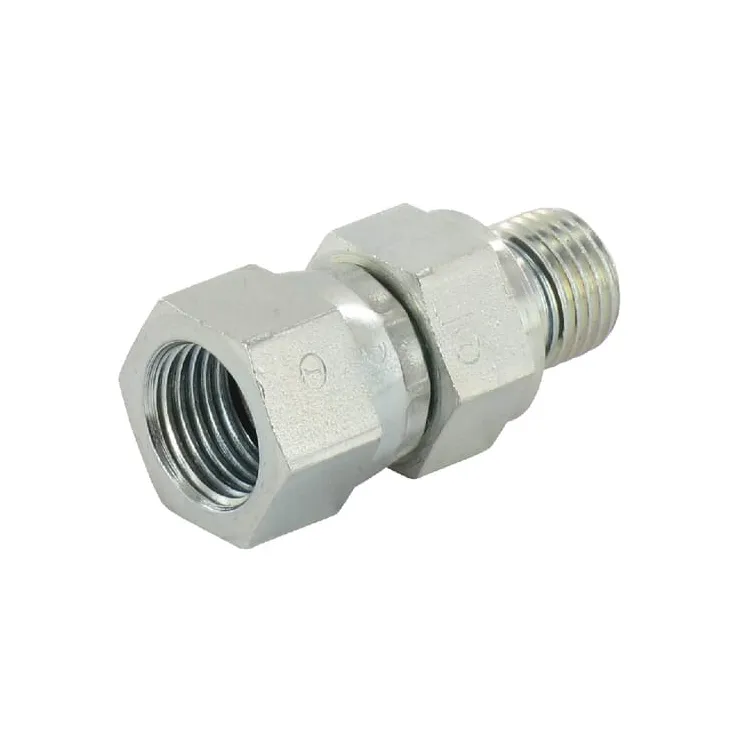

Swivel 1-1/16 JIC x 3/4 BSP FMUB1712

Name: Swivel 1-1/16 JIC x 3/4 BSP FMUB1712
Brand: Alfagomma
SKU: FMUB1712
Price: 12.06 EUR
Availability: InStock

Payment options

€12.06

Tax included

4-5 Working days

Swivel 1-1/16 JIC x 3/4 BSP FMUB1712 Alfagomma

IN WAREHOUSE

ID: 88364

Description

Part number	FMUB1712
EAN
Unit	Each
Product details	For pipe with 37º (74º) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514. Connection thread on the 37º cone side is UNF in accordance with ANSI
Long description	Technical information: For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514. Cone acc. To UNF ANSI.
Cone angle	74 °
F2Connection 2, thread diameter	3/4 Inch
Connection 2, thread length	14 mm
F2Connection 2, thread type	BSP
Connection 2, threads per inch	14
Connection 2, type	Thread
Connection 2, type - male/female	Male
F1Connection no 1 thread diameter	1-1/16 Inch
F1Connection no 1 thread type	JIC
Connection no 1 threads per inch	12
Connection no 1 type - male/female	Female
Connection no 1 type	Swivel nut
Length	55.5 mm
Material	Steel
Max working pressure	190 BAR
Shape	Straight - 2 connection sides
Surface treatment	Galvanised
