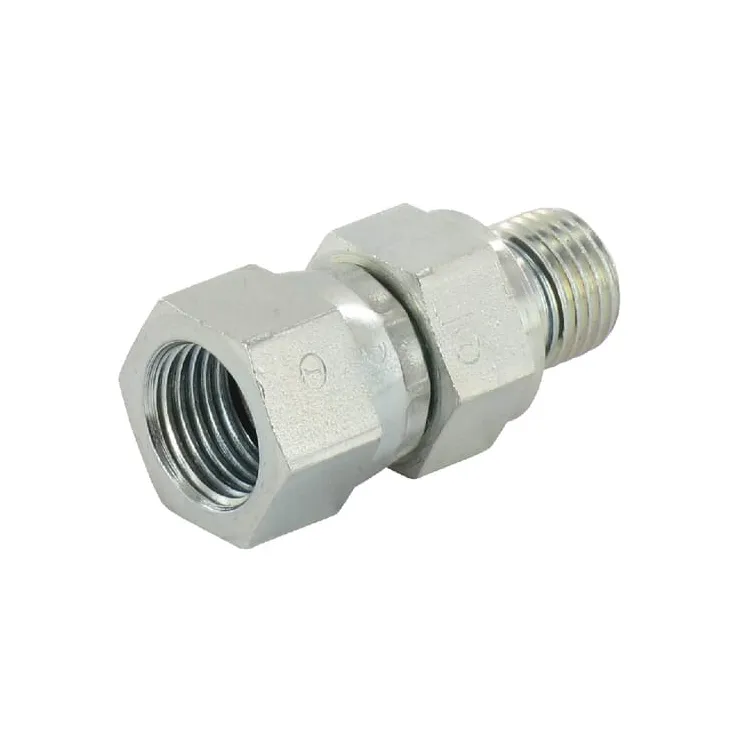

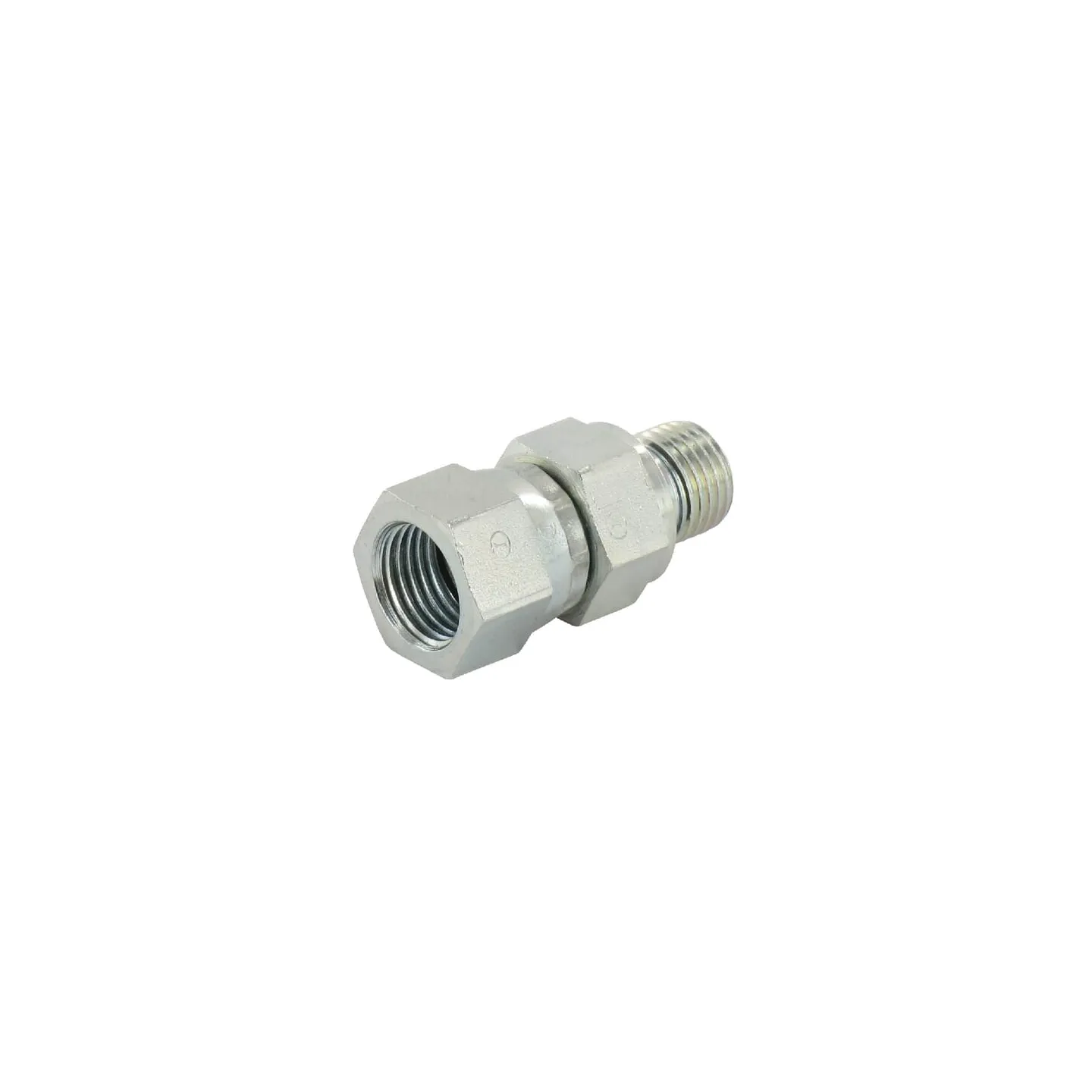

| Part number | FMUB0906 | |
|---|---|---|
| EAN | ||
| Unit | Each | |
| Product details | For pipe with 37º (74º) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514. Connection thread on the 37º cone side is UNF in accordance with ANSI | |
| Cone angle | 74 ° | |
| F2Connection 2, thread diameter | 3/8 Inch | |
| Connection 2, thread length | 10 mm | |
| F2Connection 2, thread type | BSP | |
| Connection 2, threads per inch | 19 | |
| Connection 2, type | Thread | |
| Connection 2, type - male/female | Male | |
| F1Connection no 1 thread diameter | 9/16 Inch | |
| F1Connection no 1 thread type | JIC | |
| Connection no 1 threads per inch | 18 | |
| Connection no 1 type - male/female | Female | |
| Connection no 1 type | Swivel nut | |
| Length | 42 mm | |
| Material | Steel | |
| Max working pressure | 340 BAR | |
| Shape | Straight - 2 connection sides | |
| Surface treatment | Galvanised |
