Swivel 7/8 JIC x 1/2 NPT FMUN1408 Alfagomma
search
  • Swivel 7/8 JIC x 1/2 NPT FMUN1408 Alfagomma

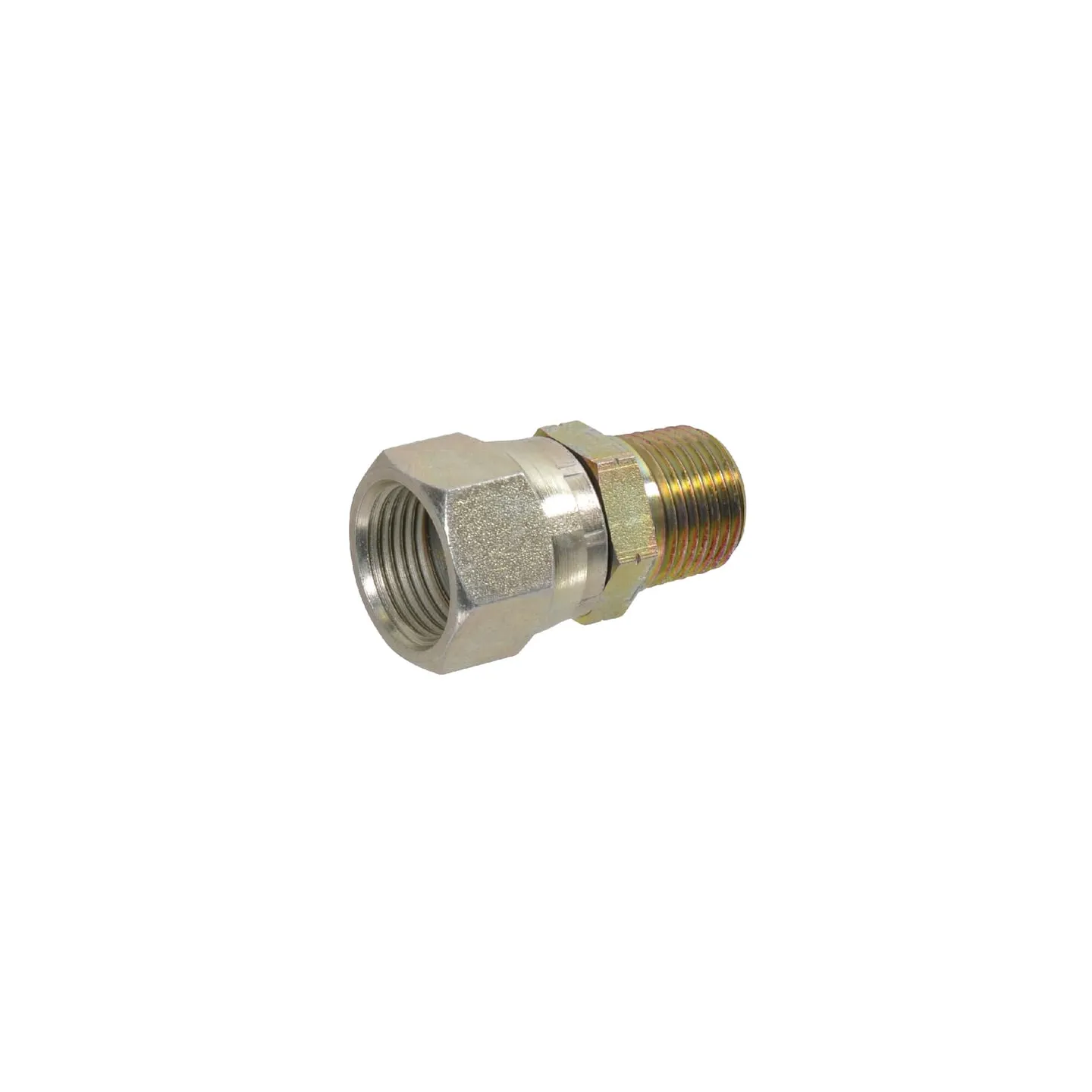

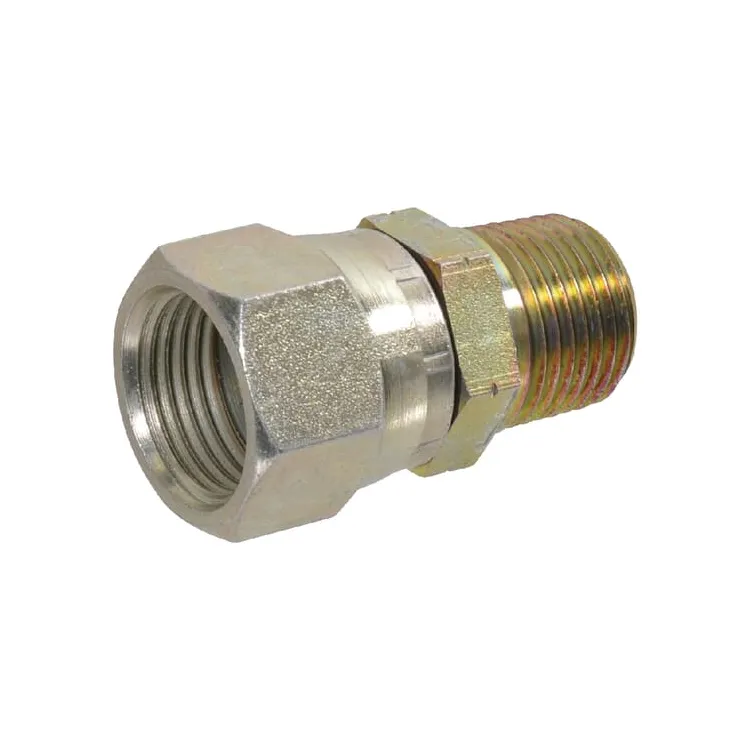

Swivel 7/8 JIC x 1/2 NPT FMUN1408

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€12.75
Tax included
4-5 Working days
Swivel 7/8 JIC x 1/2 NPT FMUN1408 Alfagomma
IN WAREHOUSE

88367

Part number
FMUN1408
EAN
Unit
Each
Product details
  • For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514
  • Cone according to UNF ANSI
Cone angle
74 °
F2Connection 2, thread diameter
1/2 Inch
Connection 2, thread length
18.5 mm
F2Connection 2, thread type
NPT
Connection 2, threads per inch
14
Connection 2, type
Thread
Connection 2, type - male/female
Male
F1Connection no 1 thread diameter
7/8 Inch
C2Connection no 1 thread length
26 mm
F1Connection no 1 thread type
JIC
Connection no 1 threads per inch
14
Connection no 1 type - male/female
Female
Connection no 1 type
Swivel nut
Material
Steel
Max working pressure
280 BAR
Shape
Straight - 2 connection sides
Surface treatment
Galvanised
Total length
49.5 mm
  • Brand
    Alfagomma
  • Reference
    FMUN1408
  • In stock
    4 Items
  • Condition
    New
