| Part number | FXP313 | |
|---|---|---|
| EAN | ||
| Unit | Metre | |
| Qty. Rounding | 0.01 | |
| Details | Innovative, compact design | |
| Application range |
| |
| Properties |
| |
| Technical info |
| |
| Benefits | Higher operating pressure than 4SP hoses | |
| Hose inside diameter | 1/2 Inch | |
| Hose inside diameter | 12.7 mm | |
| Max working pressure | 470 BAR | |
| Material inside | Nitrile rubber [NBR] | |
| Bend radius | 160 mm | |
| Weight | 0.88 kg/m | |

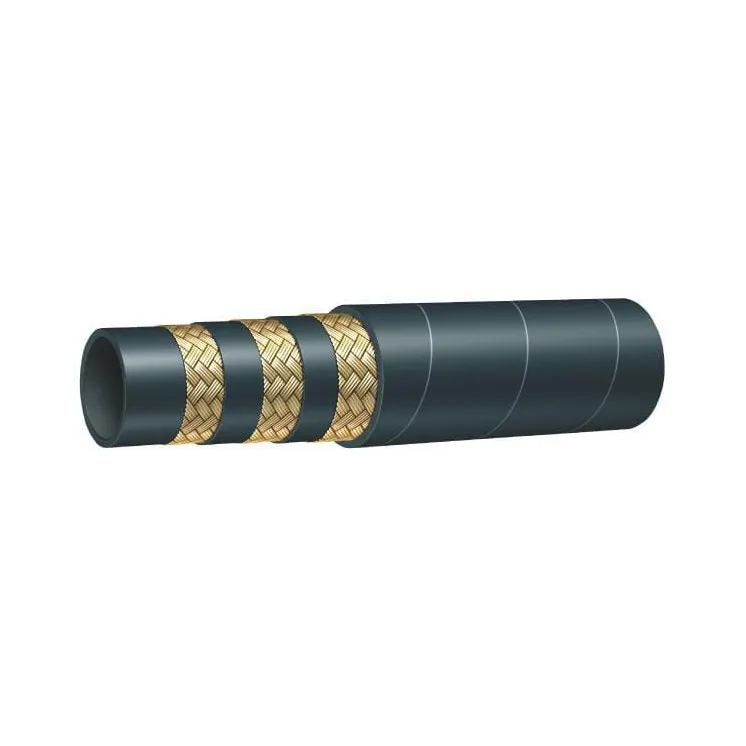

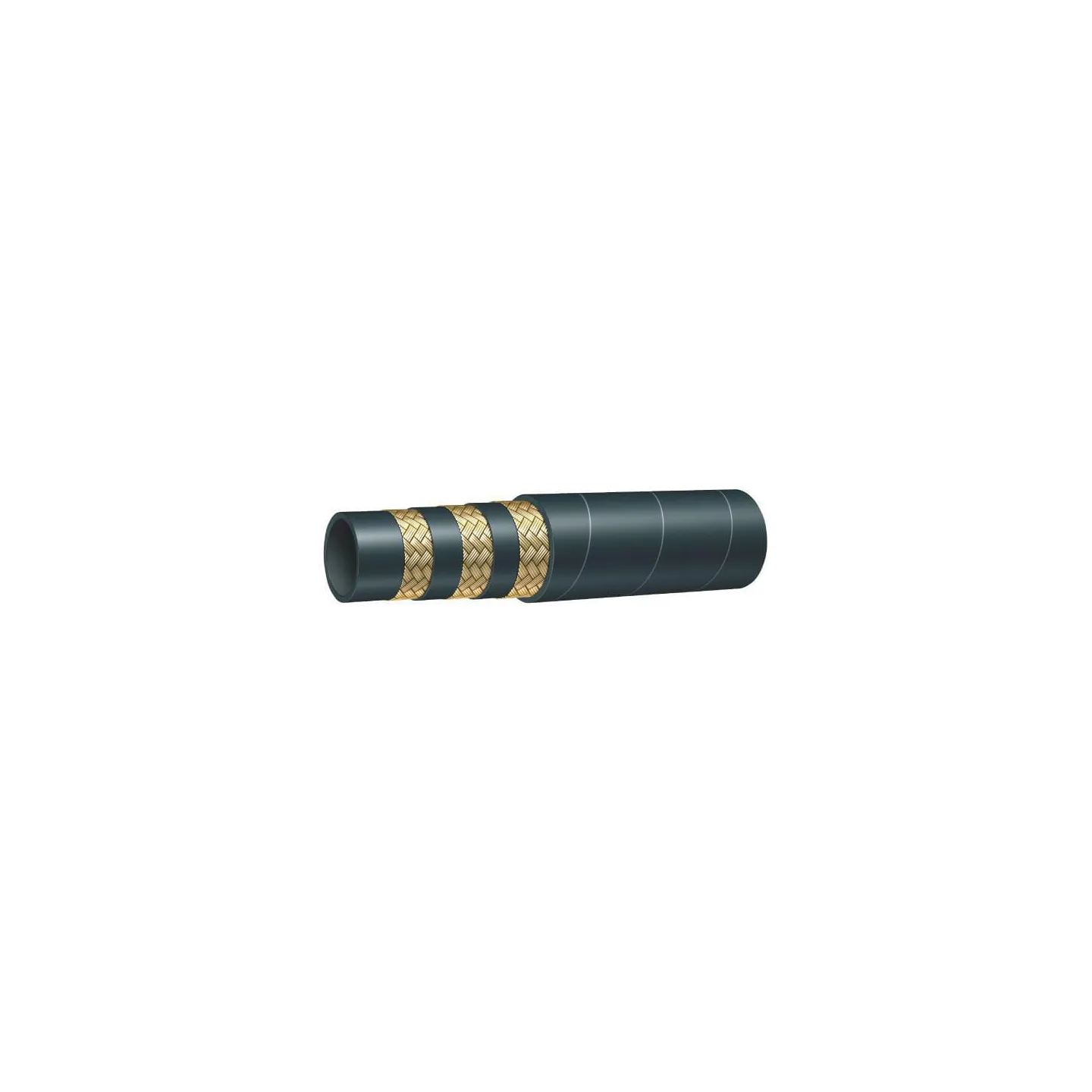

| Type | Hydraulic high pressure hose | |
| DN | 12 mm | |
| Hose outside diameter | 24.8 mm | |
| Burst pressure | 1880 BAR | |
| Medium | Hydraulic oil | |
| Max working temperature | 100 °C | |
| Min working temperature | -40 °C | |
| Material outside | Styrene-butadiene rubber (SBR) | |
| Reinforcement type | Braid | |
| Reinforcement number of plies | 3 | |
| Reinforcement material | Steel | |
| Number of plies | 3 |
