Supertuff hose EN857-2SC-DN13 HSKST13 Alfagomma
search
  • Supertuff hose EN857-2SC-DN13 HSKST13 Alfagomma

Supertuff hose EN857-2SC-DN13 HSKST13

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€15.15
Tax included
4-5 Working days
Supertuff hose EN857-2SC-DN13 HSKST13 Alfagomma
IN WAREHOUSE

88663

  • Brand
    Alfagomma
  • Reference
    HSKST13
  • In stock
    5 Items
  • Condition
    New
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
HSKST13
EAN
Unit
Metre
Qty. Rounding
0.01
Pros
  • Extremely high ozone, oil and UV resistance
  • This outer coating has very high resistance to a variety of chemicals
  • Salt water resistant and not absorbent
Product details

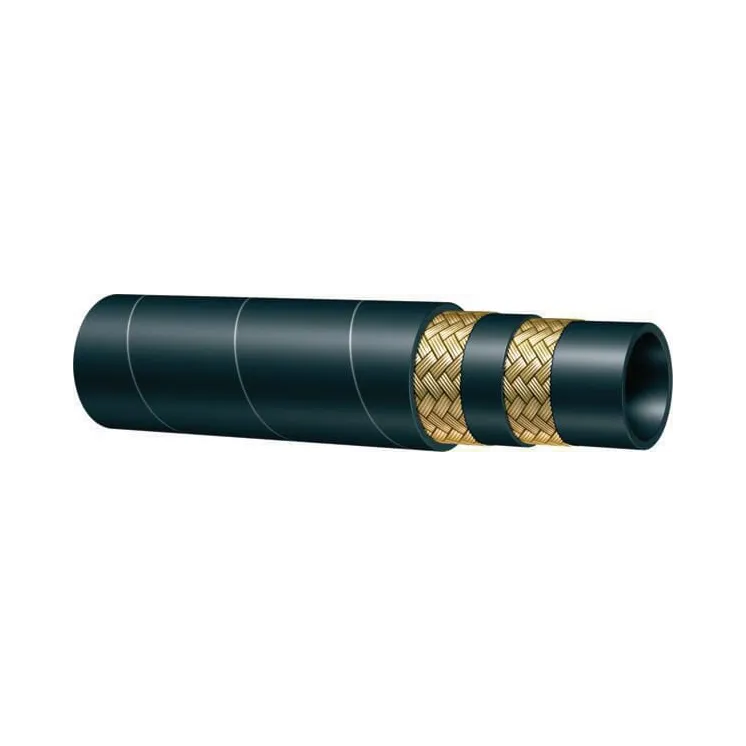

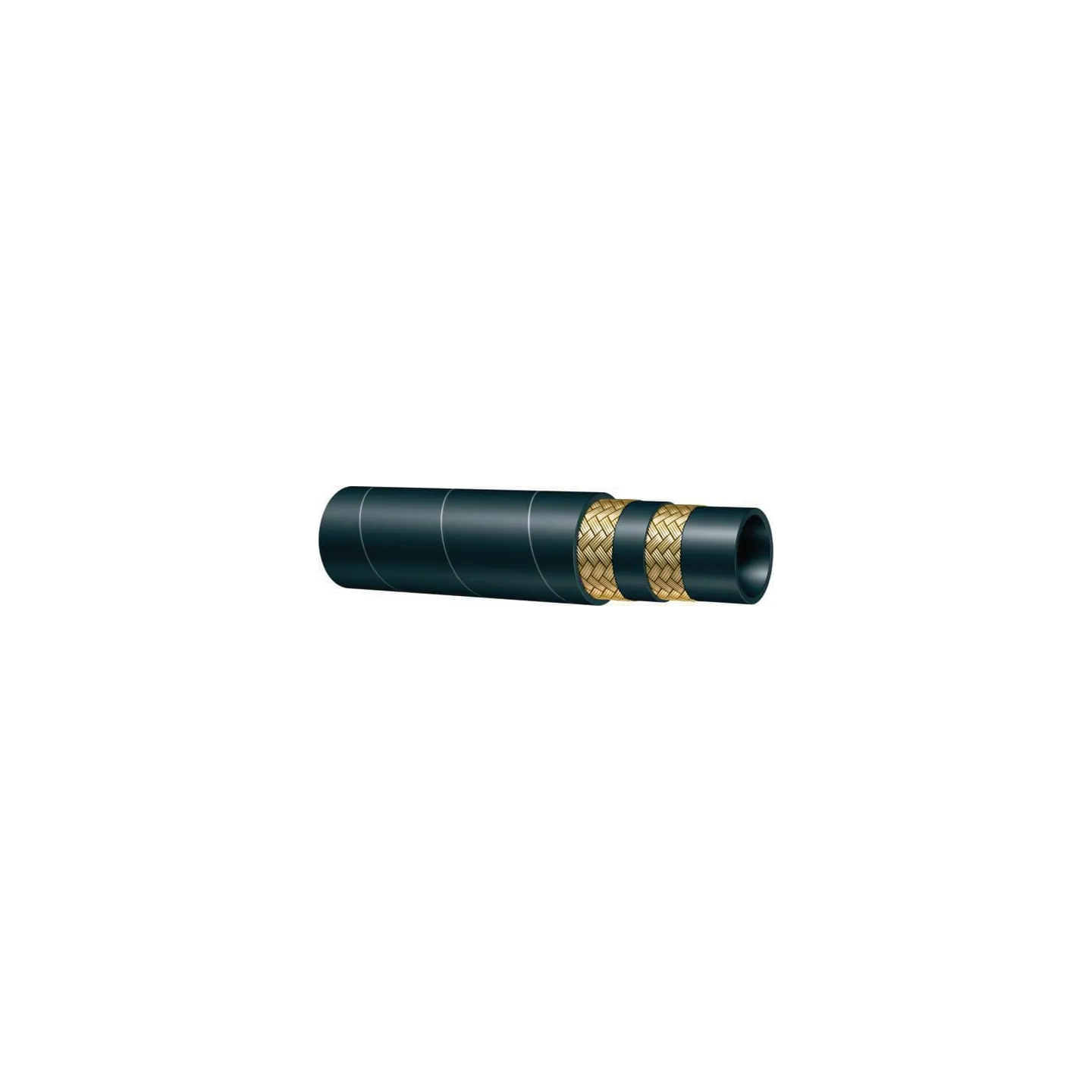

  • Hydraulic hose rubber compact with 2 braided steel wire layers of high tensile strength
  • HSK-ST Super-Tuff hoses have an outer coating with more than 500x higher abrasion resistance than standard compact hoses.
  • This Flexopac series has a higher operating pressure and smaller bending radius than standard EN857-2SC compact hoses.
  • NOT suitable for sewer cleaning or high-pressure cleaners.
  • Wear test according to EN- ISO 6945: (weight 50+/- 5N). standard cover 0.15g after 2,000 cycles, supertuff cover: 0.0g after 1,000,000 cycles
  • Ozone resistance according to EN 27326 (50, 40°C): standard cover: 96 hours, supertuff cover: 800 hours
  • Available by the metre
  • Available on 50-metre reel, up to 1/2"
  • Always consult the latest press dimensions tables, see downloads at the bottom of each web page
  • For longer single-piece lengths, please contact our sales department
Long description
  • Application range:
  • High pressure hose
  • Mining, earth-moving machinery, road transport, forestry and offshore
  • Underwater applications and other chemical conditions
  • NOT suitable for cleaning wastewater drains, for example!
  • <C
Hose inside diameter
1/2 Inch
Hose inside diameter
12.7 mm
Max working pressure
310 BAR
Material inside
Synthetic rubber
Bend radius
90 mm
Weight
0.54 kg/m
Type
Hydraulic high pressure hose
DN
12 mm
Hose outside diameter
20.6 mm
Hose outside diameter
0.81 Inch
Max working pressure
4500 lbf/in²
Burst pressure
1240 BAR
Burst pressure
124 MPa
Burst pressure
18000 lbf/in²
Medium
Hydraulic oil
Max working temperature
100 °C
Max. working temperature
212 °F
Min working temperature
-40 °C
Min. working temperature
-40 °F
Material outside
Synthetic rubber
Reinforcement type
Braid
Reinforcement number of plies
2
Reinforcement material
Steel
Number of plies
2
Weight
0.36 lb/ft
Bend radius
3.54 Inch
ISO standard
11237
EN standard
857 2SC
Approval
MSHA
Additional info
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
