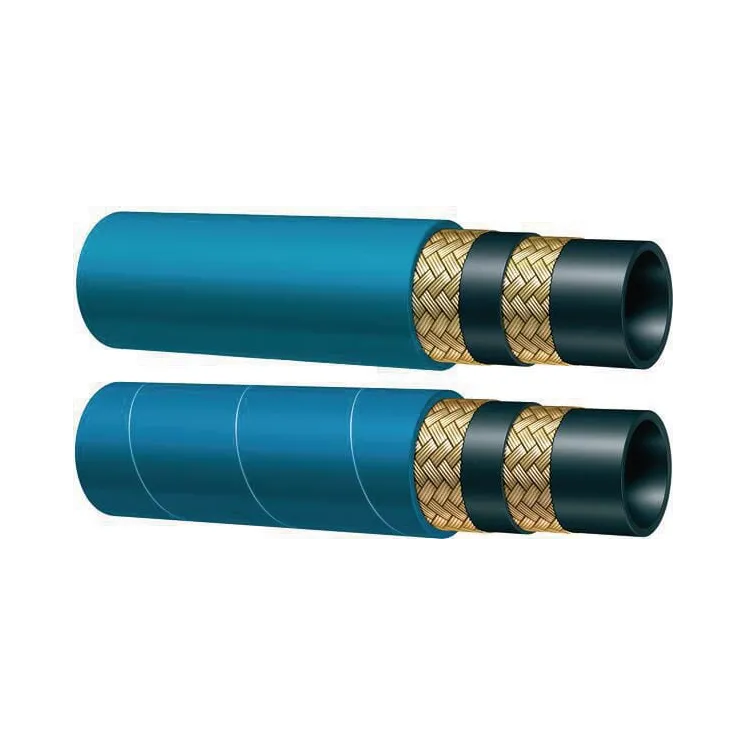

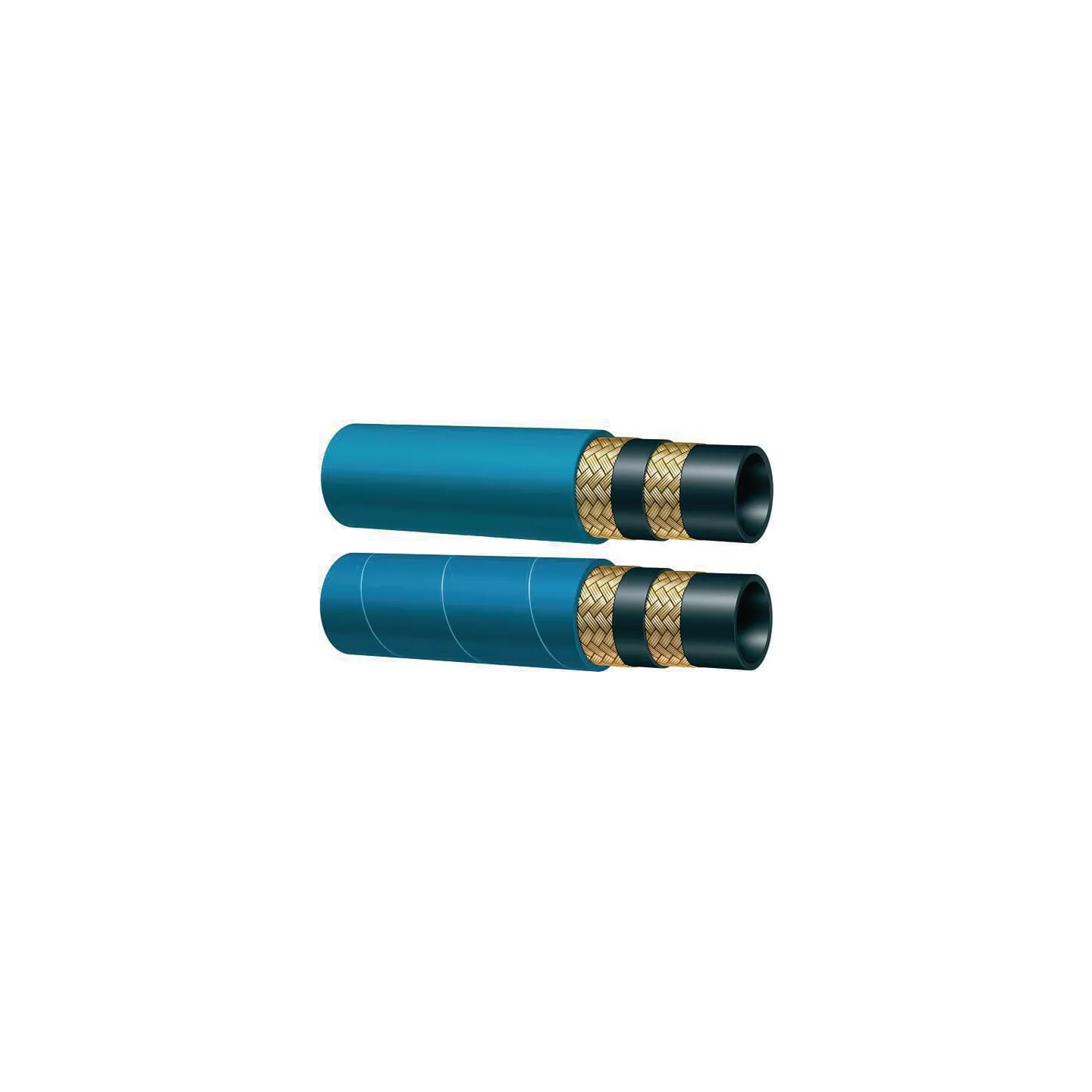

Hydraulic hose High Temp DN20 HT2SN20 TT2SN20

Name: Hydraulic hose High Temp DN20 HT2SN20 TT2SN20
Brand: Alfagomma
SKU: HT2SN20
Price: 30.35 EUR
Availability: InStock

Payment options

€30.35

Tax included

4-5 Working days

Hydraulic hose High Temp DN20 HT2SN20 Alfagomma TT2SN20

IN WAREHOUSE

ID: 88677

Description

Product Details

Data sheet

Security policy
100% Secure payments

Delivery policy
Insured worldwide delivery

Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.

Part number	HT2SN20
EAN
Unit	Metre
Qty. Rounding	0.01
Pros	High temperature range Wear-resistant outer coating
Product details	Hydraulic hose rubber with 2 braided steel inlays with high tensile strength High temperature resistant hose Peel hose before pressing Blue smooth outer coating up to 5/8" Blue wrapped textile print from 3/4" Hydraulic systems operating in the temperature range: -40°C +150°C Air systems: max. 85°C up to 5/8", from 3/4" up to 110°C Not recommended for steam Different available lengths SAE 100R2AT EN 853 2SN ISO 1436-1 Always consult the latest press dimensions tables, see downloads at the bottom of each web page
Hose inside diameter	3/4 Inch
Hose inside diameter	19 mm
Max working pressure	215 BAR
Material inside	Synthetic rubber
Bend radius	240 mm
Weight	0.881 kg/m
Type	Hydraulic high pressure hose
DN	20 mm
Hose outside diameter	29 mm
Hose outside diameter	1.14 Inch
Max working pressure	3120 lbf/in²
Burst pressure	860 BAR
Burst pressure	86 MPa
Burst pressure	12500 lbf/in²
Medium	Hydraulic oil
Max working temperature	150 °C
Max. working temperature	300 °F
Min working temperature	-40 °C
Min. working temperature	-40 °F
Material outside	Synthetic rubber
Reinforcement type	Braid
Reinforcement number of plies	2
Reinforcement material	Steel
Number of plies	2
Weight	0.6 lb/ft
Bend radius	9.45 Inch
Norm	SAE 100 R2AT
ISO standard	1436
EN standard	853 2SN
