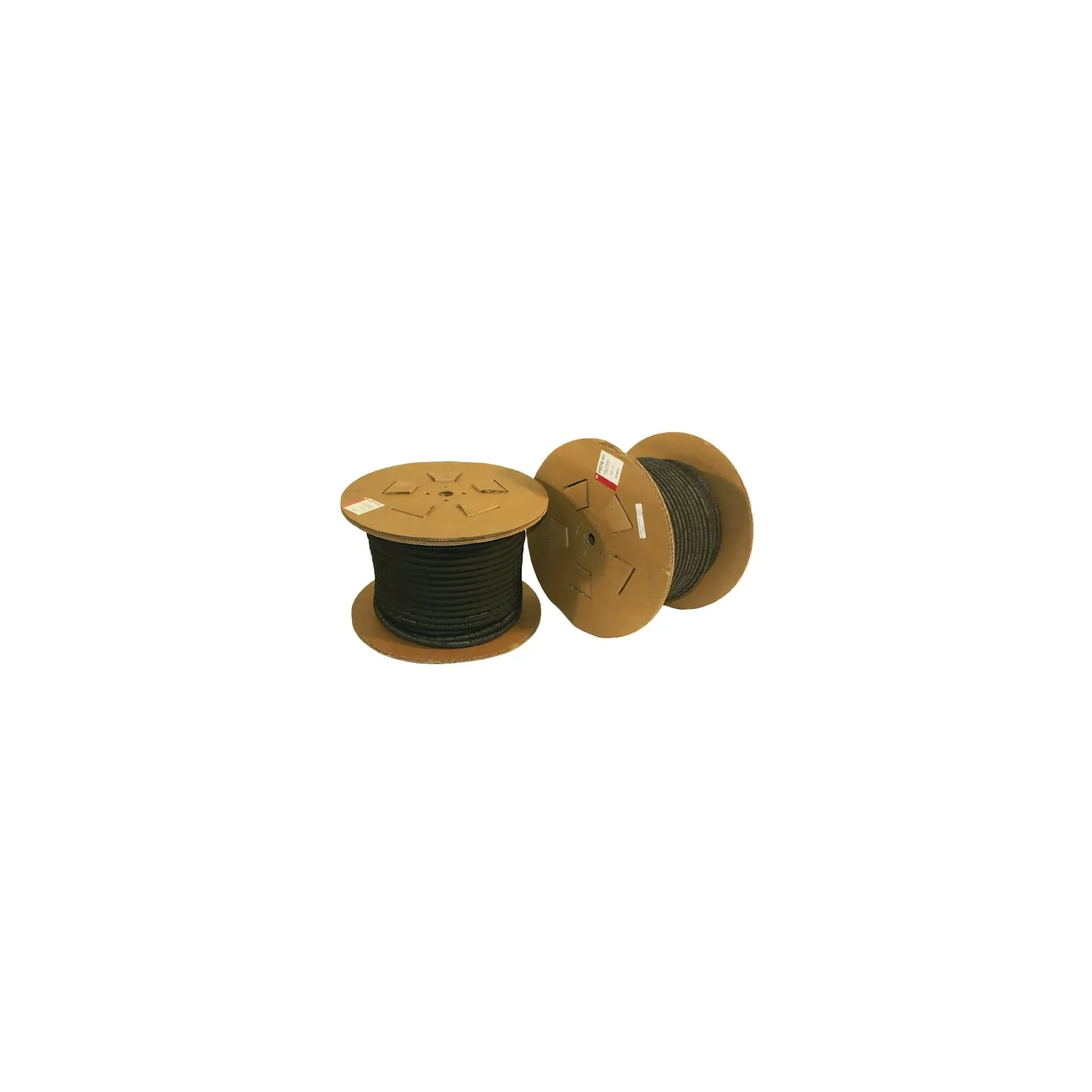

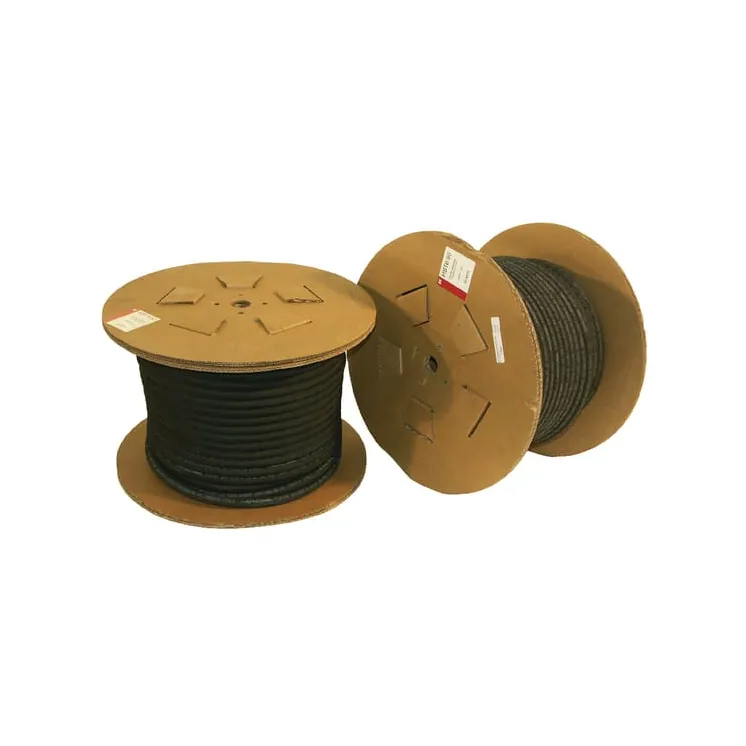

Hose HSKHF10 on reel HSKHF10P025M HSKHF10P025

Name: Hose HSKHF10 on reel HSKHF10P025M HSKHF10P025
Brand: Alfagomma
SKU: HSKHF10P025M
Price: 6.26 EUR
Availability: InStock

Payment options

€6.26

Tax included

4-5 Working days

Hose HSKHF10 on reel HSKHF10P025M Alfagomma HSKHF10P025

IN WAREHOUSE

ID: 88681

Description

Part number	HSKHF10P025M
EAN	8719607319492
Unit	Metre
Qty. Rounding	25
Pros	Durable outer coating resistant to ozone and oil Halogen free
Product details	Standard hose for all applications, very suitable for construction machinery and agriculture Mineral and glycol-based liquids, vegetable and mineral lubricants, crude oils, cooling water, compressed air, etc. Essentially in line with DIN 20022- 2SN / EN857-2SC dimensions
Includes	Hose reel These reels contain a maximum of two lengths per reel, with the shortest length being at least 10 metres.
Hose inside diameter	3/8 Inch
Hose inside diameter	9.5 mm
Max working pressure	330 BAR
Material inside	Synthetic rubber
Bend radius	90 mm
Length	25 m
Weight	0.36 kg/m
Type	Hydraulic high pressure hose
DN	10 mm
Hose outside diameter	17 mm
Burst pressure	1320 BAR
Medium	Hydraulic oil
Max working temperature	100 °C
Min working temperature	-40 °C
Material outside	Synthetic rubber
Reinforcement type	Braid
Reinforcement number of plies	2
Reinforcement material	Steel
Packing type	Reel
Colour outside	Black
Colour inside	Black
DIN standard	20022 2SN
EN standard	857 2SC
Additional info	*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
