Hydraulic hose High Temp DN06 HT2SN06 TT2SN06

Name: Hydraulic hose High Temp DN06 HT2SN06 TT2SN06
Brand: Alfagomma
SKU: HT2SN06
Price: 16.31 EUR
Availability: InStock

Payment options

€16.31

Tax included

4-5 Working days

Hydraulic hose High Temp DN06 HT2SN06 Alfagomma TT2SN06

IN WAREHOUSE

ID: 88686

Description

Product Details

Data sheet

Security policy
100% Secure payments

Delivery policy
Insured worldwide delivery

Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.

Part number	HT2SN06
EAN
Unit	Metre
Qty. Rounding	0.01
Pros	High temperature range Wear-resistant outer coating

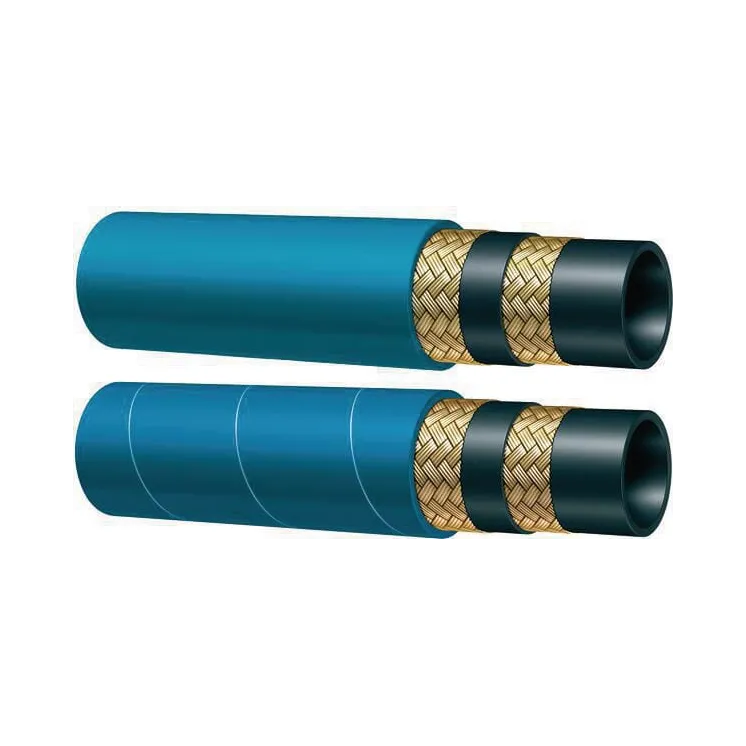

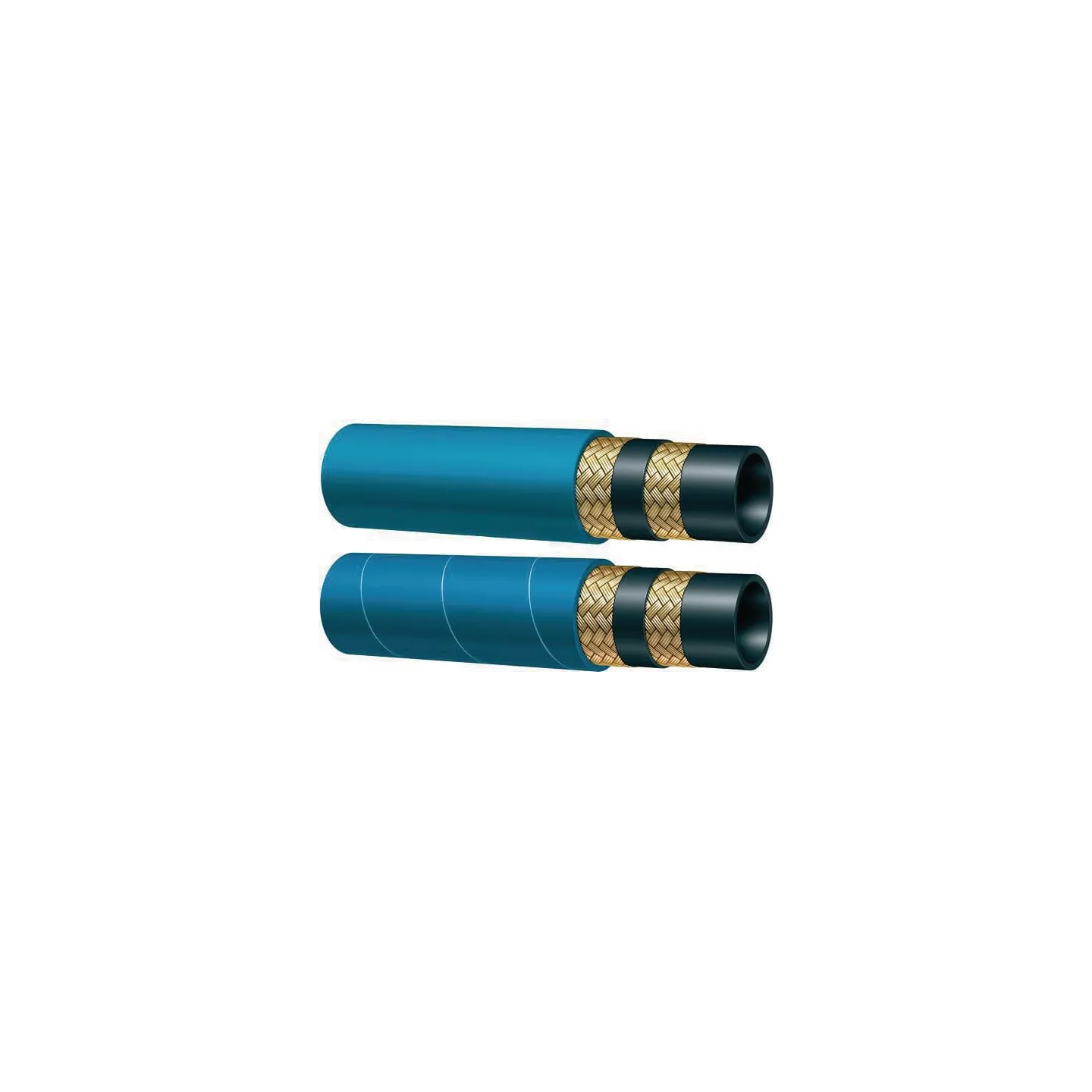

Product details	Hydraulic hose rubber with 2 braided steel inlays with high tensile strength High temperature resistant hose Peel hose before pressing Blue smooth outer coating up to 5/8" Blue wrapped textile print from 3/4" Hydraulic systems operating in the temperature range: -40°C +150°C Air systems: max. 85°C up to 5/8", from 3/4" up to 110°C Not recommended for steam Different available lengths SAE 100R2AT EN 853 2SN ISO 1436-1 Always consult the latest press dimensions tables, see downloads at the bottom of each web page
Hose inside diameter	1/4 Inch
Hose inside diameter	6 mm
Max working pressure	400 BAR
Material inside	Synthetic rubber
Bend radius	100 mm
Weight	0.339 kg/m
Type	Hydraulic high pressure hose
DN	6 mm
Hose outside diameter	14.2 mm
Hose outside diameter	0.56 Inch
Max working pressure	5850 lbf/in²
Burst pressure	1600 BAR
Burst pressure	160 MPa
Burst pressure	23200 lbf/in²
Medium	Hydraulic oil
Max working temperature	150 °C
Max. working temperature	300 °F
Min working temperature	-40 °C
Min. working temperature	-40 °F
Material outside	Synthetic rubber
Reinforcement type	Braid
Reinforcement number of plies	2
Reinforcement material	Steel
Number of plies	2
Weight	0.23 lb/ft
Bend radius	3.94 Inch
Norm	SAE 100 R2AT
ISO standard	1436
EN standard	853 2SN
