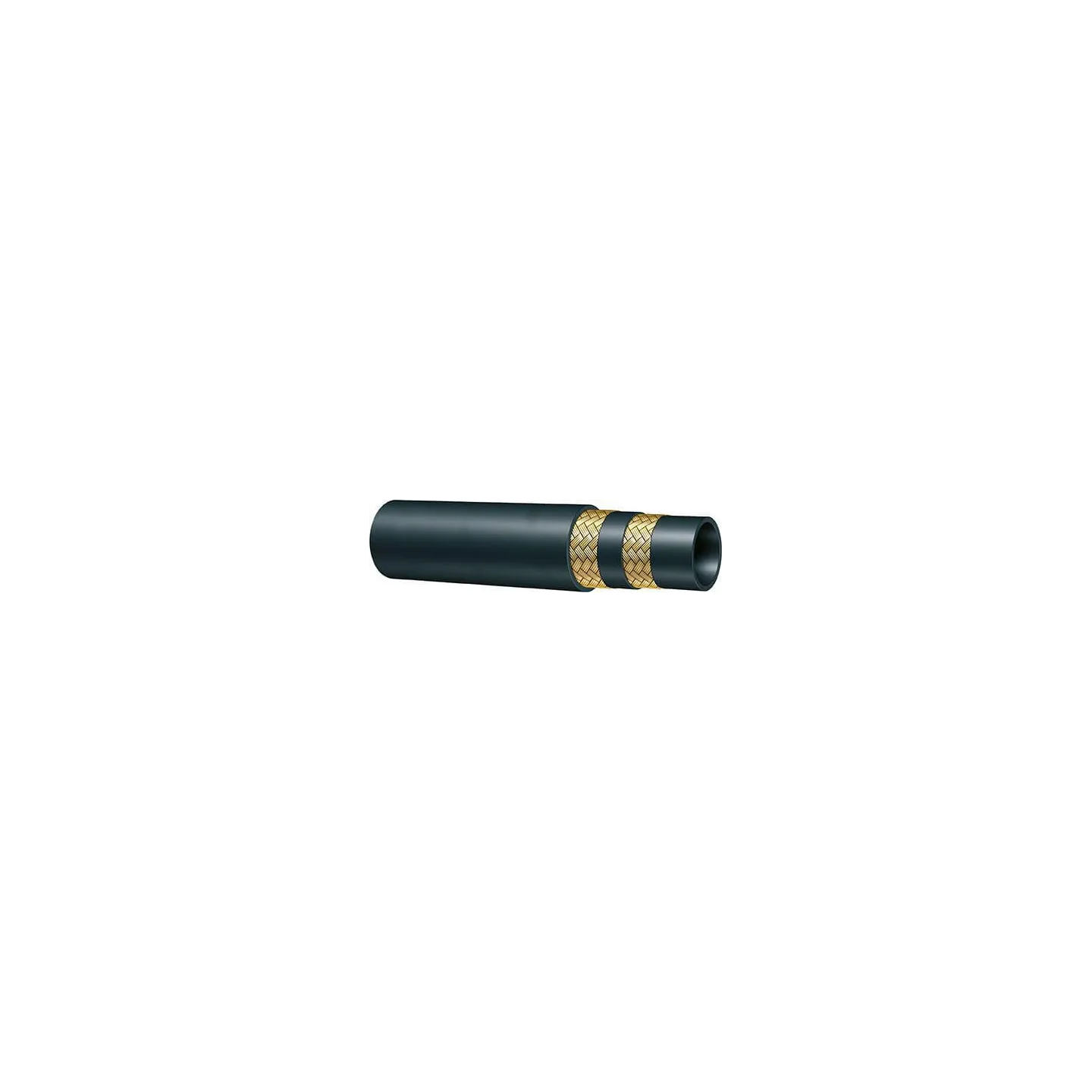

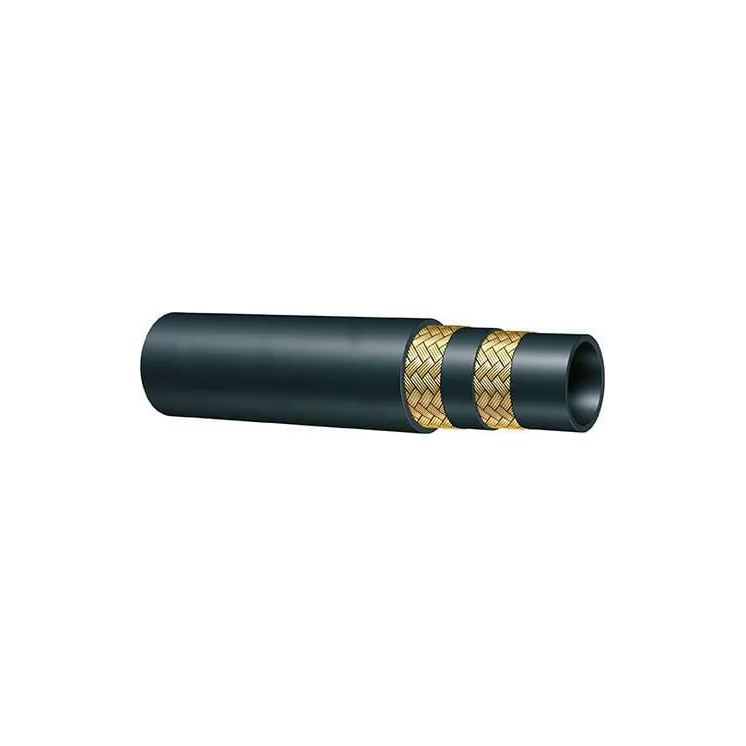

Hydraulic hose EN857-2SC-DN20 HSKHF20 Alfagomma
search
  • Hydraulic hose EN857-2SC-DN20 HSKHF20 Alfagomma

Hydraulic hose EN857-2SC-DN20 HSKHF20

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€10.37
Tax included
4-5 Working days
Hydraulic hose EN857-2SC-DN20 HSKHF20 Alfagomma
IN WAREHOUSE

88687

  • Brand
    Alfagomma
  • Reference
    HSKHF20
  • In stock
    5 Items
  • Condition
    New
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
HSKHF20
EAN
Unit
Metre
Qty. Rounding
0.01
Pros
  • Fewer harmful emissions released during cutting
  • Eco-friendly production
  • Halogen-free rubber surface
  • Lightweight and flexible
Product details
  • Essentially in line with DIN 20022- 2SN / EN857-2SC dimensions
  • A smaller bending radius
  • Lower weight
  • Durable outer coating resistant to ozone and oil
  • Mineral oil-based and glycol-based fluids
  • Vegetable and mineral lubricants
  • Crude oils, heating oil, coolant, compressed air
  • Also available on 25 and 50 metre reels, see category "hoses on Kramp reel"
  • For longer single-piece lengths, please contact our sales department
Hose inside diameter
3/4 Inch
Hose inside diameter
19 mm
Max working pressure
215 BAR
Material inside
Synthetic rubber
Bend radius
200 mm
Weight
0.76 kg/m
Type
Hydraulic high pressure hose
DN
20 mm
Hose outside diameter
27.7 mm
Hose outside diameter
1.09 Inch
Max working pressure
3120 lbf/in²
Burst pressure
860 BAR
Burst pressure
86 MPa
Burst pressure
12500 lbf/in²
Medium
Hydraulic oil
Max working temperature
100 °C
Max. working temperature
212 °F
Min working temperature
-40 °C
Min. working temperature
-40 °F
Material outside
Synthetic rubber
Reinforcement type
Braid
Reinforcement number of plies
2
Reinforcement material
Steel
Number of plies
2
Weight
0.54 lb/ft
Bend radius
7.87 Inch
Norm
SAE 100 R16S
ISO standard
11237
EN standard
857 2SC
Approval
MSHA
Additional info
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
