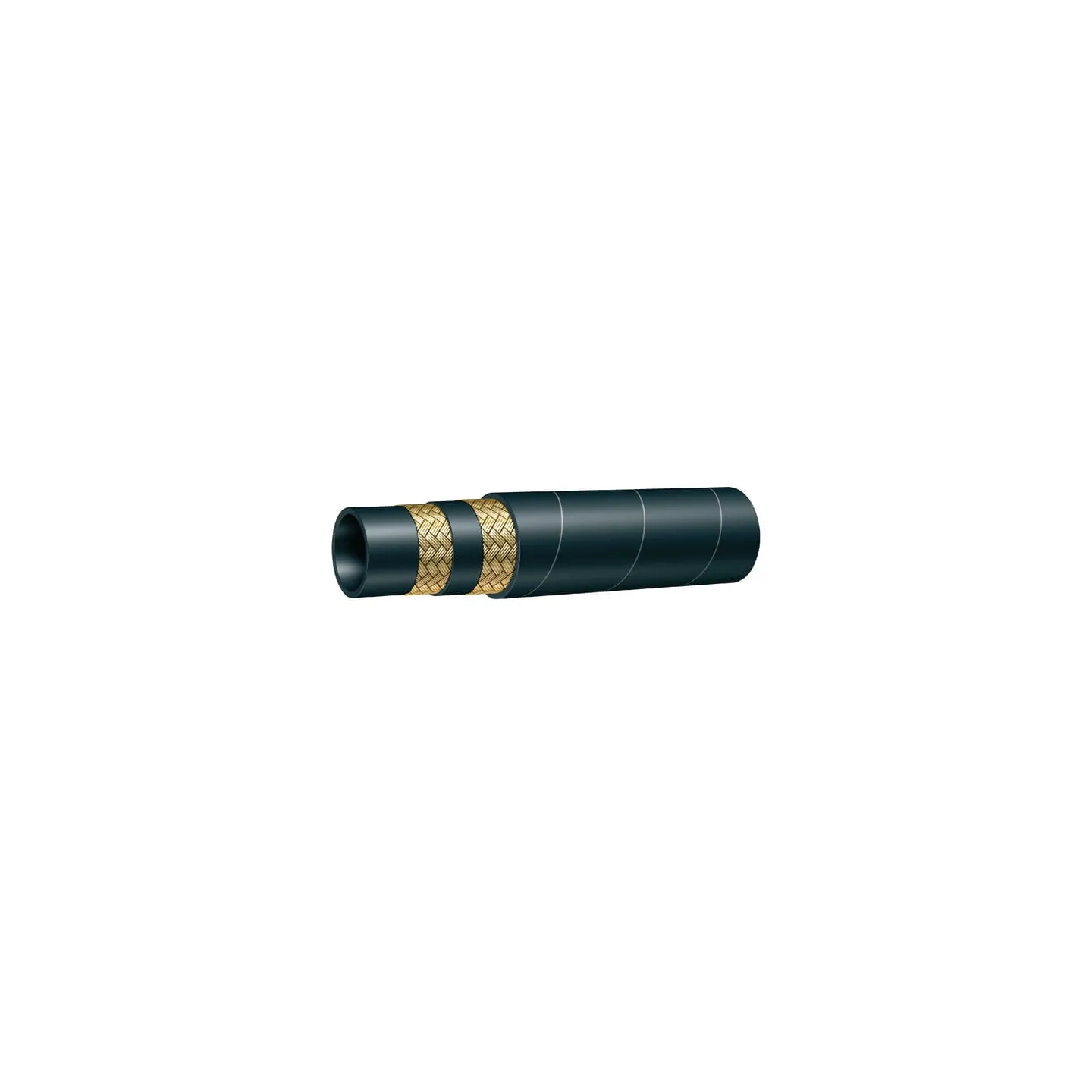

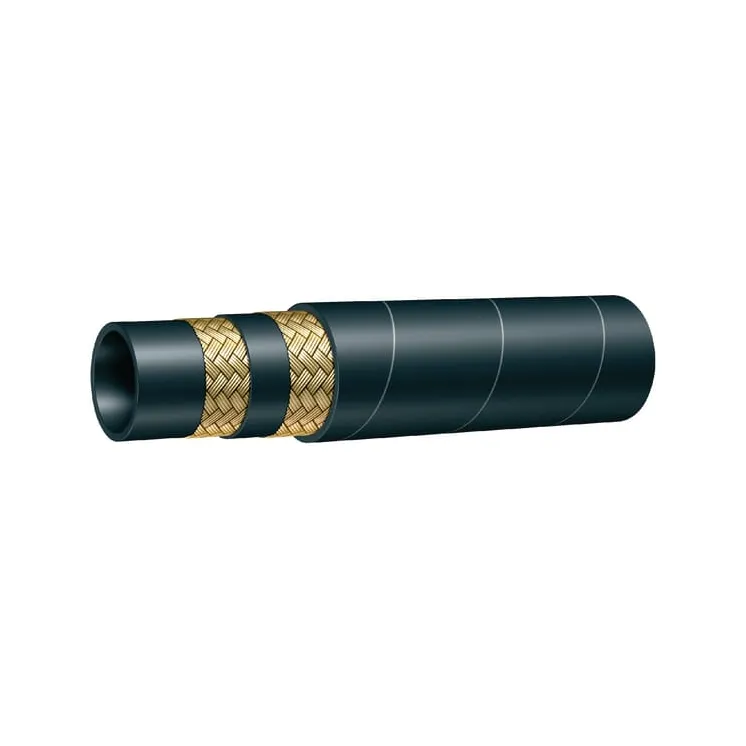

Hydraulic hose EN857-2SC-DN50 HSKPQ50

Name: Hydraulic hose EN857-2SC-DN50 HSKPQ50
Brand: Alfagomma
SKU: HSKPQ50
Price: 69.47 EUR
Availability: BackOrder

Payment options

€69.47

Tax included

On Request

Hydraulic hose EN857-2SC-DN50 HSKPQ50 Alfagomma

ON REQUEST

ID: 88696

Description

Part number	HSKPQ50
EAN
Unit	Metre
Qty. Rounding	0.01
Pros	High operating pressure Small bending radius Extremely wear-resistant outer coating (15x vs standard) Outer coating resistant to ozone and oil
Product details	Hydraulic hose rubber compact with 2 braided steel wire layers of high tensile strength Essentially in line with DIN 20022- 2SN / EN857-2SC dimensions HSK-PQ 32 through HSK-PQ 50 must be peeled before use Available by the metre Available on 50-metre reel, up to 1/2" Available on 25-metre reel, up to 3/4" Always consult the latest press dimensions tables, see downloads at the bottom of each web page For longer single-piece lengths, please contact our sales department
Hose inside diameter	2 Inch
Hose inside diameter	50.8 mm
Max working pressure	100 BAR
Material inside	Synthetic rubber
Bend radius	550 mm
Weight	2.55 kg/m
Type	Hydraulic high pressure hose
DN	50 mm
Hose outside diameter	63.9 mm
Burst pressure	400 BAR
Medium	Hydraulic oil
Max working temperature	100 °C
Min working temperature	-40 °C
Material outside	Synthetic rubber
Reinforcement type	Braid
Reinforcement number of plies	2
Reinforcement material	Steel
Number of plies	2
EN standard	857 2SC
Approval	MSHA
