Hydraulic hose EN857-2SC-DN20 HSKPQ20 HSK20

Name: Hydraulic hose EN857-2SC-DN20 HSKPQ20 HSK20
Brand: Alfagomma
SKU: HSKPQ20
Price: 14.51 EUR
Availability: BackOrder

Payment options

€14.51

Tax included

On Request

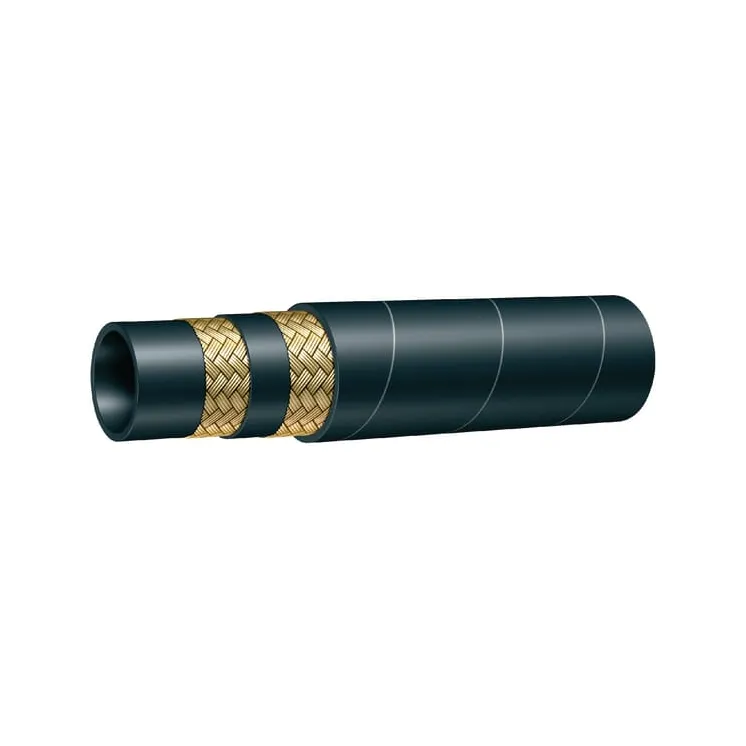

Hydraulic hose EN857-2SC-DN20 HSKPQ20 Alfagomma HSK20

ON REQUEST

ID: 88716

Description

Part number	HSKPQ20
EAN
Unit	Metre
Qty. Rounding	0.01
Pros	High operating pressure Small bending radius Extremely wear-resistant outer coating (15x vs standard) Outer coating resistant to ozone and oil
Product details	Hydraulic hose rubber compact with 2 braided steel wire layers of high tensile strength Essentially in line with DIN 20022- 2SN / EN857-2SC dimensions HSK-PQ 32 through HSK-PQ 50 must be peeled before use Available by the metre Available on 50-metre reel, up to 1/2" Available on 25-metre reel, up to 3/4" Always consult the latest press dimensions tables, see downloads at the bottom of each web page For longer single-piece lengths, please contact our sales department
Hose inside diameter	3/4 Inch
Hose inside diameter	19 mm
Max working pressure	240 BAR
Material inside	Synthetic rubber
Bend radius	121 mm
Weight	0.79 kg/m
Type	Hydraulic high pressure hose
DN	20 mm
Hose outside diameter	27.6 mm
Burst pressure	960 BAR
Medium	Hydraulic oil
Max working temperature	100 °C
Min working temperature	-40 °C
Material outside	Synthetic rubber
Reinforcement type	Braid
Reinforcement number of plies	2
Reinforcement material	Steel
Number of plies	2
EN standard	857 2SC
Approval	MSHA
Additional info	*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
