Hydraulic hose High Temp DN16 HT2SN16 TT2SN16

Name: Hydraulic hose High Temp DN16 HT2SN16 TT2SN16
Brand: Alfagomma
SKU: HT2SN16
Price: 31.69 EUR
Availability: InStock

Payment options

€31.69

Tax included

4-5 Working days

Hydraulic hose High Temp DN16 HT2SN16 Alfagomma TT2SN16

IN WAREHOUSE

ID: 88734

Description

Product Details

Data sheet

Security policy
100% Secure payments

Delivery policy
Insured worldwide delivery

Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.

Part number	HT2SN16
EAN
Unit	Metre
Qty. Rounding	0.01
Pros	High temperature range Wear-resistant outer coating

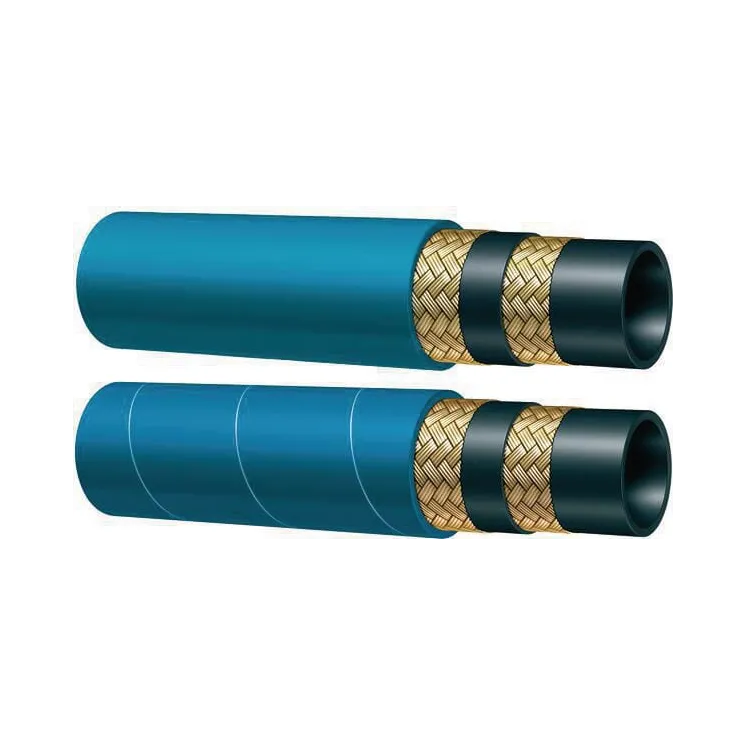

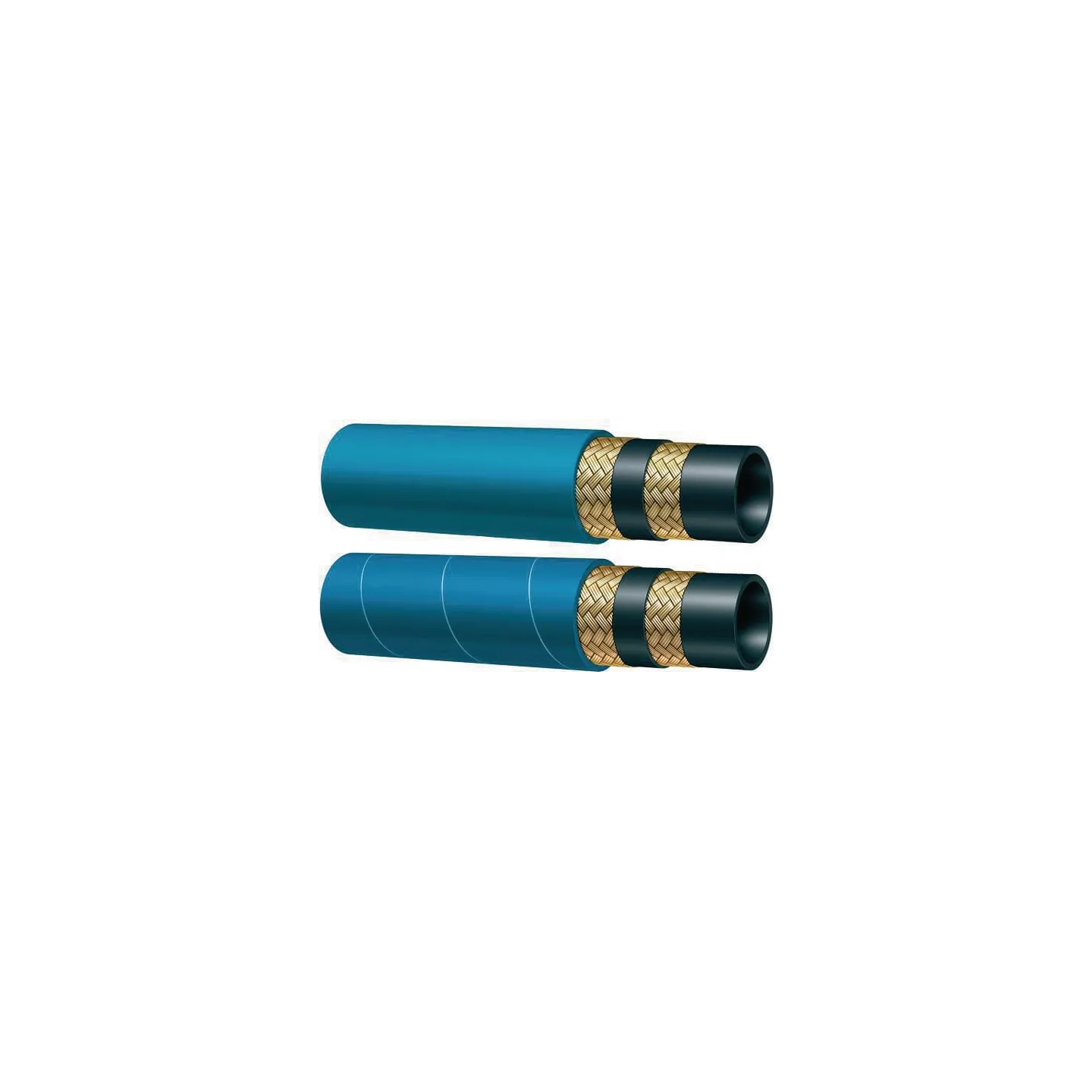

Product details	Hydraulic hose rubber with 2 braided steel inlays with high tensile strength High temperature resistant hose Peel hose before pressing Blue smooth outer coating up to 5/8" Blue wrapped textile print from 3/4" Hydraulic systems operating in the temperature range: -40°C +150°C Air systems: max. 85°C up to 5/8", from 3/4" up to 110°C Not recommended for steam Different available lengths SAE 100R2AT EN 853 2SN ISO 1436-1 Always consult the latest press dimensions tables, see downloads at the bottom of each web page
Hose inside diameter	5/8 Inch
Hose inside diameter	16 mm
Max working pressure	250 BAR
Material inside	Synthetic rubber
Bend radius	200 mm
Weight	0.689 kg/m
Type	Hydraulic high pressure hose
DN	16 mm
Hose outside diameter	24.5 mm
Hose outside diameter	0.96 Inch
Max working pressure	3630 lbf/in²
Burst pressure	1000 BAR
Burst pressure	100 MPa
Burst pressure	14500 lbf/in²
Medium	Hydraulic oil
Max working temperature	150 °C
Max. working temperature	300 °F
Min working temperature	-40 °C
Min. working temperature	-40 °F
Material outside	Synthetic rubber
Reinforcement type	Braid
Reinforcement number of plies	2
Reinforcement material	Steel
Number of plies	2
Weight	0.47 lb/ft
Bend radius	7.87 Inch
Norm	SAE 100 R2AT
ISO standard	1436
EN standard	853 2SN
