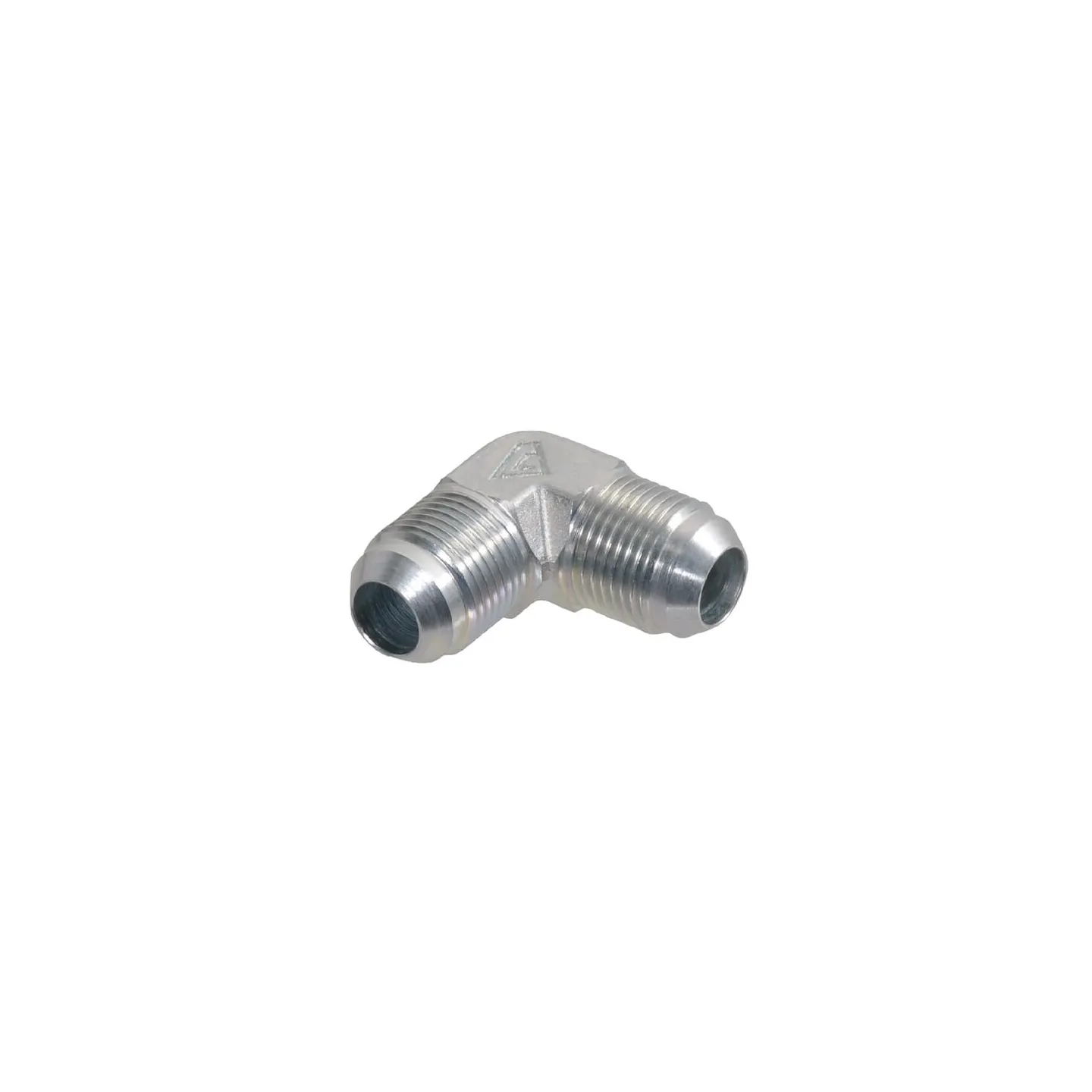

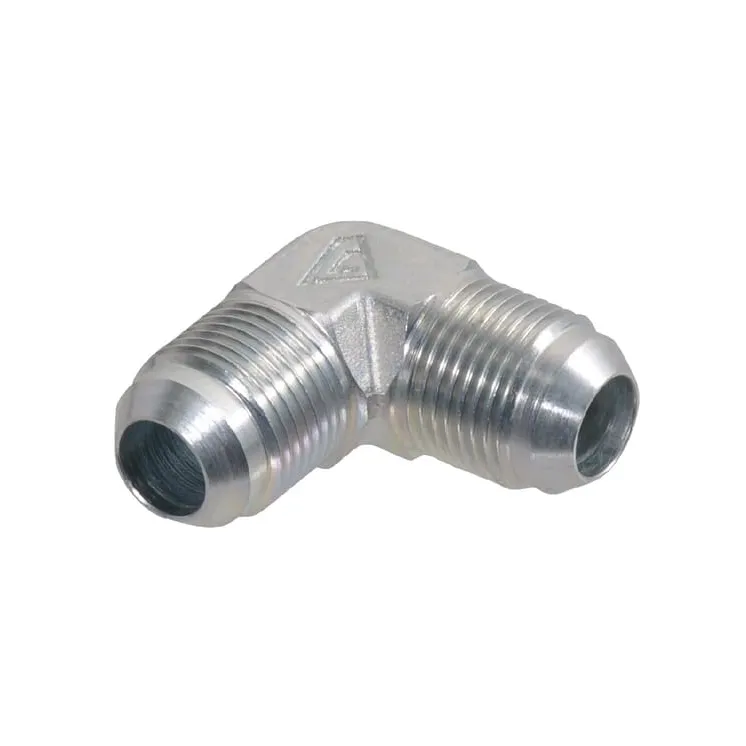

| Part number | K09 | |
|---|---|---|
| EAN | ||
| Unit | Each | |
| Product details | For pipe with 37º (74º) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514. Connection thread on the 37º cone side is UNF in accordance with ANSI | |
| Cone angle | 74 ° | |
| Connection 2, centre to end distance | 26 mm | |
| Connection 2, type | Thread | |
| Connection 2, type - male/female | Male | |
| FConnection no 1 thread diameter | 9/16 Inch | |
| Connection no 1 thread type | JIC | |
| Connection no 1 type - male/female | Male | |
| Connection no 1 type | Thread | |
| Max working pressure | 380 BAR | |
| Pipe diameter | 10 mm | |
| Pipe diameter | 3/8 Inch | |
| Shape | Elbow - 2 connection sides |
