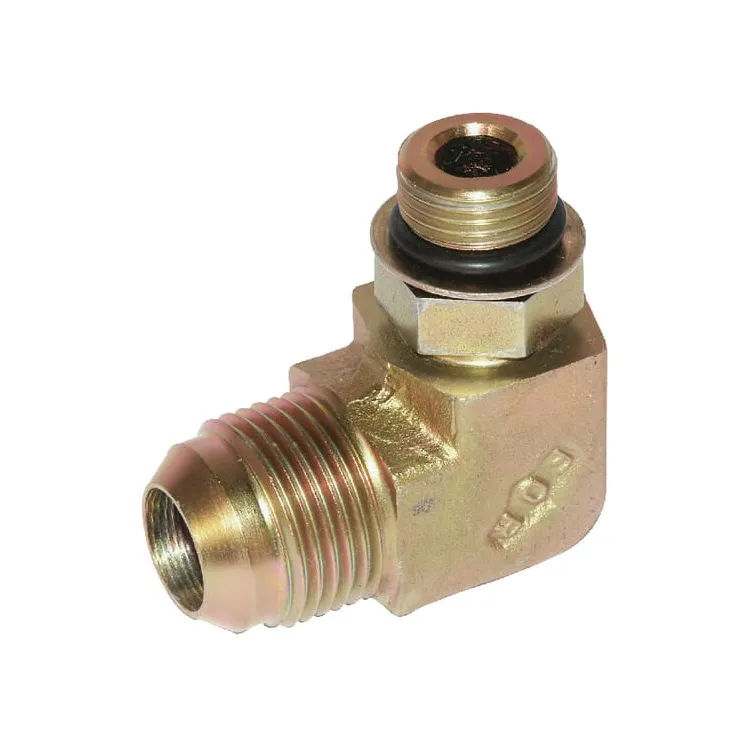

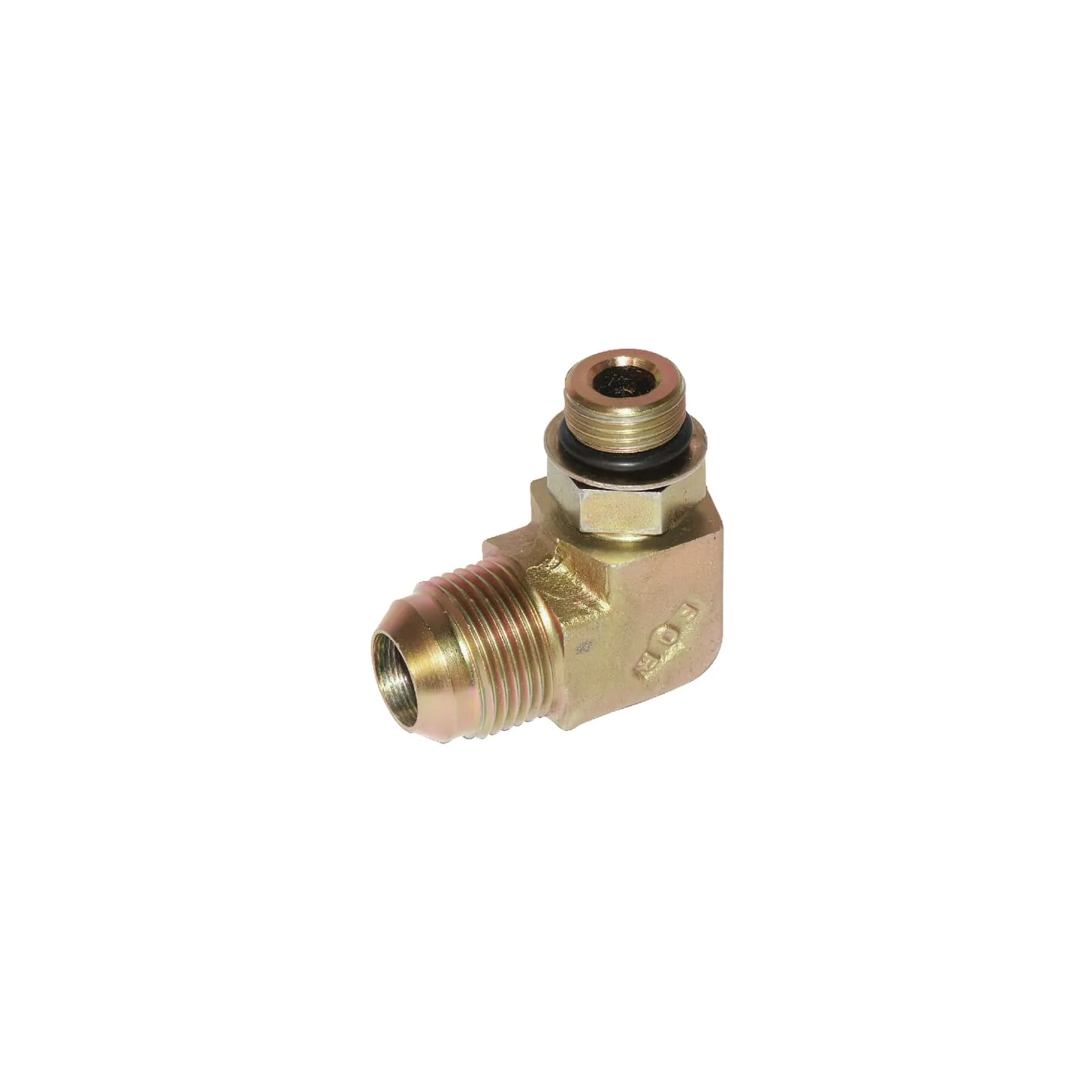

Elbow 9/16 JIC x 3/4 UNF KIU0912

Name: Elbow 9/16 JIC x 3/4 UNF KIU0912
Brand: Alfagomma
SKU: KIU0912
Price: 9.68 EUR
Availability: InStock

Payment options

€9.68

Tax included

4-5 Working days

Elbow 9/16 JIC x 3/4 UNF KIU0912 Alfagomma

IN WAREHOUSE

ID: 88744

Description

Part number	KIU0912
EAN
Unit	Each
Product details	UNF cone 37°
Angle	90 °
Cone angle	74 °
Connection 2, centre to end distance	24 mm
Connection 2, thread diameter	3/4 Inch
Connection 2, thread type	UNF
Connection 2, threads per inch	16
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection no 1 center to end distance	31.5 mm
F1Connection no 1 thread diameter	9/16 Inch
Connection no 1 thread type	JIC
Connection no 1 threads per inch	16
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
Material	Steel
Shape	Elbow - 2 connection sides
Surface treatment	Galvanised
Working pressure	380 BAR
