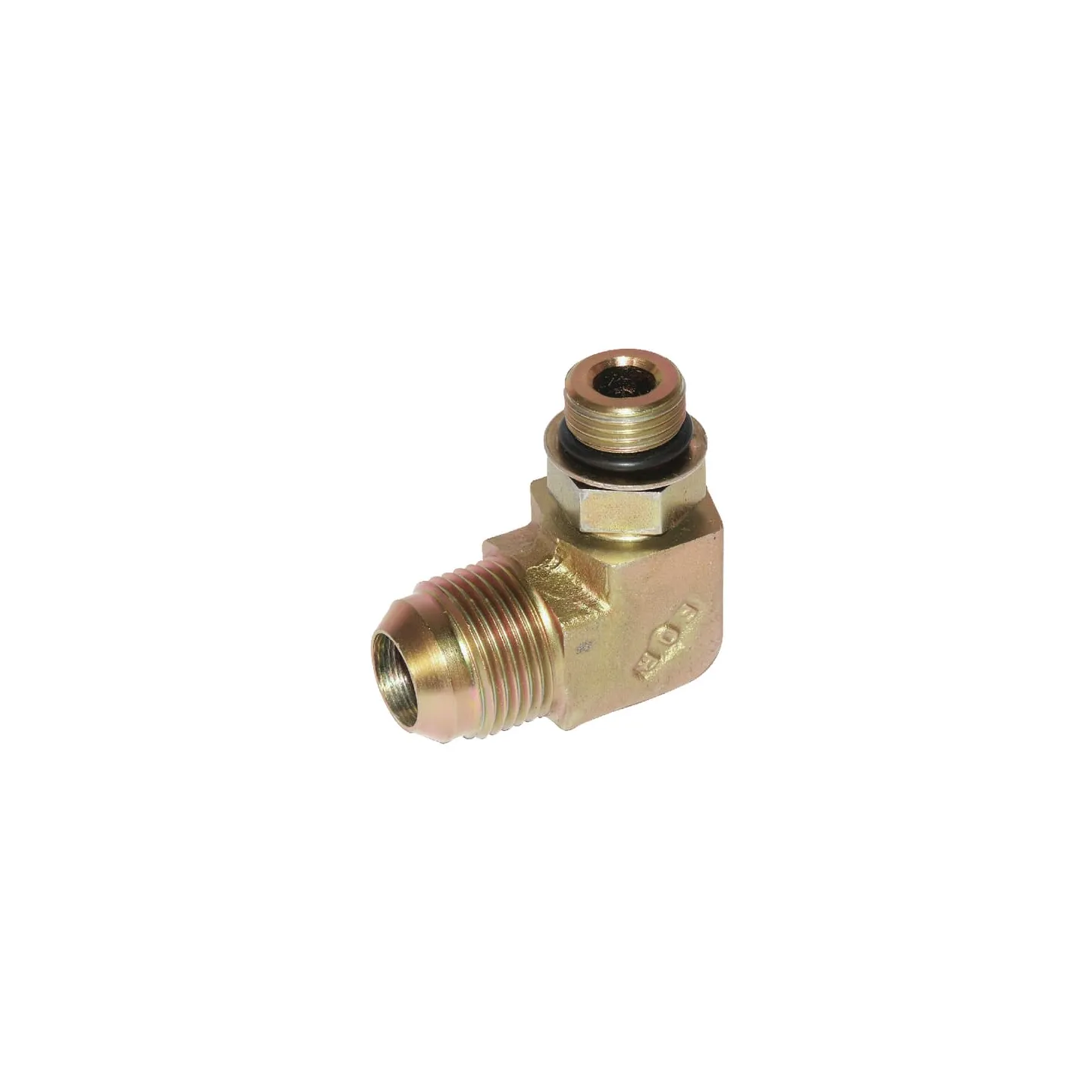

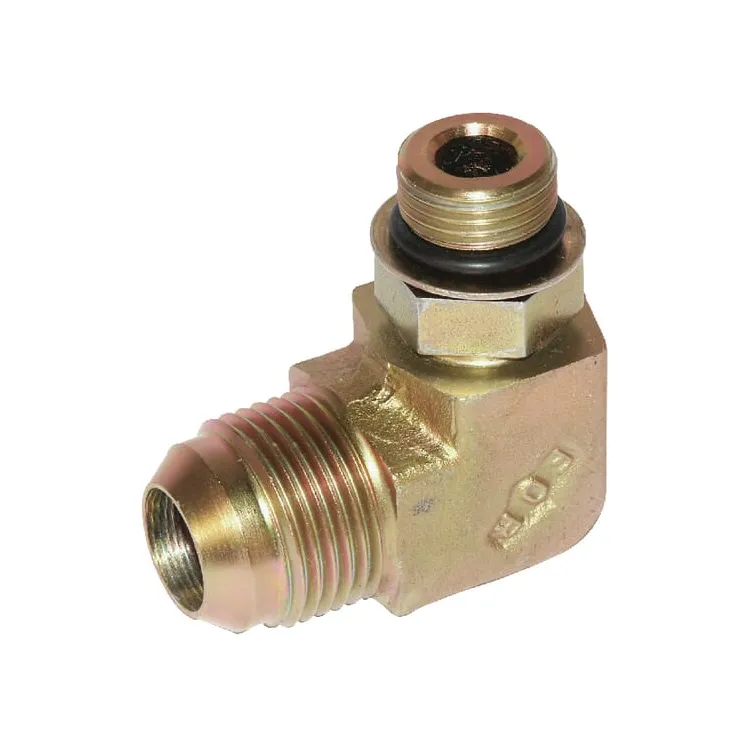

Elbow 1/2 JIC x 1/2 UNF KIU0808 K08SAE

Name: Elbow 1/2 JIC x 1/2 UNF KIU0808 K08SAE
Brand: Alfagomma
SKU: KIU0808
Price: 9.26 EUR
Availability: InStock

Payment options

€9.26

Tax included

4-5 Working days

Elbow 1/2 JIC x 1/2 UNF KIU0808 Alfagomma K08SAE

IN WAREHOUSE

ID: 88747

Description

Part number	KIU0808
EAN
Unit	Each
Product details	UNF cone 37°
Angle	90 °
Cone angle	74 °
Connection 2, centre to end distance	24 mm
Connection 2, thread diameter	1/2 Inch
Connection 2, thread type	UNF
Connection 2, threads per inch	20
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection no 1 center to end distance	27.5 mm
F1Connection no 1 thread diameter	1/2 Inch
Connection no 1 thread type	JIC
Connection no 1 threads per inch	20
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
Material	Steel
Shape	Elbow - 2 connection sides
Surface treatment	Galvanised
Working pressure	380 BAR
